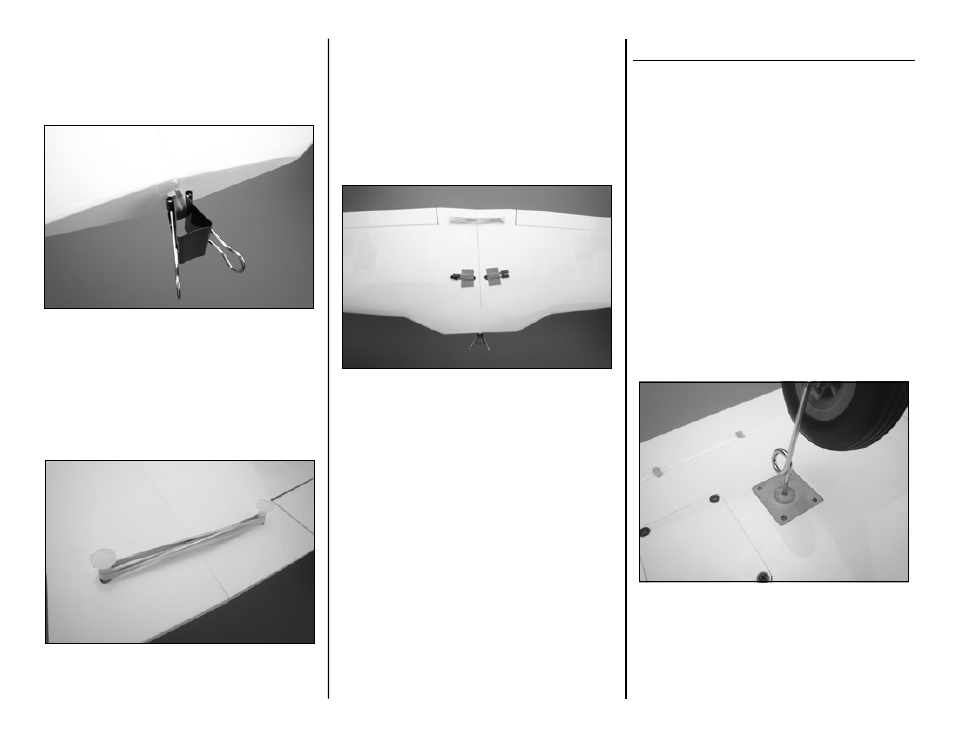

30 Beechcraft Bonanza 15e ARF Assembly Manual
□
Step 7
Check that the wing panels are aligned with each
other and apply a binder clamp to the leading edge
tabs to hold the wing halves together.
□
Step 8
Stretch a rubber band between the left and right
wing bolts on the upper and lower surfaces to hold
the wing panels together.
□
Step 9
Check that the wing panels are aligned to each other
and that the panels are pushed together completely.
Clean any excess epoxy off the wing with paper
towels and rubbing alcohol. Stand the wing vertically
while the epoxy cures so that the weight of the
panels doesn’t cause the joint to spread and alter the
dihedral angle.
□
Step 10
Allow the glue to cure completely then remove the
binder clamp, rubber bands and wing bolts.
Main Landing Gear Installation
Parts Required
Wing Landing gear
#4 x 7/16-inch countersunk wood screws (8)
Tools Required
Pencil #1 Phillips screwdriver
Pin vise 5/64-inch drill bit
Thin CA
□□
Step 1
With the wing inverted on the work table, place the
main landing gear assembly into the cutout in the
wing. The coil in the strut locates to the aft side, and
the wheel inboard of the strut.
