24 Beechcraft Bonanza 15e ARF Assembly Manual
□□

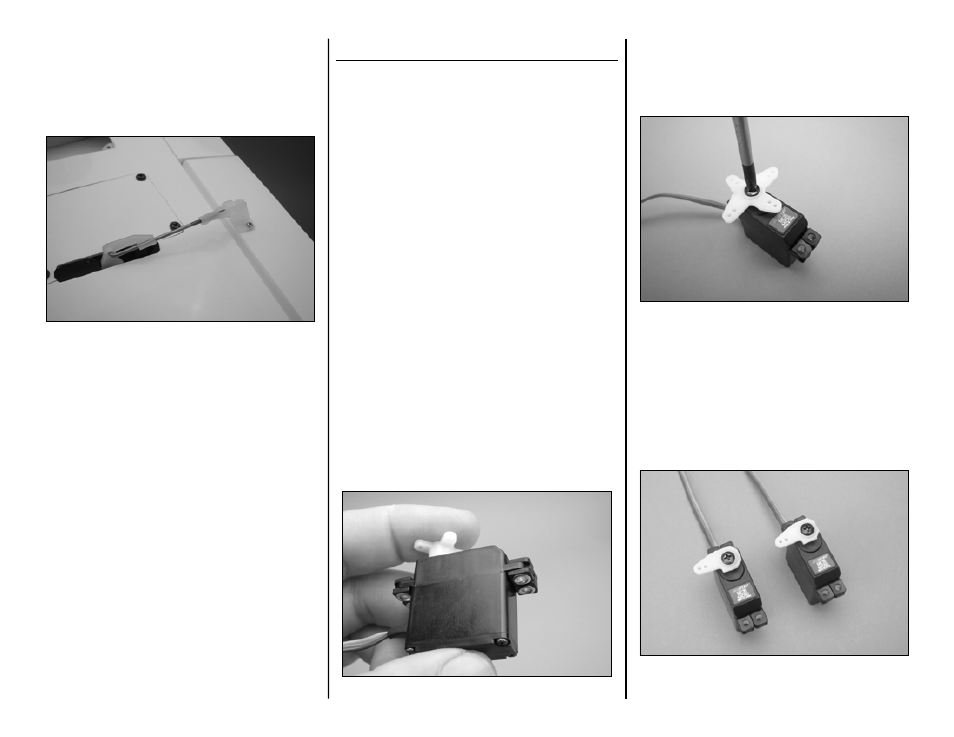

Step 21
Insert the pushrod into the outer hole of the servo
arm and secure it with a snap keeper. Connect the
clevis to the aileron control horn and secure it with
the silicone keeper.
□
Step 22
Repeat steps 1 through 21 to install the aileron servo
and pushrod in the opposite wing panel.
Flap Servo Installation
Parts Required
Wing panels Micro servos (2)
Clevises (2) Snap keepers (2)
Silicone keepers (2) 4-inch steel pushrods (2)
#2 x 3/8-inch wood screws (8)
Flap servo hatches (2)
Servo mounting blocks (4)
6-inch servo extension leads (2)
Tools Required
Pin vise 1/16-inch drill bit
5/64-inch drill bit #1 Phillips screwdriver
Dental floss Low-tack tape
Pencil Ruler
Hobby knife Thin CA
12-minute epoxy Mixing sticks
Mixing cups Felt-tipped pen
Sidecutters Pliers
Scissors
□□
Step 1
Prepare the flap servos by installing the
grommets and bushings. Note that the bushings are
installed from the bottom of the servo.
□□
Step 2
Use a #1 Phillips screwdriver to remove the small
servo arm and install a standard 4-way arm on each
servo.
□□
Step 3
Use sidecutters to remove three of the servo arms,
leaving one long arm. Note that both the left and
right flap servos have the arms oriented in the same
direction.
