47 Beechcraft Bonanza 15e ARF Assembly Manual
□

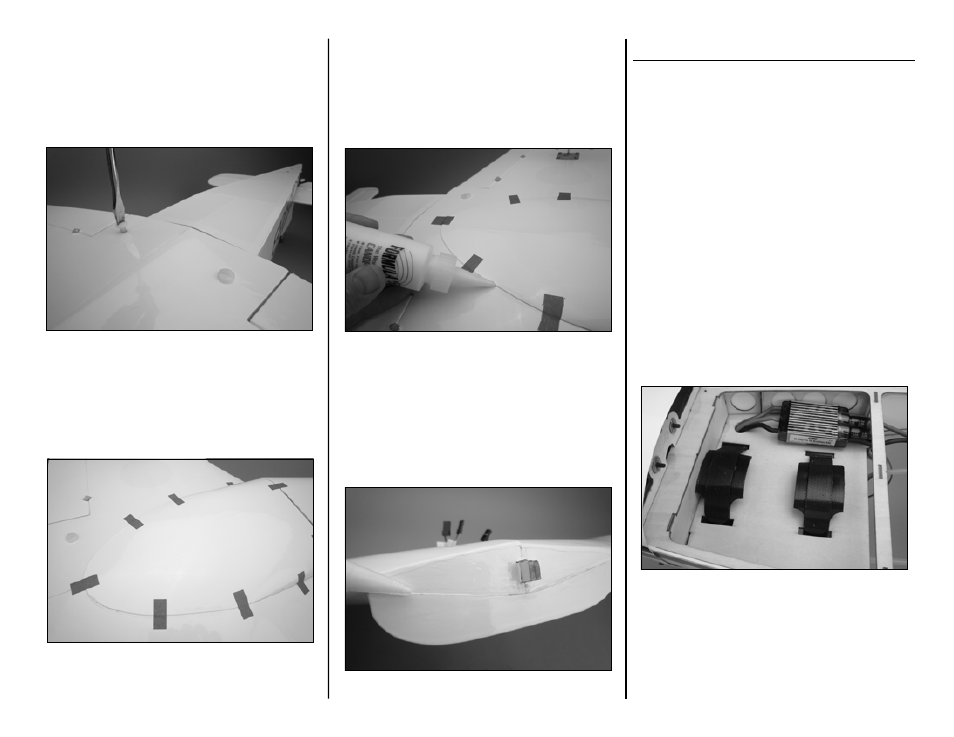

Step 2
Insert the nylon wing bolts into the trailing edge.
Check that no servo leads are trapped between
the wing and fuselage sides, then use a 3/16-inch
straight blade screwdriver to secure the wing.
□
Step 3
Place the belly pan on the wing and align it with the
fuselage sides. Tape it in place with low-tack tape.
□
Step 4
Apply canopy glue around the edge of the belly pan
where it meets the wing surface. Allow the glue to
cure to the handling stage (3 hours) before removing
the tape.
□
Step 5
Remove the wing from the fuselage. Apply canopy
glue to the joint between the belly pan and the wing
leading edge, and to the areas that were under the
tape on the lower surface of the wing.
Battery and Receiver Installation
Parts Required
Fuselage Motor battery
Hook and loop straps (2)
Adhesive-backed hook and loop tape
Tools Required
Scissors Ruler
□
Step 1
Insert the hook and loop straps through the slots in
the floor of the battery tray. Use the natural curve of
the straps to guide them under the tray and up the
opposite slot.
