34 Beechcraft Bonanza 15e ARF Assembly Manual
□

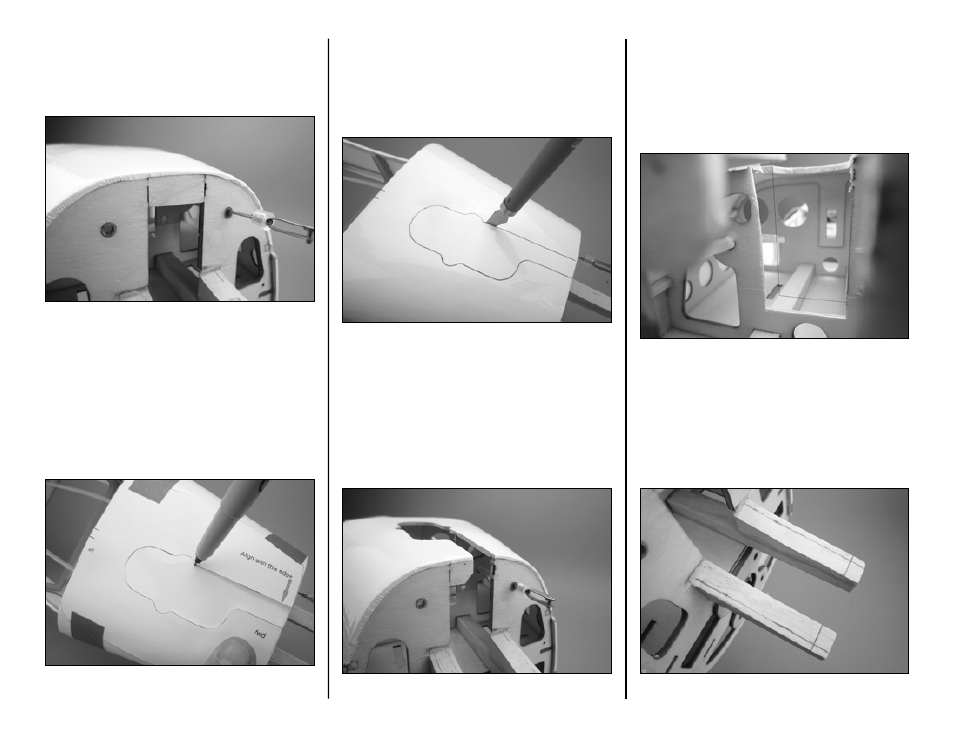

Step 13
There are two laser cut slots in the front of the lower
firewall. The right-hand slot is used to locate the
forward end of the template.
□
Step 14
Align the index marks on the template with the
reference points on the fuselage and tape the
template in place with low-tack tape. Use a felt-
tipped pen to mark the cutout on the fuselage.
□
Step 15
Use a hobby knife to remove the covering and lower
sheeting where marked. Use a razor saw to cut
through the portions of bulkhead that pass under the
cutout area.
□
Step 16
Remove a section of the lower firewall in line with the
cutout on the lower skin and remove the corner of
the remaining piece as shown.
□
Step 17
Trim the first plywood bulkhead behind the firewall
with a hobby knife for clearance of the retracted
nosewheel. Remove approximately 1/4 inch from
the lower and left side of the bulkhead. The lines
indicate the original dimension.
□
Step 18
Use a ruler to measure 3/32 inch inside the outer
edges and 1/4 inch behind the front edge of the
mounting rails. Mark a line with a pencil.
