4 Beechcraft Bonanza 15e ARF Assembly Manual
Rudder and Elevator Servo and Pushrod
Installation
Parts Required
Fuselage Micro servos (2)
Clevis (2) Silicone keeper (2)
Snap keeper (2) Radio
16 1/2-inch steel pushrod (2)
Tools Required
Pin vise 1/16-inch drill bit
5/64-inch drill bit Pencil
Sidecutters Pliers
Hobby knife Ruler
Razor saw Thin CA
#1 Phillips screwdriver
Note: go to Page 11 if installing the optional V-tail.
□

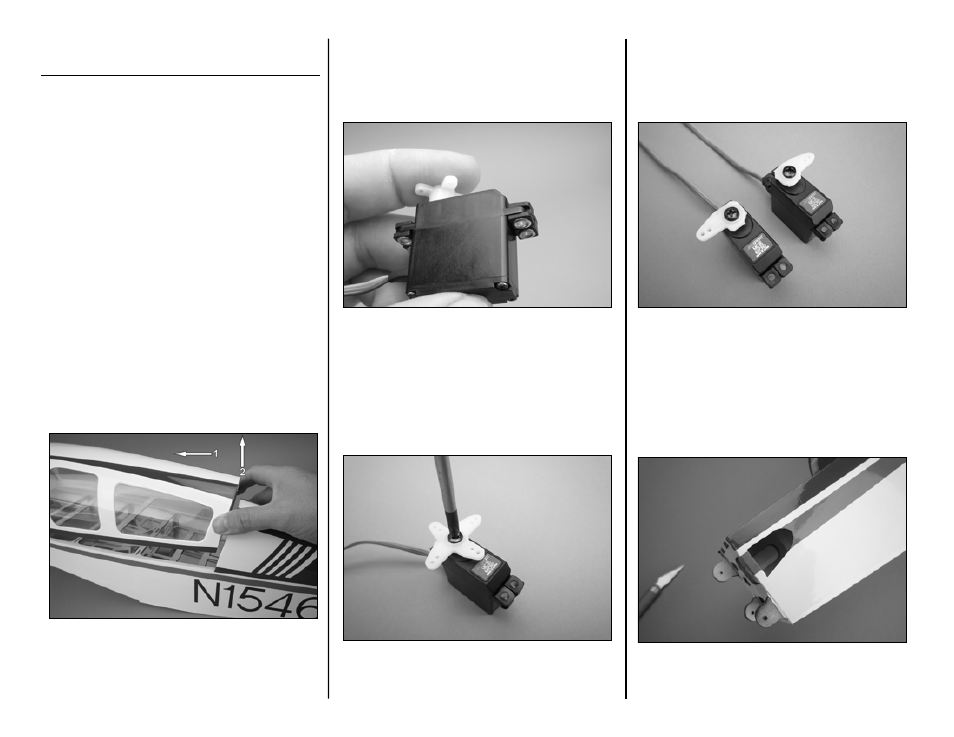

Step 1
Remove the canopy by pushing it forward from the
rear edge to disengage the magnets, then lifting and
pulling aft.
□□
Step 2
Install the grommets and bushings in the rudder and
elevator servos. Note that the bushing is installed
from the bottom of the servo.
□□
Step 3
Use a #1 Phillips screwdriver to remove the small
servo arm and install a standard 4-way arm on each
servo.
□□
Step 4
Use sidecutters to remove three of the servo arms,
leaving one long arm on opposite sides of each
servo.
□
Step 5
Use a hobby knife with a #11 blade to remove the
covering from the rudder pushrod exit on the right
side of the rear fuselage.
