50 Beechcraft Bonanza 15e ARF Assembly Manual
Final Assembly
Parts Required
Fuselage Wing
Wing bolts (2) 3-inch Y-harnesses (3)
Radio 9-inch servo extension
2mm x 5mm machine screw
Tools Required
Felt-tipped pen #1 Phillips screwdriver
Dental floss Low-tack tape
3/16-inch flat blade screwdriver
□

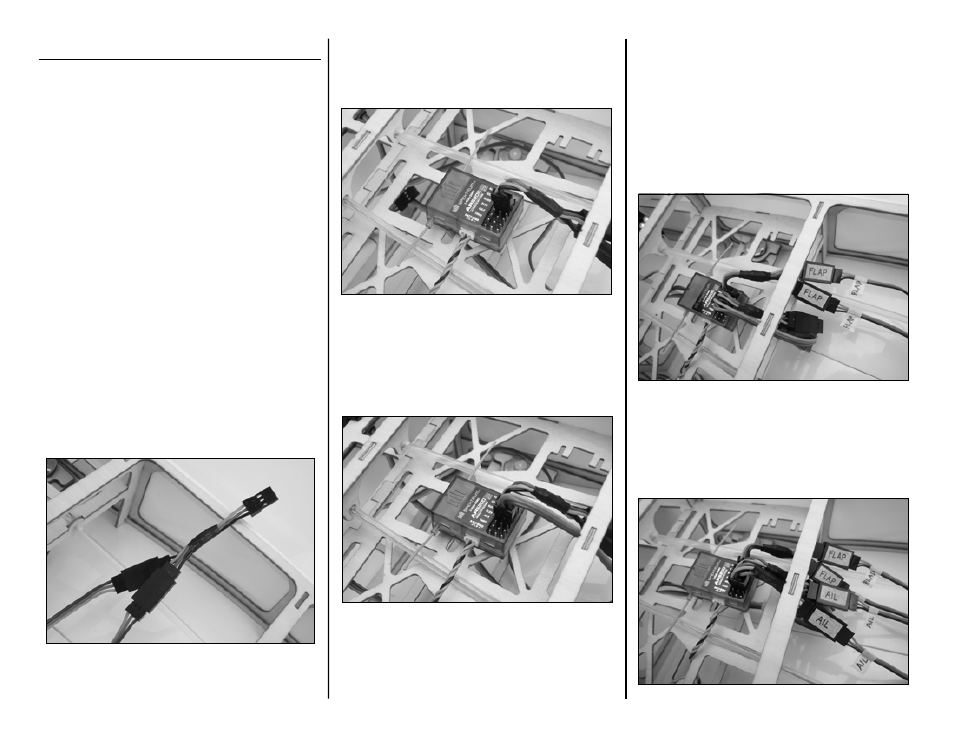

Step 1
Use a 3/16-inch straight blade screwdriver to install
the wing on the fuselage. Make sure that no servo
leads are trapped between the wing and fuselage.
□
Step 2
Connect a 3-inch Y-harness to the rudder and
nosewheel steering servos.
□
Step 3
Plug the Y-harness into the rudder channel of the
receiver.
□
Step 4
Plug the elevator servo lead into the receiver.
□
Step 5
Use low-tack tape and a felt-tipped pen to label the
female plugs of a 3-inch Y-harness and plug it into
the flap channel of the receiver (Aux 1). Plug the flap
servo leads from the wing into the Y-harness.
Note: Because both flap servos have the same
direction of rotation the flap servo leads can be
connected to either plug of the Y-harness.
□
Step 6
Label a 3-inch Y-harness and plug it into the aileron
channel of the receiver. Plug the aileron servo leads
from the wing into the Y-harness.
