45 Beechcraft Bonanza 15e ARF Assembly Manual
Optional Aluminum Spinner
Installation
Parts Required
Fuselage Propeller
Cowling Canopy
1 3/4-inch aluminum spinner
Tools Required
10mm wrench 3/32-inch hex wrench
Note: There are two sections to the installation. If
you are upgrading to an aluminum spinner from an
already installed plastic spinner, begin at step 5.
Otherwise, perform steps 1 through 4 to install the
aluminum spinner.
□

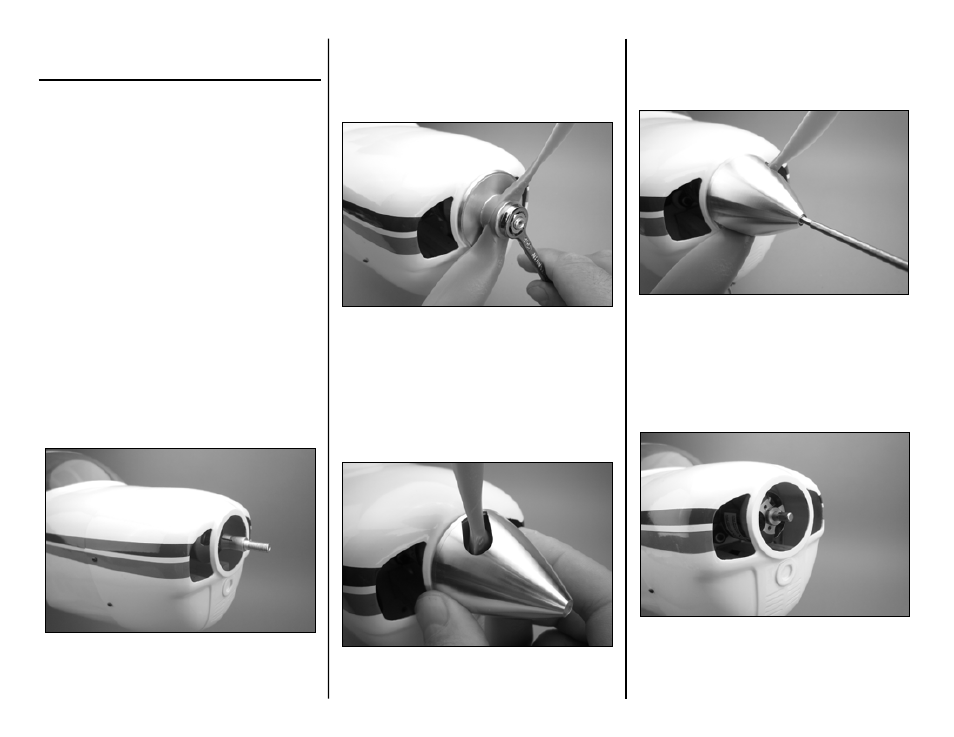

Step 1
Using the backplate and 5mm collet supplied with
the aluminum spinner, perform steps 1 through 17 on
pages 41 through 44 to locate, mount and trim the
cowling.
□
Step 2
Place the spinner backplate, propeller, washer and
nut onto the collet shaft. Use a 10mm wrench to
tighten the nut.
□
Step 3
Set the spinner cone in place against the backplate
and center the cutouts on the propeller blades.
□
Step 4
Insert the spinner cone retaining bolt and tighten it
with a 3/32-inch hex wrench.
□
Step 5
Remove the plastic spinner, propeller, propeller
adapter and silicone spacer.
