31 Beechcraft Bonanza 15e ARF Assembly Manual
□□

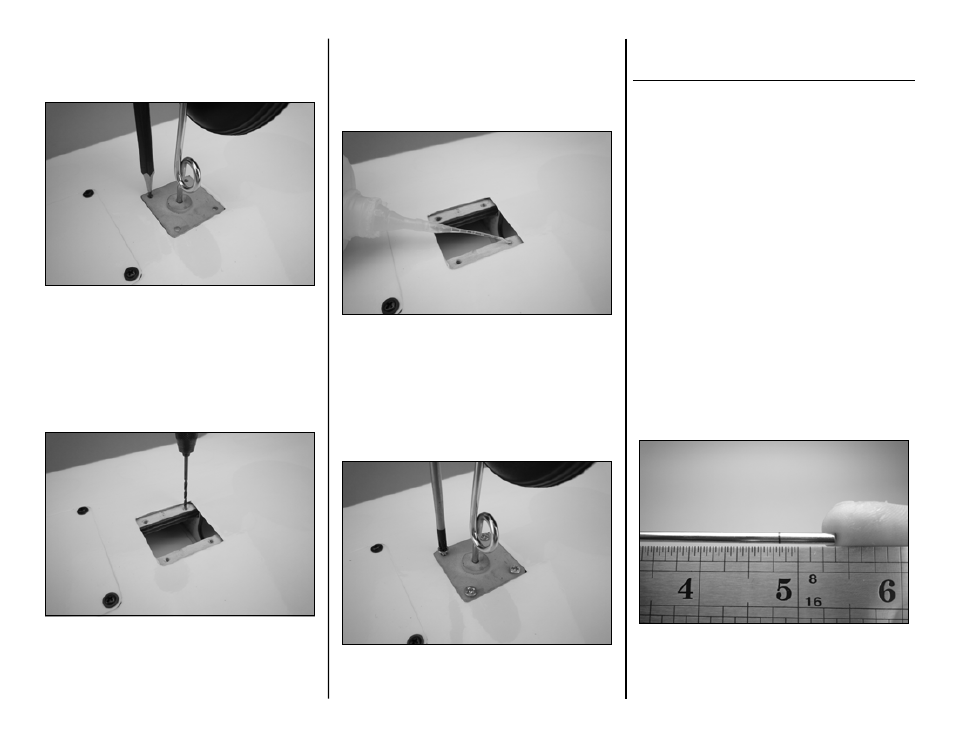

Step 2
Mark the mounting hole locations with a pencil.
□□
Step 3
Use a 5/64-inch drill bit in a pin vise to drill the holes.
□□
Step 4
Apply a drop of thin CA to each hole to strengthen
the wood. Allow the CA to cure completely without
using accelerator.
□□
Step 5
Use a #1 Phillips screwdriver to install the landing
gear with four #4 x 7/16-inch countersunk wood
screws.
Optional Retract Installation
Nose Gear
Parts Required
Fuselage Retractable nose gear
2-inch nosewheel Adjustable axle
#4 x 7/16-inch countersunk wood screws (4)
Tools Required
Ruler Felt-tipped pen
File #1 Phillips screwdriver
1.5mm hex wrench 2.5mm hex wrench
Threadlock Hobby knife
Pin vise 5/64-inch drill bit
Low-tack tape Pliers
Razor saw Thin CA
Rotary tool with cutoff wheel
□
Step 1
Use a ruler to measure 4 13/16 inches from the
mounting surface of the retractable nose gear and
make a mark on the gear leg with a felt-tipped pen.
