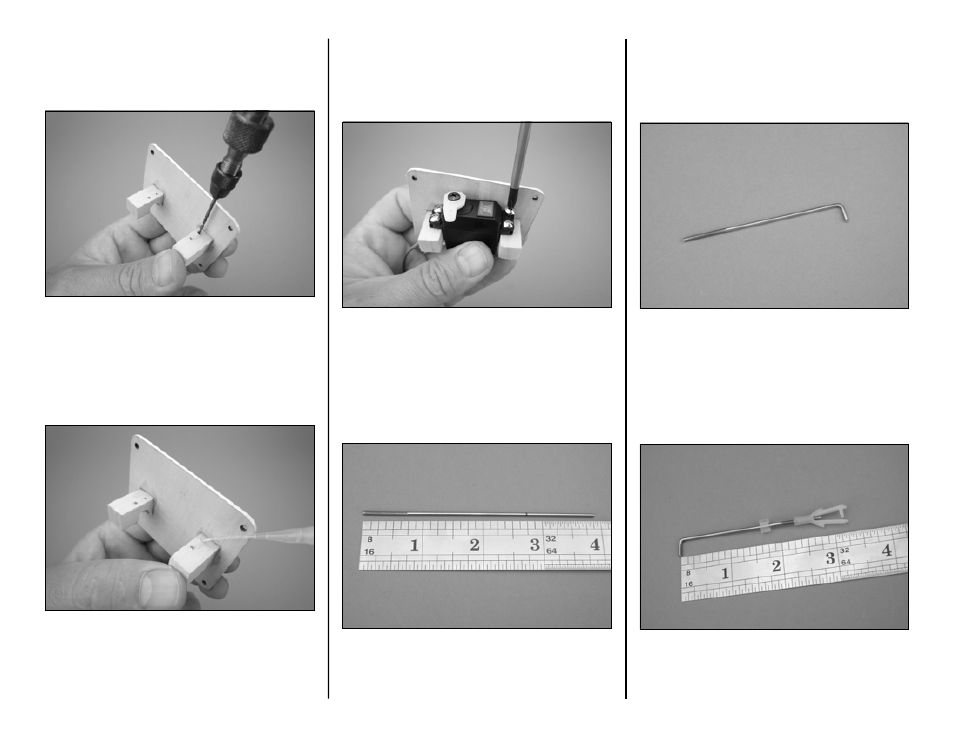

Step 8
Remove the servo. Use a 1/16-inch drill bit in a pin
vise to drill the servo mounting holes.
□□
Step 9
Apply a drop of thin CA to each of the mounting
holes to strengthen the wood. Allow the CA to cure
completely without using accelerator.
□□
Step 10
Use a #1 Phillips screwdriver and the screws
provided with the servo to install the servo to the
flap hatch.
□□
Step 11
Use a ruler to measure 2 3/4-inch from the threaded
end of the 4-inch flap pushrod. Make a mark with a
felt-tipped pen.
□□
Step 11
Use pliers to make a 90-degree bend in the pushrod
at the marked location. Trim the bent portion to a
length of 1/4-inch with sidecutters.
□□
Step 12
Slide a silicone keeper on to the pushrod. Thread on
a clevis so that the pushrod measures 3 1/16-inch
from the bend to the clevis pin.
