14 Beechcraft Bonanza 15e ARF Assembly Manual
Optional V-Tail Installation
Parts Required
Fuselage V-tail
#4 steel washer (2) Tailcone
4-40 x 3/4-inch Allen head machine screw (2)
#2 x 1/4-inch woodscrews (3)
Tools Required
Threadlock 3/32-inch hex wrench
Low-tack tape #1 Phillips screwdriver
Hobby knife with #11 blade
□

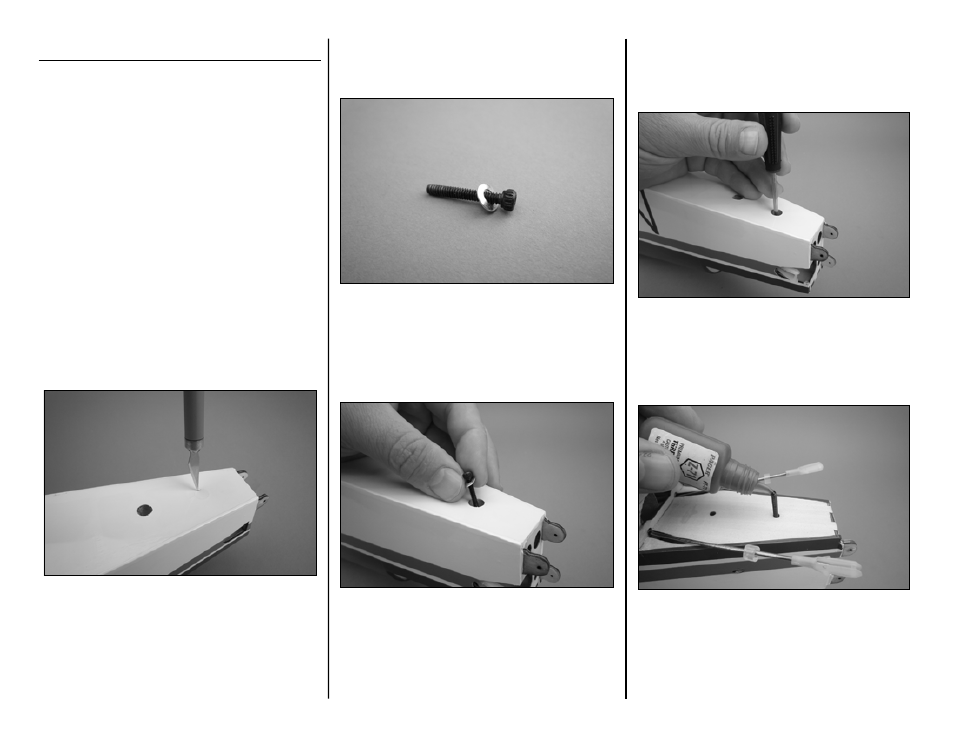

Step 1
Use a hobby knife to remove the covering over the
two guide tubes for the tail retention bolts in the
lower rear fuselage.
□
Step 2
Place a #4 steel washer on each of the 4-40 x
3/4-inch Allen head tail retention screws.
□
Step 3
Invert the fuselage and place a bolt into the rear
mounting hole.
□
Step 4
Engage a 3/32-inch hex wrench in the screw head.
Use the wrench to hold the screw in place while the
fuselage is turned over to install the tail.
□
Step 5
Apply a small amount of threadlock to the end of the
exposed screw.
