2. Hardware Orientation
Module Installation and Configuration
•
In multi-bank configurations, all banks must be directly adjacent to one another,
with no blank panels in between.

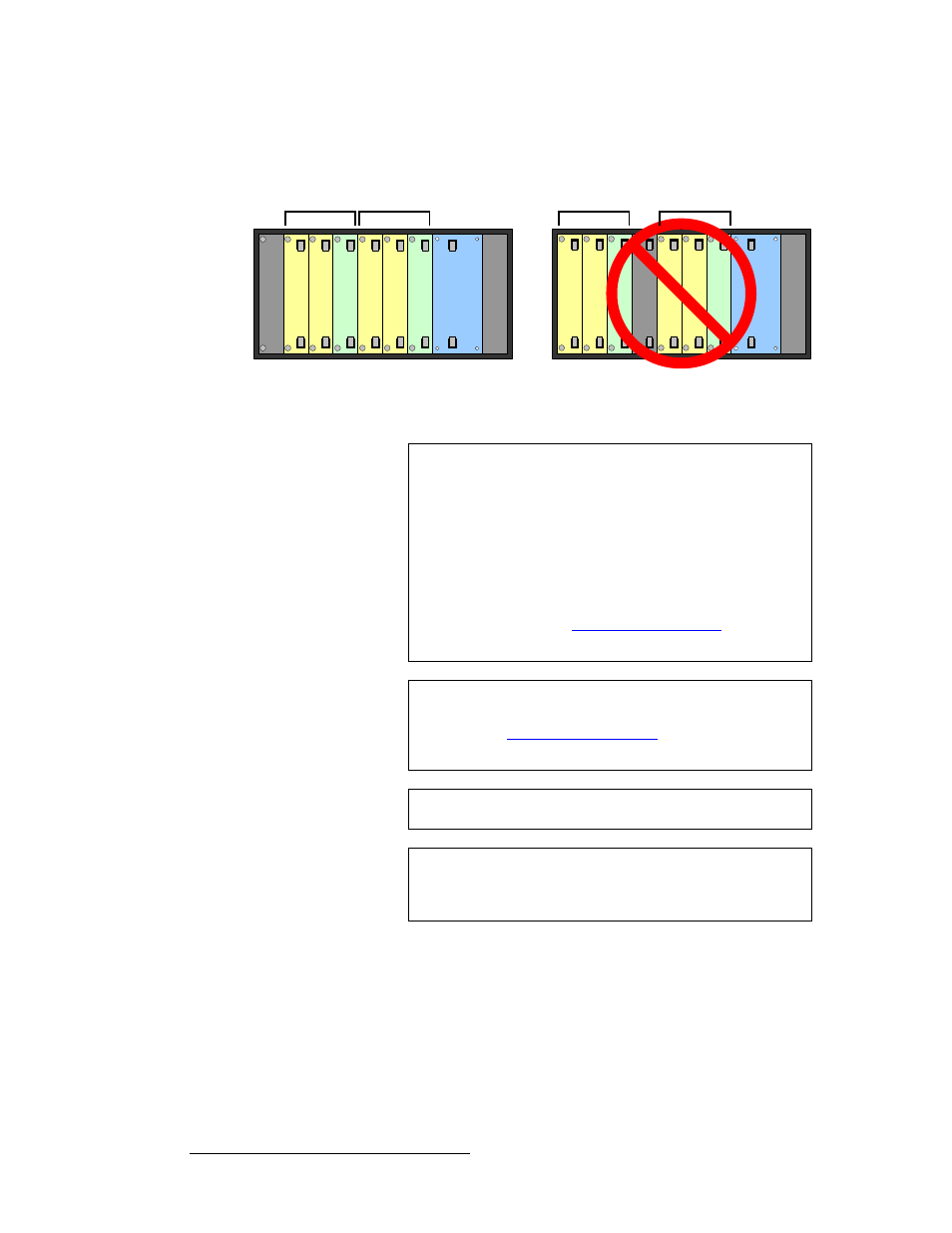

Figure 2-14.
Adjacent banks
Blank
Input
Input
Input
O
u
tput
Sy
s
tem
Powe
r
Input
O
u
tput
Correct Justification
Incorrect Justification
Bank 1
Bank 2
Inp
u
t
Inp
u
t
Inp
u
t
Outp
ut
System
Powe
r
Outp
ut
Inp
u
t
Bla
n
k
Bank 1
Bank 2
Important
With the exception of “spare” modules, if the DX-700
determines that any modules are incorrectly installed (or
missing), a Startup Diagnostic Menu appears which
prompts you to power down the DX-700 and re-configure your
modules properly.
If the above prompt occurs, and provided that a System
Module is properly installed, on the Startup Diagnostic
Menu
you will be able to press the {DX-700 Management}
button, and access a subset of management functions. In
Chapter 4, refer to the “
” section on
page 77 for details.
Important
The DX-700 will not recognize modules that are installed to
the left of a blank panel. They will be treated as spares.
Refer to the “
additional details.
Important
Multi-bank configurations are currently not implemented.
Important
For proper chassis cooling, slots that do not contain
input or output modules must always have blank panels
installed.
