DX-700 Management Menu Tree
auJTMM=j~е~ЦЙгЙен=jÉåì=qêÉÉ

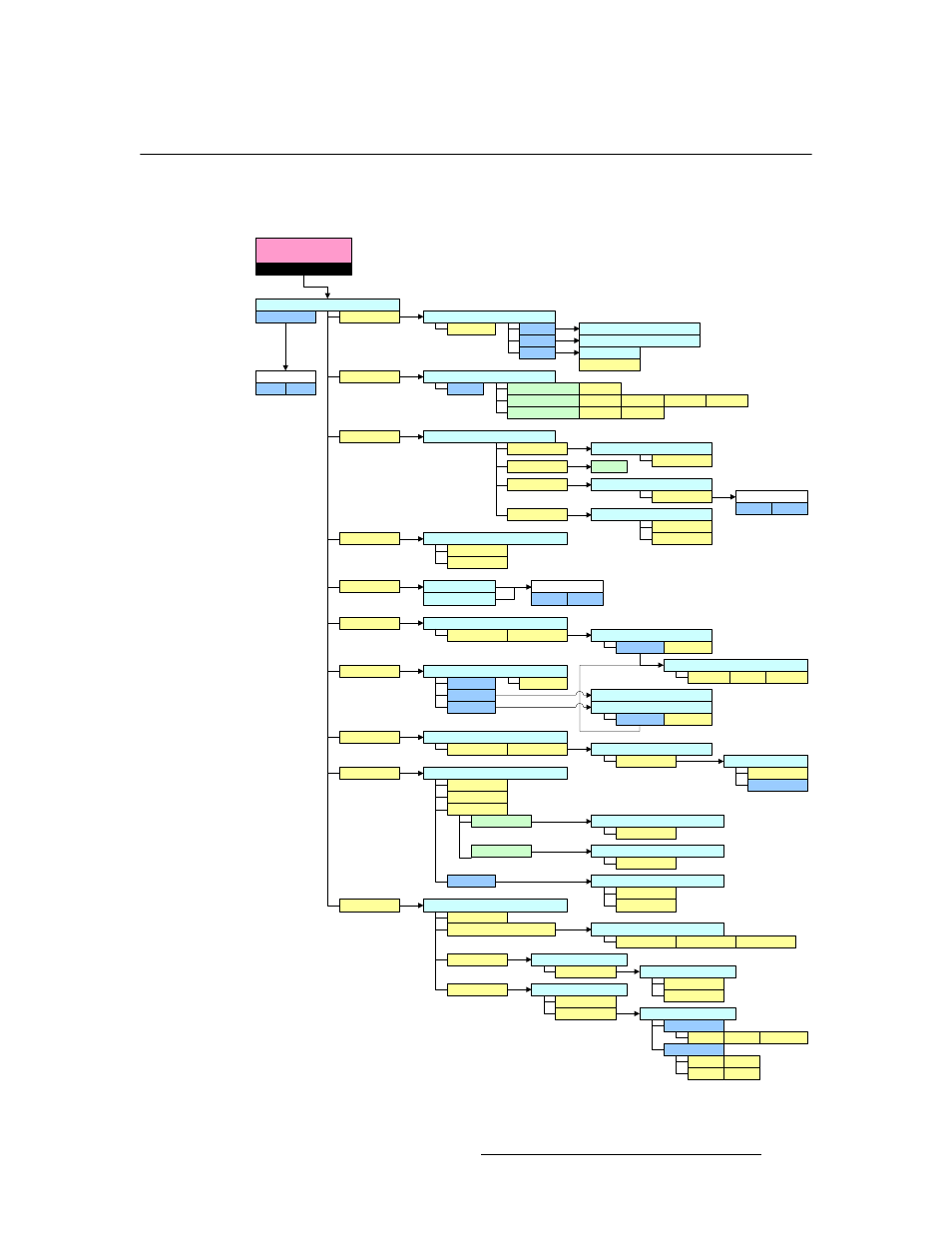

The following figure illustrates the DX-700 Management menu tree:
Figure 4-71. DX-700 Management Menu Tree
DX-700 Management Menu
Monitor Setup
Diagnostic
Test Patterns
Ethernet
DX-700 Status Menu
Monitor Output Menu
DX-700 Diagnostics Menu
Front Panel Display Adjust Menu
Gray Bars
White
Front Panel Test Pattern Menu
Brightness
Calibrate
Status
Bank
Test Pat
Output
Apply Format List
Monitor Test Pattern Menu
Output Selection Menu
Front Panel
Key Test
Test Comm
Key Test Menu
All On
System Tests
OK
Diagnostics System Menu
Test System
No Yes
View Results?
Output Selection Menu
Bank Group
Pattern
Test Pattern Menu
Raster
Ethernet Menu
Ethernet Status Save
System Reset Soft Reset
No Yes
Continue?
EDID
EDID Formats
Apply
EDID Menu
Input Selection Menu
Bank Input Card Input Connection Menu
Input
Patterns Raster
Raster Box Menu
On / Off Width Motion
Front Panel
Save
Genlock Bank Sync Menu
Master
Input
Bank
Sync Source
Patterns
Tiles
Name
Static DHCP
Subnet
Factory Reset
Output Refresh Rate Menu
Freerun Rate
Genlock Input Connector Menu
Input
Master Sync Menu
Expert
DX-700 Management
Home Menu
Test Pattern Status Menu
Tile Power Status Menu
Keyboard
Enter
IP Mode
Refresh
IP Apply
Subnet Apply
No Yes
Continue?
Sync Source
Freerun Rate
Output
Refresh Rate
Expert Menu
Auto Save
Reduced / Minimum Delay Reduced / Minimum Delay Menu
Standard Reduced Minimum
Canvas Bank Selection Menu
Bank Refresh Canvas Size
2048 x 1080
1080 x 2048
Output Timing Timing Select Menu
Bank
Output Output Timing Menu
H Total
Totals/Frame
V Total Frame Rate
Position/Active
H Pos V Pos
H Active V Active
