2. Hardware Orientation
DX-700 Rear Panel
asf=lìíéìí=jçÇìäÉ

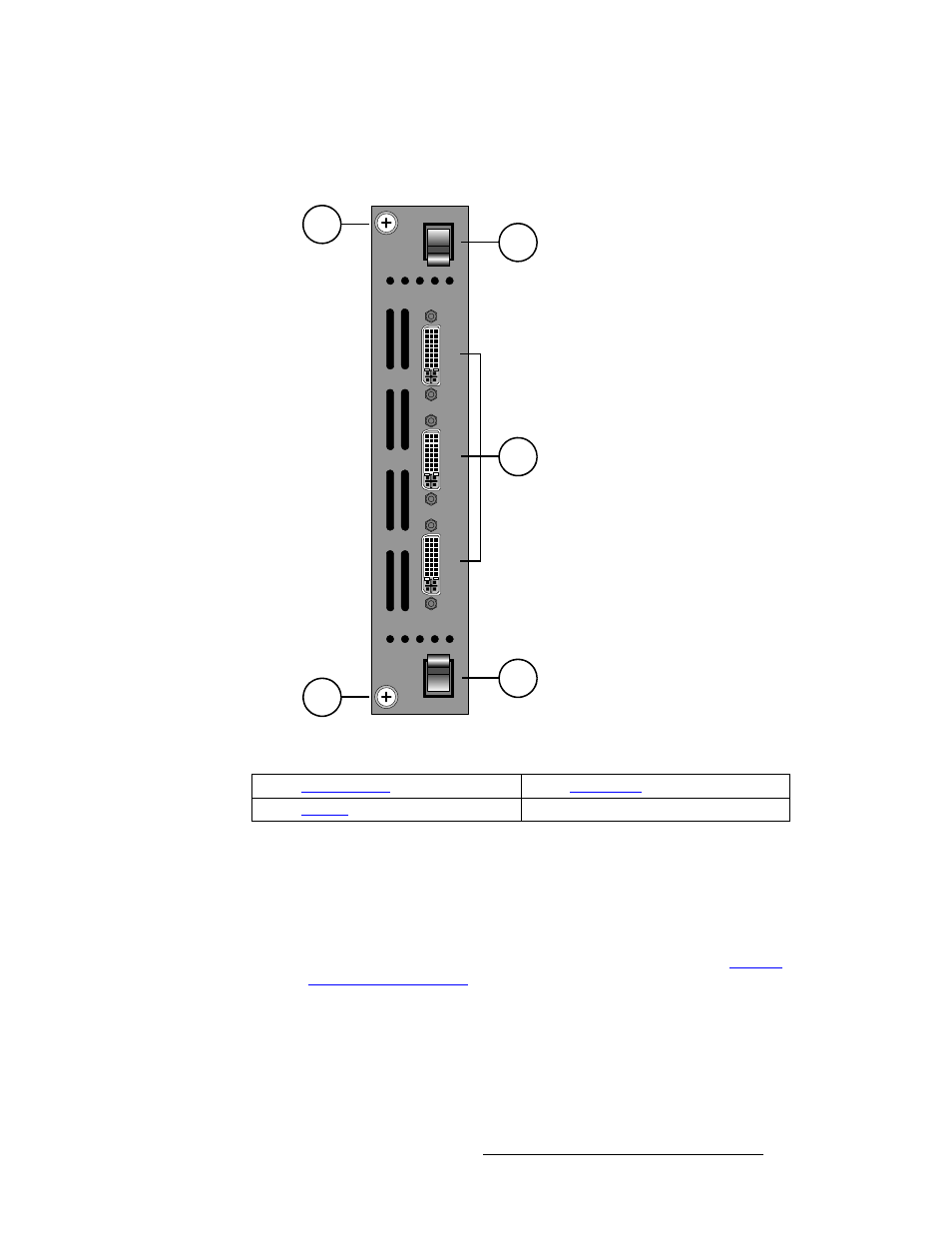

The figure below illustrates the DX-700’s DVI Output Module.
Figure 2-8.
DX-700 DVI Output Module
1)
Thumb Screws
Two captive, spring-loaded Thumb Screws are provided to secure the module
into the DX-700 chassis.
2) Latches
Two Latches are provided to ensure precise module insertion and extraction.
Care is required when inserting or removing modules. Refer to the “
” section on page 57 for instructions.
3) DVI
Outputs
Three DVI-I connectors are provided for DVI Outputs, which connect to existing
(legacy) LED products such as MiPIX and OLite 612. Each output can drive one
attached display from any portion of a selected source image. Each output is
