^K==péÉÅáÑáÅ~нбзел
Pinouts
aju=`зееЙЕнзк

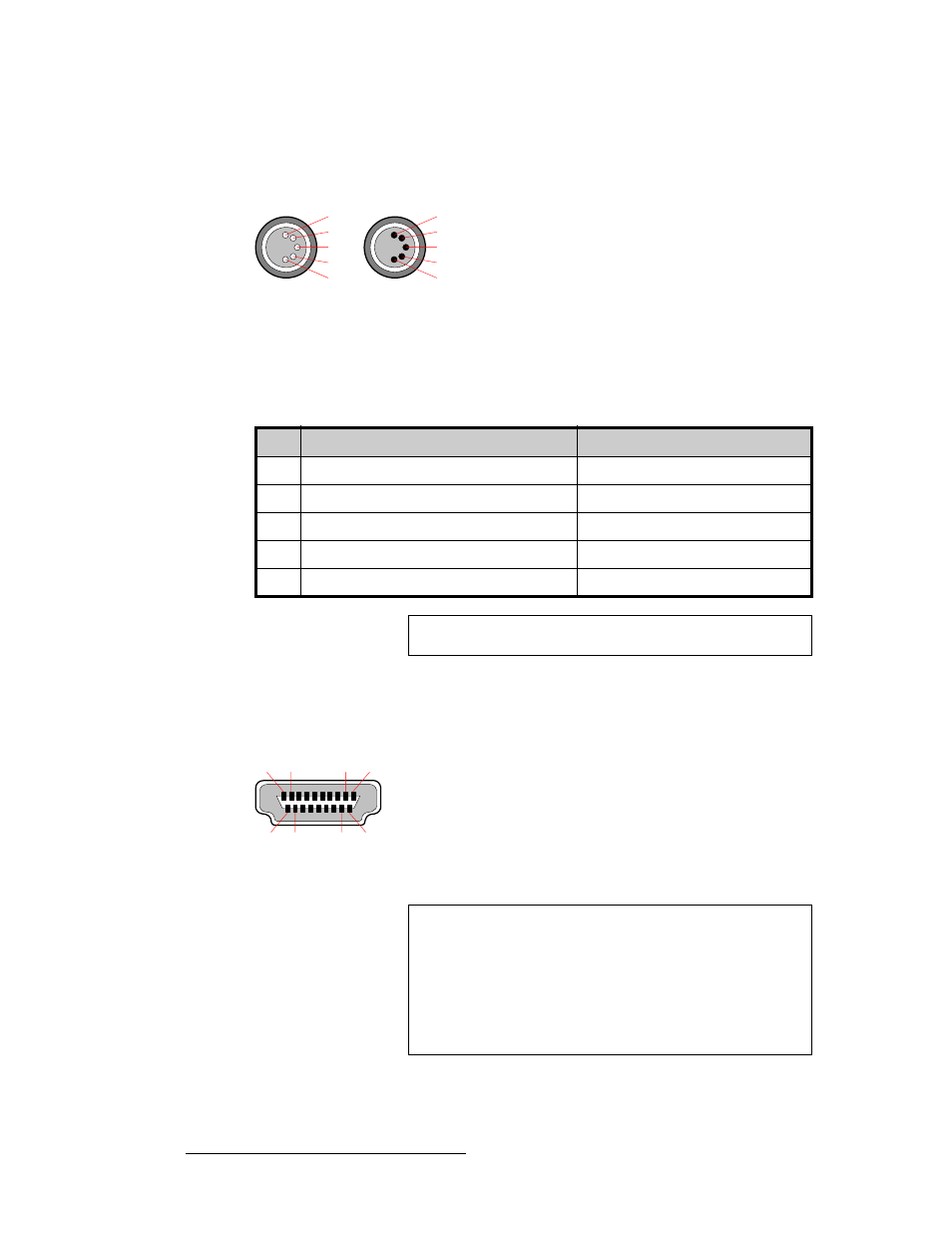

The figure below illustrates the DMX connector.
Figure A-6. DMX connector, view from chassis side
The table below lists DMX connector pinouts.
kkf=`зееЙЕнзк
The figure below illustrates the proprietary NNI connector.
Figure A-7. Proprietary NNI connector, mating face, using HDMI-type A, male
Table A-6. DMX Connector Pinouts
Pin DMX Signal Description
1 GND Signal Common
2 RXD - Received Data Minus
3 RXD + Received Data Plus
4 Not Used Loop between connectors
5 Not Used Loop between connectors
1
2
3
4
5
Female
5
4
3
2
1
Male
Note DMX control is not currently implemented.
1 3 19 17
2 4 18 16
Warning The HDMI-type connectors on the NNI output module use
proprietary signals and pinouts.
Do not connect the output of an NNI output module to
anything other than the input of a Barco NNI LED tile.
Even though the connector is an HDMI-type connector, it is
not an HDMI signal, and serious damage could result if, for
example, the output was plugged into an HDMI-type monitor.
