5.3 Analog output
819 IC Detector / 820 IC Separation Center
85
5.3 Analog output
Analog output 5 "Output“ (0 … 1 V) of the 819 IC Detector (see Fig. 3) is
used for connecting a recording channel to 830 IC Interface or 771 IC
Compact Interface or from an external recorder or integration system.
The connection from 830 IC Interface and 771 IC Compact Interface is
described in Section 2.3. The polarity of the output signal at the analog
output connectors can be changed at any time under Polarity in the
window 819 IC Detector in «IC Net» (see Section 3.1.2). The switching of
the analog output is as follows:

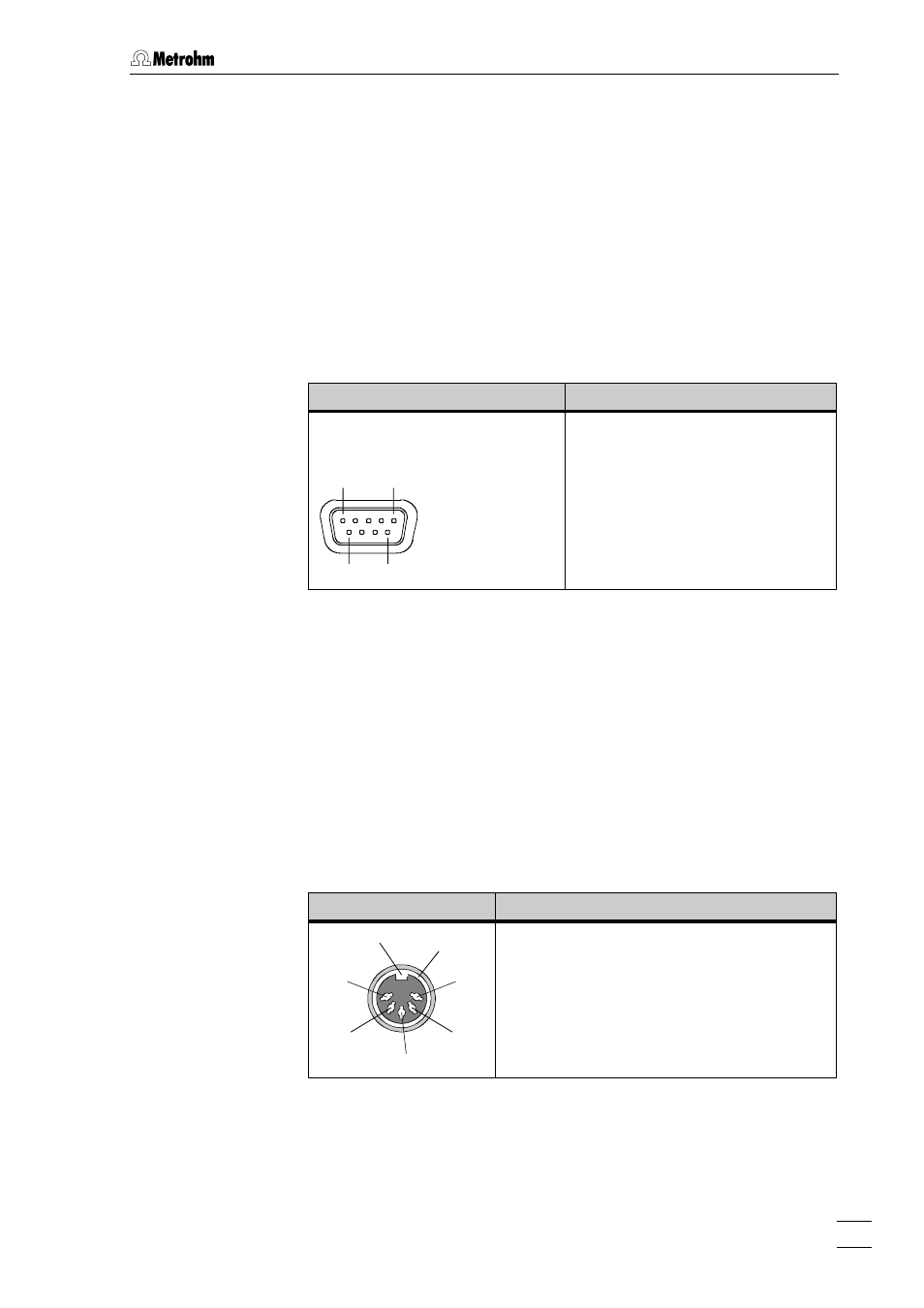

819 IC Detector Pin Voltage
Contact arrangement at
socket "Output" (female)
5 1
9 6
1
6
0 V
Signal 0...1 V
The other pins are not assigned.
5.4 External power supply for
820 IC Separation Center
If the 820 IC Separation Center is operated without the 819 IC Detector,
an external power supply must be attached to connection 25 "External
Power". Power supply and connecting cable must comply with the fol-
lowing conditions:
"External Power" socket Function
1
4 5
3
6
7
2
1 +5 V DC / 0.5 A
2 not assigned
3 +24 V DC / 2 A
4 0 V (digital) *
5 0 V (analog) *
6 Ground
7 Ground
* Pin 4 and pin 5 must
be connected in the
vicinity of the power
source ("zero point of
star")
