INSTALLATION GUIDE RGBW ZONE COLOR CONTROLLER
IG022614-1.0

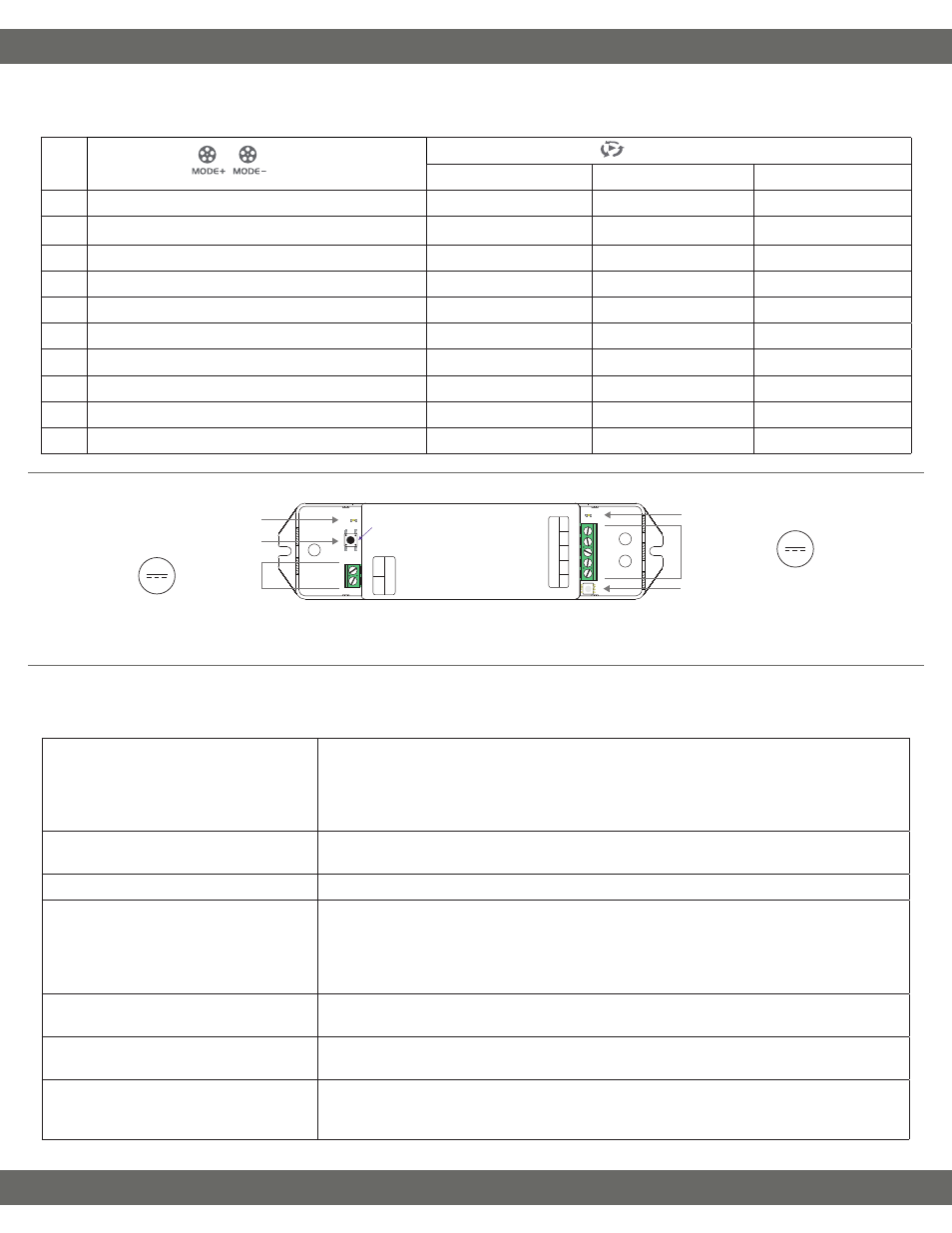

No. Press to Switch Color
Press to Switch Dynamic Mode
Skip Fade Strobe
1 No Color (use when creating custom scene) N/A N/A N/A
2 Red Static Red Red fade in/out Red strobe
3 Green Static Green Green fade in/out Green strobe
4 Blue Static Blue Blue fade in/out Blue strobe
5 Yellow Static Yellow Yellow fade in/out Yellow strobe
6 Purple Static Purple Purple fade in/out Purple strobe
7 Cyan Static Cyan Cyan fade in/out Cyan strobe
8 White Static White White fade in/out White strobe
9 Red, green, blue RGB Skip RGB fade in/out RGB strobe
10 Red, green, blue, yellow, purple, cyan, white 7 Color Skip 7 Color fade in/out 7 color strobe
Zone Remote Operation Continued
Mode Chart
W
B
G
R
V+
Output
DC+
DC−
Power
Address Setting
N U R
Input From
5-24VDC Driver
Learning ID
Running Light
To Low Voltage
LED Load
White Light Indicator
RGB Color Indicator
RGBW Zone Receiver
Wiring Connections
Troubleshooting
Fixture does not illuminate
• See ‘System Diagram’ and installation guides of all components. Ensure the system is wired correctly.
• Verify polarities are correct.
• Ensure a compatible constant voltage dimmable fixture is installed.
• Ensure a compatible constant voltage driver is installed.
• Ensure the driver and fixture have the same voltage specifiations (12V & 12V, or 24V & 24V).
Fixture does not dim
• Ensure a compatible constant voltage dimmable fixture is installed.
• Ensure desired zone is selected before changing brightness.
RGB colors dims but do not turn off • This is normal. RGB colors may be dimmed to lowest brightness if white color is utilized.
Fixture is flashing or flickering
• Verify a compatible constant voltage driver is installed.
• Ensure a compatible constant voltage dimmable fixture is installed.
• Ensure all connections are properly secured.
• Ensure a dynamic mode (skip, fade, strobe) is not running.
• Ensure no more than a single controller is attached to each driver output.
Fixture is slowly flashing
• Ensure driver is not overloaded. An overloaded driver will cause the internal auto-reset of the driver
to trip repeatedly.
Correct colors are not illuminating
• Verify the correct leads are connected to the correct terminals on the receiver.
• Ensure potential leads at opposing end of fixture are not crossed.
Unable to pair remote with receiver
• Ensure the remote is fully charged.
• Read the installation instructions on page 1 thoroughly.
• Reset the remote and receiver(s) to factory settings.
Prior to troubleshooting, ensure a compatible system is installed. Verify compatible fixtures, drivers, controls and additional components were specified
correctly.
Determine the number of low voltage outputs of the driver when installing multiple PWM controllers. No more than one PWM controller can be attached to
a single output of the driver.
