INSTALLATION GUIDE RGBW ZONE COLOR CONTROLLER
2 of 4
IG022614-1.0
Control a single zone
Press zone key 1-8 on the remote. To turn off
zone, press Power.
Control multiple zones
Press desired zones 1-8 continuously. To turn
off multiple zones at once, all zones must be
set to the same color. To do so, press desired
zones 1-8 continuously, choose a color, and
press Power. You can also access Sync Mode
to control multiple zones.

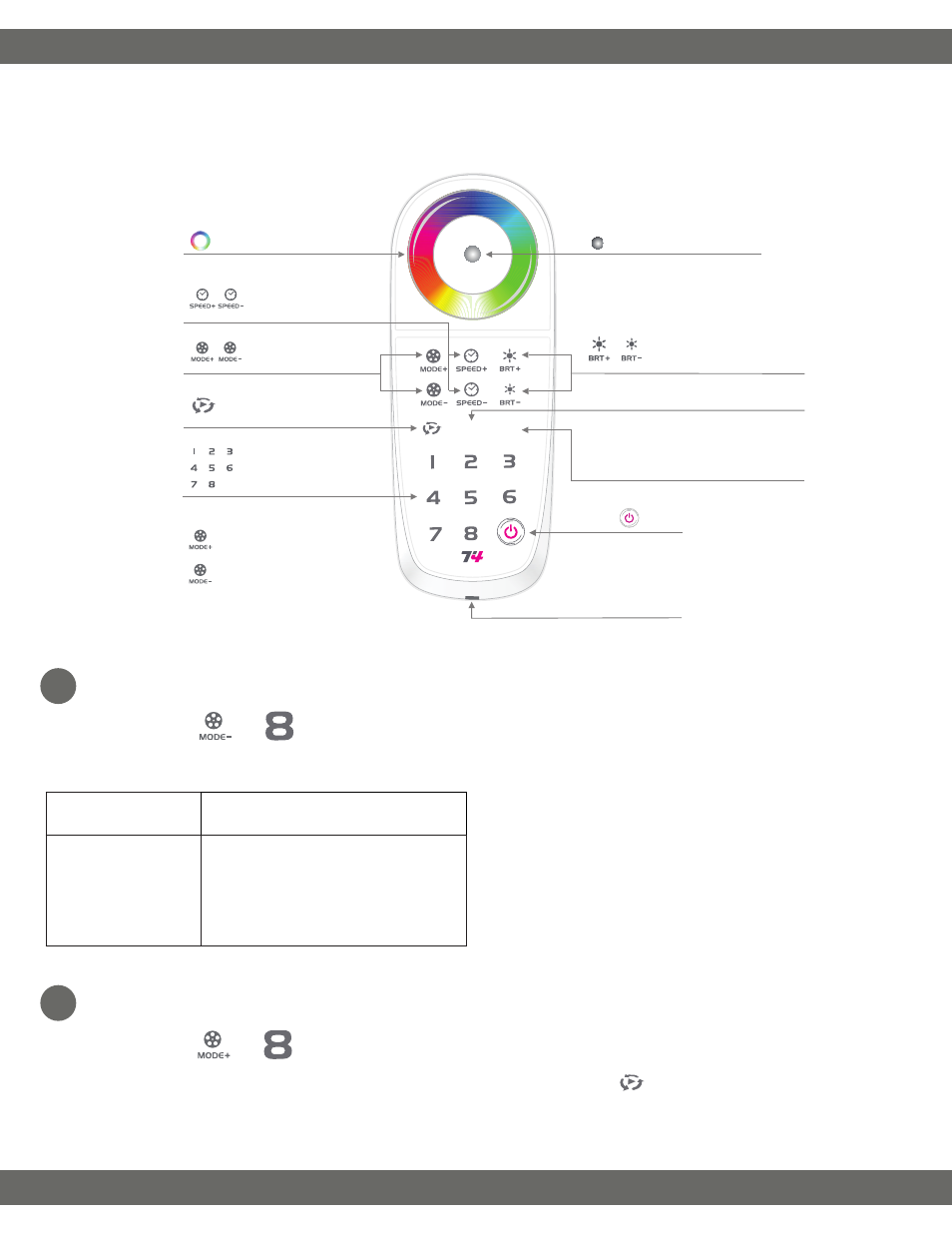

P W
USB Charge Port
Zone Selection
Programming Key
White Light Adjustment
Sync Status Indicator Light
Press to adjust RGB brightness.
RGB Colors cannot be switched off.
(17 total RGB brightness levels).
Press to adjust dynamic mode
speed (8 total speed levels).
Short press to turn white light ON/OFF.
Long press to adjust white light brightness.
P
W
Color Touch Pad
Color Mode Adjustment
Press to adjust color mode.
See ‘Mode Chart’ (10 total).
Press to adjust dynamic mode. See
‘Mode Chart’ (Skip / Fade / Strobe).
Dynamic Mode Adjustment
Press to select zone.
Mini-B USB port. 5VDC Input.
Power
Speed Adjustment
Saves a custom scene. See ‘Custom Scene.’
RGB Brightness Adjustment
*
*
Long press to turn sound ON.
Long press to turn sound OFF.
To access Sync Mode hold and (Mode+ and 8) on the remote
simultaneously for >2 seconds. The sync status indicator light will blink
green 3 times and all receivers will now be synced together.
Zone Mode
(controls each receiver independently)
To access Zone Mode hold and (Mode− and 8) on the remote
simultaneously for >2 seconds. The sync status indicator light will blink
green 3 times and all receivers can now be controlled independently.
Programming Custom Scenes
• Zone Mode - Save 1 custom scene (max 8 colors) across all receivers.
• Sync Mode - Save up to 8 custom scenes (max 8 colors) across all receivers.
To save a custom scene:
1. Enter Programming Mode by long pressing ‘P’ for 2 seconds until the
receiver(s) long beeps.
2. Choose a color for each number key (1-8). Press key ‘1’ and select a color
on the color wheel. You can also select a color with the Mode keys (refer
to the ‘Mode Chart’). To select no color, cycle through the Modes until
‘No Color’ is selected.
3. Press key ‘2’ and select a color. Continue following this pattern until all 8
zone keys have a desired color. See 4a or 4b to complete scene in Zone
or Sync Mode.
4. a) Finish Scene in Zone Mode - Once colors are chosen, short press the
‘P’ key to exit color selection and save the scene. Your scene is now saved
and can be accessed when controlling any receiver by short pressing ‘P.’
b) Finish Scene in Sync Mode - Once colors are chosen, short press the ‘P’
key to exit color selection. Long press key ‘1-8’ to save the scene under
desired key.
Use the Dynamic Mode key to switch to skipping, fading, or strobing.
1
2
Sync Mode
(controls all receivers simultaneously)
Zone Remote Operation
Choose from two control mode types. See diagram below for operation.
1. Zone Mode
2. Sync Mode
