INSTALLATION GUIDE
2 OF 5
DMX WIFI WALL MOUNT ZONE LED CONTROLLER
®
Remote Operation
The DMX controller can also be controlled remotely via WiFi with a
compatible IOS/Android tablet or mobile device using the application
‘EasyColor Pro.’
Save Function
Up to 16 total static colors can be saved, 4 colors per zone. To save a color:
1. Choose a zone to operate in (1, 2, 3, or 4).
2. Select a color to save by using the color wheel or by adjusting each
R, G, B, and W setting.
3. Once the desired color is visible, long press the ‘S’ key until the blue
indicator light on the controller flashes red.
4. Short press 1, 2, 3, or 4 to save the color. LEDs will flash once save is
complete.
5. To achieve your saved color:
a. Choose the zone to operate in (1-4).
b. Short press the ‘S’ key.
c. Short press the number the color was saved in (1-4).

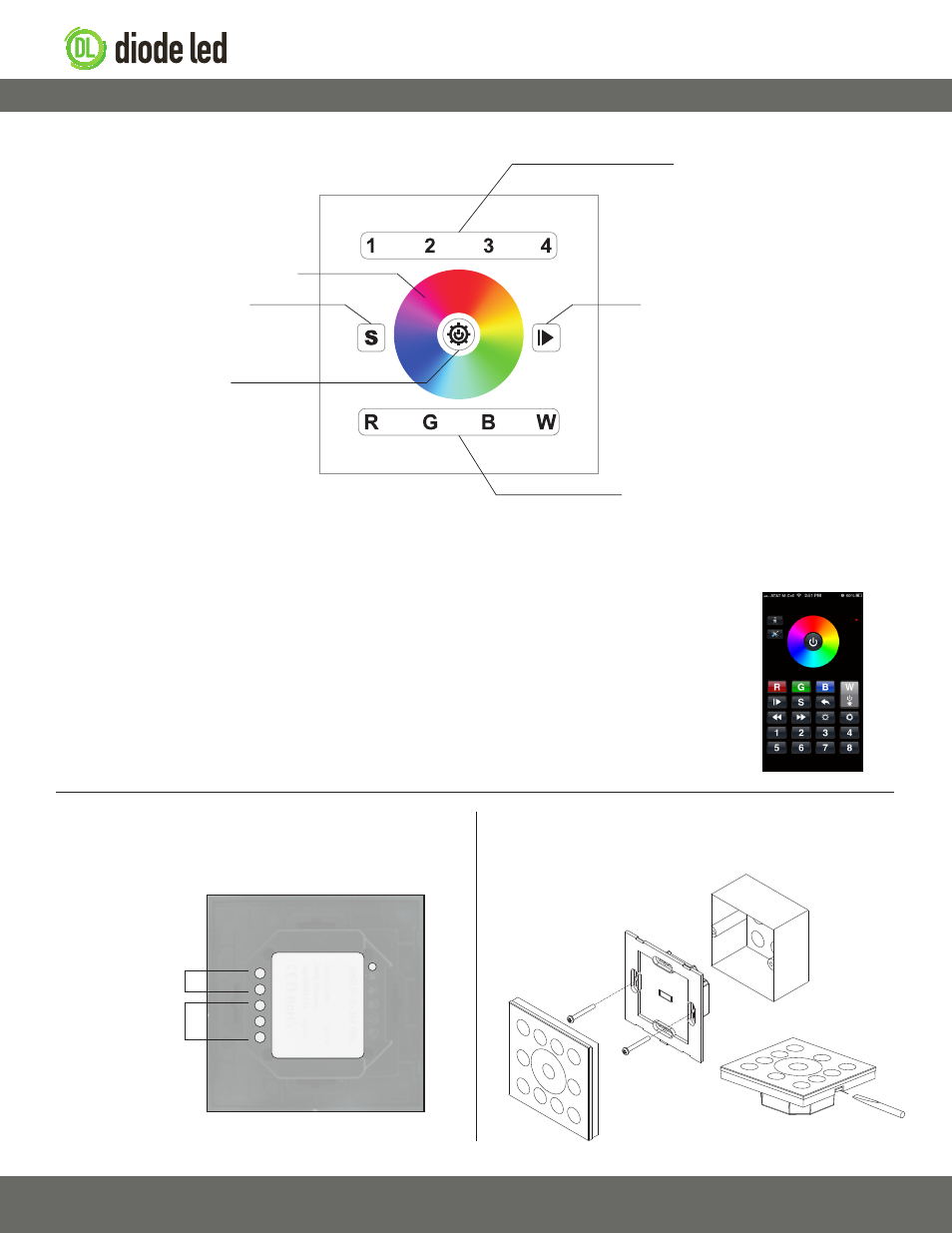

Zone Control
Short press to control zones 1-4.
Long press to turn individual zone
ON/OFF.
Dynamic Modes
Short press switches mode/pauses
mode.Long press adjusts speed of
dynamic mode. See ‘Dynamic Mode
Chart’ for mode descriptions.
RGBW Control
Short press to turn ON/OFF Red,
Green, Blue, White.
Long press to adjust brightness of
individual R,G,B,W color.
Color Wheel
Scroll to find specified color.
Save Function
Saves single colors. See below for
more details.
Power
Short press to turn ALL zones and
channels ON/OFF.
Long press to adjust brightness of
CURRENT zone RGB colors
simultaneously. Adjust W channel
seperately to adjust tone.
Wiring Connections Mounting
Operation
DO NOT connect directly to 120VAC.
See ‘System Diagram’ for a general system design.
Pop off faceplate with
a flathead screwdriver.
Install with the included SQUARE-PRO™ Junction Box.
Box dimensions: 2.83 x 1.89 x 2.83 in. (L x D x H)
GND
Data +
Data -
Vin (V+)
GND (V-)
To DMX Decoder
or DMX Fixture
From 12-24V Driver
Reset
Switch
IG061814-1.2
