FENCER: SABER Light Fixture

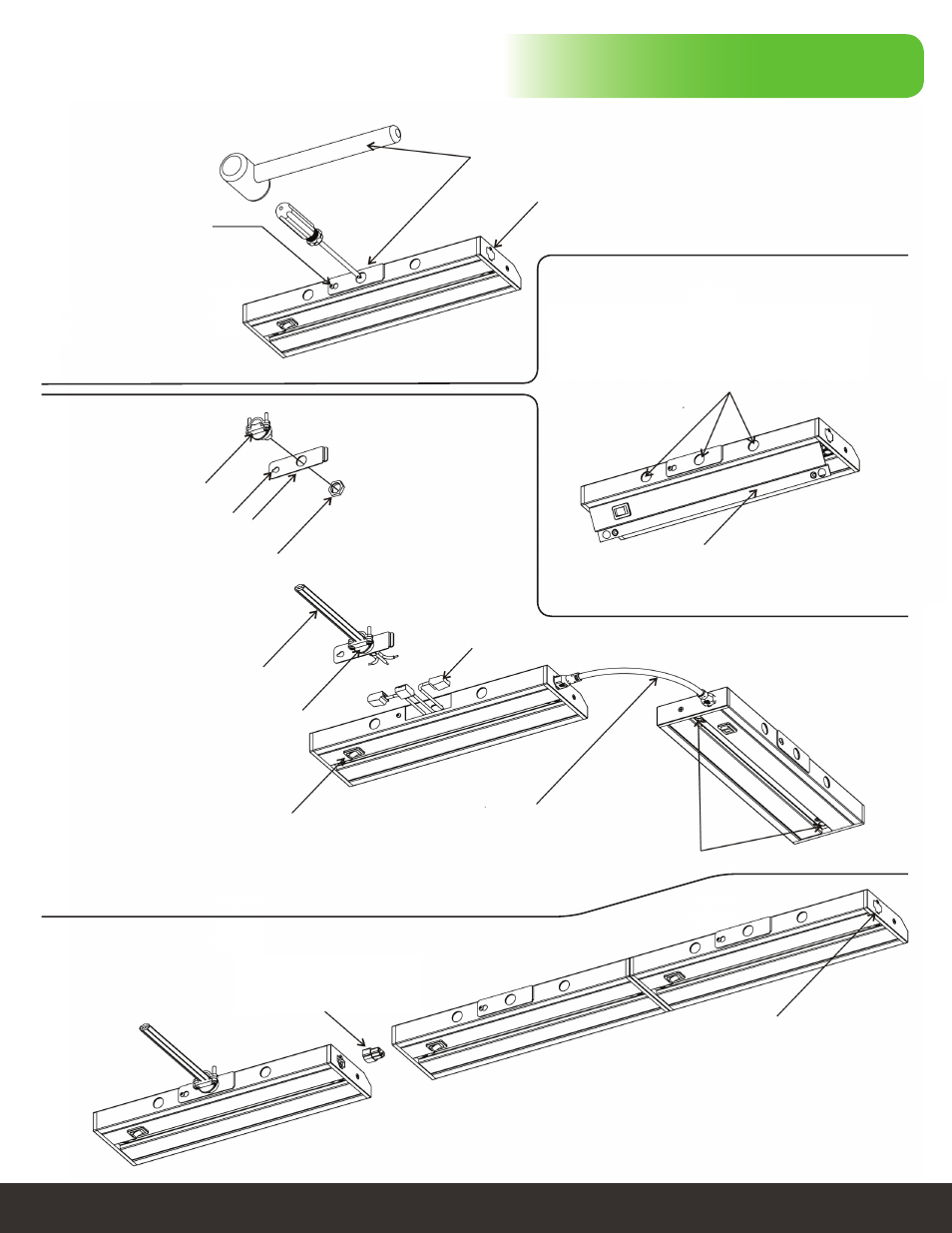

Installation and Connections
Romex Connector
Romex/Bx Connector
Access Door
Screw Lock
Extension Cable
Mounting Screw
Locations
Linkable End-To-End
Connector
Romex Connector Locking Nut
Remove knockouts
Romex/Bx Cable
Extension port covers must
be secured over unused ports.
Loosen screw to the
access door and then
slide and remove the fixture.
Fixture Switch
Wire Connector
Linkable End-To-End
Connector
A) Feed Romex through
connector and fasten
to the appropriate High
Voltage Wire connector.
SABER Light Fixtures are connected in series using extension cables or
end-to-end connectors.
1) Screw fixture into place.
2) Link fixtures using extension cables or end-to-end connectors.
3) Mount additional fixtures.
4) Unused extension ports must be covered before use.
STEP 1.
STEP 2.
STEP 3.
STEP 4.
Shut off circuit to the area and do not
turn on until installation is complete.
B) Connect Hot, Neutral, and Ground wires to
the appropriate High Voltage Connectors.
Extension port covers must
be secured over unused ports.
Knockouts are on the
back and top of fixture.
Remove cover panel by loosening
two screws.
Knockouts are located along
back and top of fixture.
