Diode LED FENCER 120V Under Cabinet & Linear Fixture Series - Manual (Page 4)

DIODELED.COM 1.877.817.6028
4

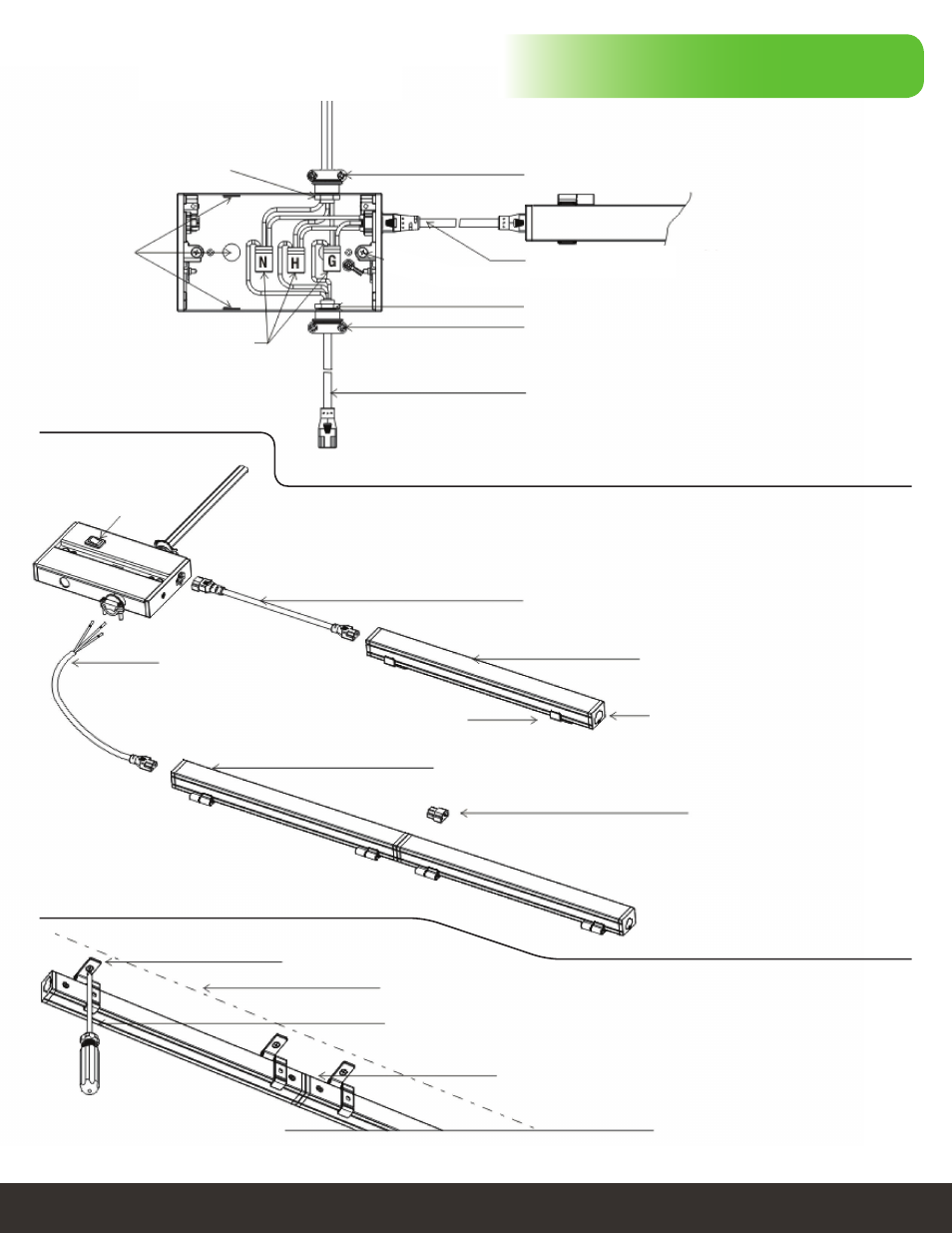

High Voltage Wire Connectors
N: Neutral - White Wire
H: Hot - Black Wire
G: Ground - Green Wire
Linkable End-To-End
Connector
Splice Cable
Extension Cable
Romex Connector
Romex Connector
Romex Connector
Locking Nut
Romex Connector
Connecting Nut
Knockouts
FENCER: FOIL Light Fixture
Installation and Connections
Fixture Alignment Line
Phillips Head Screw-Driver
Fixture Alignment Line
FENCER: FOIL
Light Fixture
FENCER: FOIL
Light Fixture
FOIL Fixture Mounting Clip
Extension Cable
Linkable End-To-End
Connector
Junction Box
On/Off Switch
Fencer Splice Cable
A) Remove Junction box cover
panel.
B) Feed Romex through connector
and fasten to the appropriate High
Voltage Wire connector.
C) Connect Hot, Neutral, and
Ground wires to the appropriate
High Voltage Connectors.
Attach cover panel and connect light fixtures using Extension Cables or
End-To-End connectors.
Shut off circuit to the area and do not turn
on until installation is complete
1) Screw mounting clips into place.
2) Attach fixture to clips.
3) Link fixtures using extension
cables or end-to-end connectors.
4) Unused extension ports must be
covered before use.
STEP 1.
STEP 2.
STEP 3.
Extension port covers must
be secured over unused ports.
