Diode LED FENCER 120V Under Cabinet & Linear Fixture Series - Manual (Page 2)

DIODELED.COM 1.877.817.6028
2

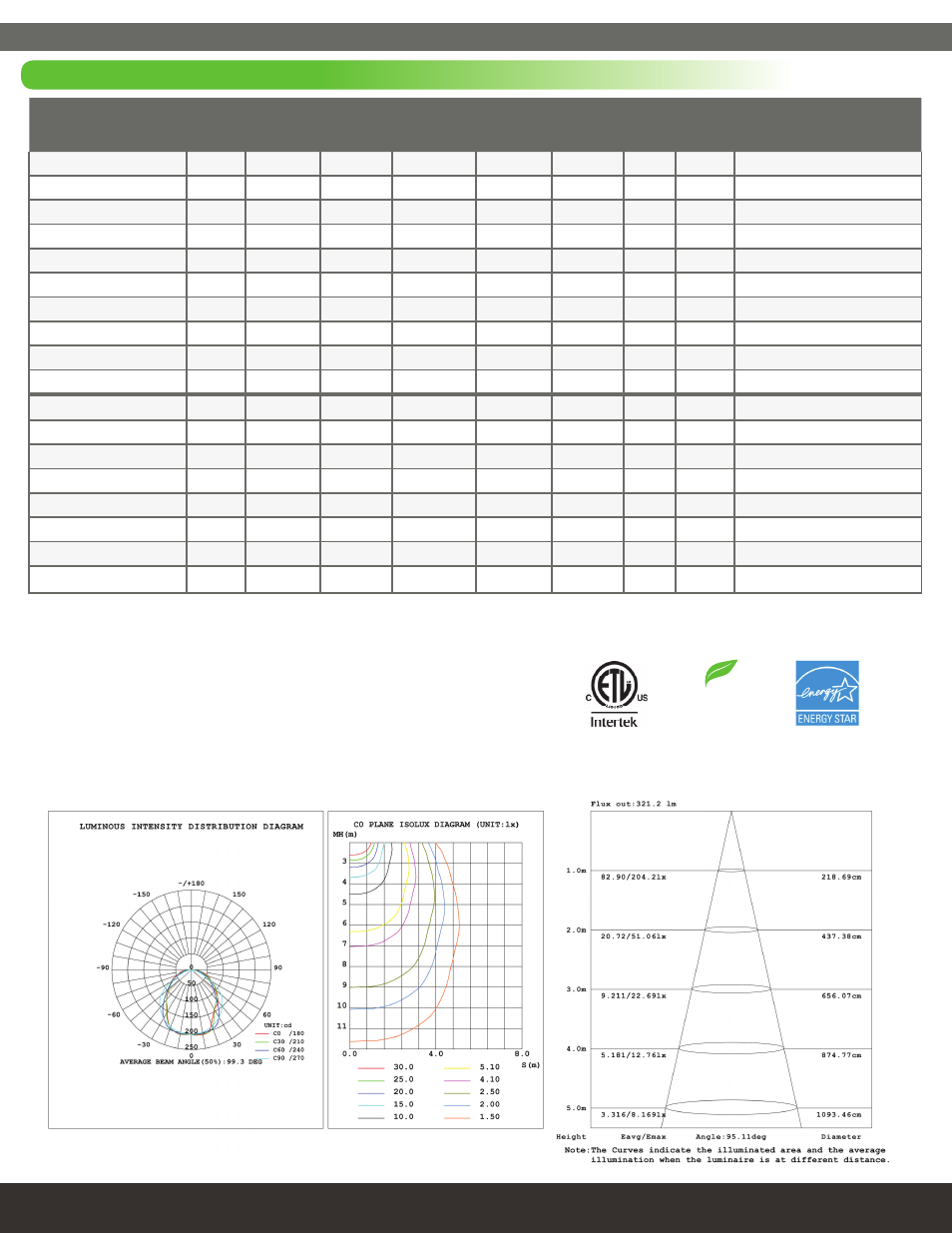

TECHNICAL SPECIFICATIONS
Item # Size Style Lumens
Max.
Rated
Wattage
Fixture
Color
Color
Temp.
CRI
LED
Qty
Dimensions
DI-1302-8-WH-30 8” SABER 175 lm 2.8W White 3,000K 80 7 8.77” x 3.62” x 0.96”
DI-1302-8-BZ-30 8” SABER 175 lm 2.8W Bronze 3,000K 80 7 8.77” x 3.62” x 0.96”
DI-1302-12-WH-30 12” SABER 250 lm 4W White 3,000K 80 10 12.32” x 3.62” x 0.96”
DI-1302-12-BZ-30 12” SABER 250 lm 4W Bronze 3,000K 80 10 12.32” x 3.62” x 0.96”
DI-1302-18-WH-30 18” SABER 375 lm 6W White 3,000K 80 15 18.2” x 3.62” x 0.96”
DI-1302-18-BZ-30 18” SABER 375 lm 6W Bronze 3,000K 80 15 18.2” x 3.62” x 0.96”
DI-1302-24-WH-30 24” SABER 500 lm 8W White 3,000K 80 20 24.17” x 3.62” x 0.96”
DI-1302-24-BZ-30 24” SABER 500 lm 8W Bronze 3,000K 80 20 24.17” x 3.62” x 0.96”
DI-1302-32-WH-30 32” SABER 675 lm 10.8W White 3,000K 80 27 32.71” x 3.62” x 0.96”
DI-1302-32-BZ-30 32” SABER 675 lm 10.8W Bronze 3,000K 80 27 32.71” x 3.62” x 0.96”
DI-1303-8-WH-30 8” FOIL 175 lm 2.8W White 3,000K 80 7 8.77” x 1.1” x 0.94”
DI-1303-8-SV-30 8” FOIL 175 lm 2.8W Silver 3,000K 80 7 8.77” x 1.1” x 0.94”
DI-1303-12-WH-30 12” FOIL 250 lm 4W White 3,000K 80 10 12.32”x 1.1” x 0.94”
DI-1303-12-SV-30 12” FOIL 250 lm 4W Silver 3,000K 80 10 12.32”x 1.1” x 0.94”
DI-1303-24-WH-30 24” FOIL 500 lm 8W White 3,000K 80 20 24.17” x 1.1” x 0.94”
DI-1303-24-SV-30 24” FOIL 500 lm 8W Silver 3,000K 80 20 24.17” x 1.1” x 0.94”
DI-1303-32-WH-30 32” FOIL 675 lm 10.8W White 3,000K 80 27 32.71” x 1.1” x 0.94”
DI-1303-32-SV-30 32” FOIL 675 lm 10.8W Silver 3,000K 80 27 32.71” x 1.1” x 0.94”
FENCER™ Under Cabinet LED Light Fixture
On/Off Switch
RoHS
Complient
SPECIFICATIONS:
Input Voltage: 120V AC
Dimmable: With compatible forward phase and reverse phase dimmers
Environment: Indoor only
Ambient Operating Temp.: 77º F (25ºC)
Max. Run: Up to 40 linear fixtures
Min. Load: Refer to dimmer switch specifications
Rated Lamp Life: 50,000 hours
LED Chip Type: Osram Sylvania
Nominal Flux: 550 lm
Lamp Flux: 550 lm x 1 meter
Power Factor: 0.9540%
LED Spacing (between centers): 1.5 in.
