Section 5: Chevy Cruze Instructions, 2011 – Current
2000-3801 Instructions 10-10-12.doc Page 16 of 24

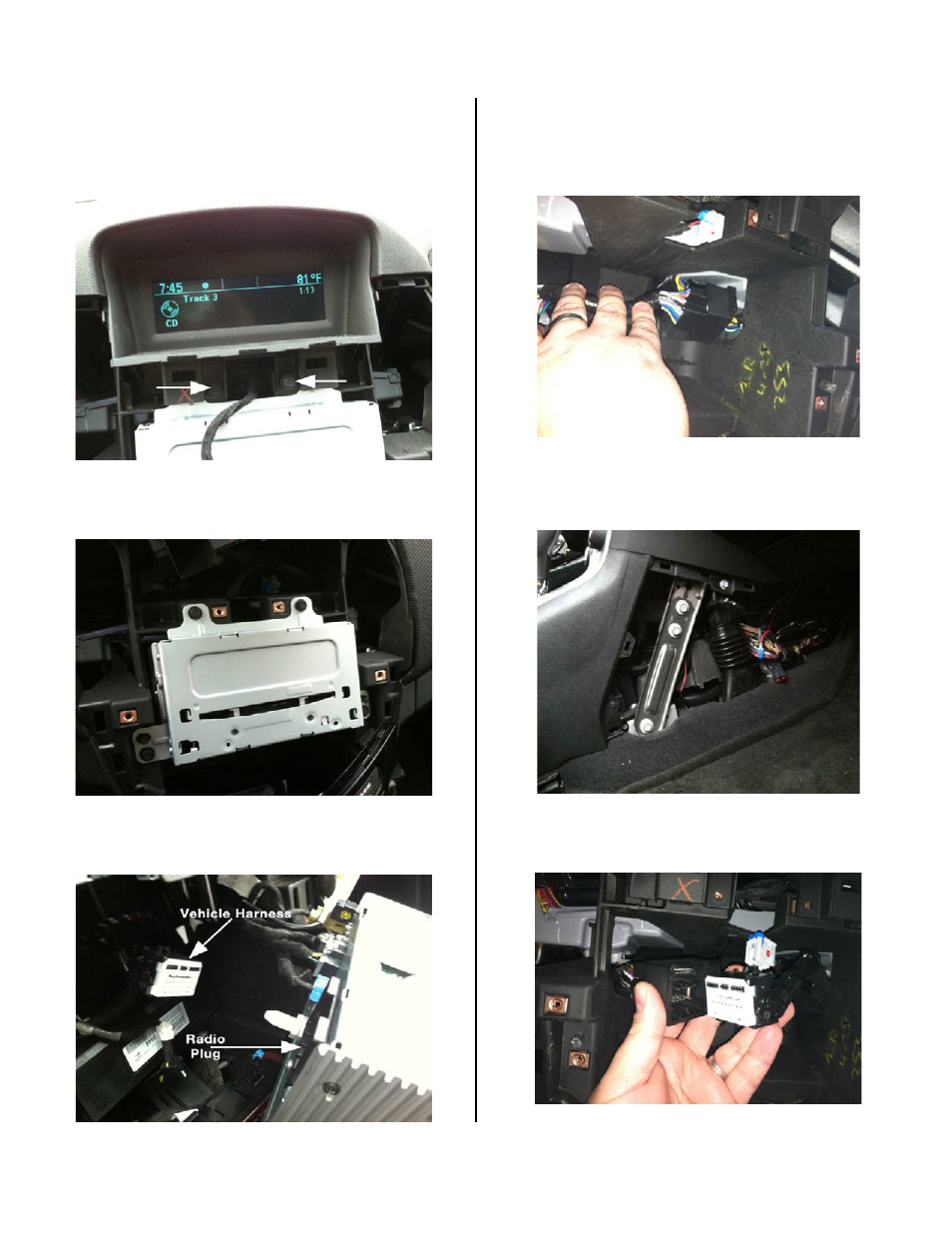

9. Using a 7mm socket driver, remove the 2 bolts
attaching the upper display screen and remove it to
gain access to the radio head unit. (Figure 6)
Figure 6
10. Using a 7mm socket driver, remove the 4 bolts
attaching the radio head unit. (Figure 7)
Figure 7
11. Pull out the radio head and disconnect the 44-pin
connector from the back of the radio. (Figure 8)
Figure 8
12. With the radio head unit pulled out of the way, drop
the white connectors of the DPS harness though the
opening behind radio cavity on the right side (Figure
9).
Figure 9
13. Remove console side panel and pull DPS Harness
through from underneath the dash on passenger side.
(Figure 10)
Figure 10
19. Connect the male 44-pin connector of the DPS
harness to the vehicle’s harness. (Figure 11)
Figure 11
