INSTALLATION
INSTRUCTIONS
8523 Instructions 7-2-13.doc Page 1 of 7
OEM Lip Mount CCD Camera with Harness and OnStar Mirror for GM
Vehicles with 10-pin Mirror Connector
(Kit part number 9002-8523)
Please read thoroughly before starting installation
and check that kit contents are complete.
Items Included in the Kit: Tools & Supplies Needed:
Bubble bag containing:
Camera with Mount (in zip lock bag)
Camera Harness
Mirror
Mirror Harness
Chassis Harness
Zip lock bag containing:
12 Zip Ties
2 Rubber Well Nuts
2 Bolts
2 sets of T-taps
Zip lock bag containing:
These Instructions
Self-adhesive Template
Phillips Screwdriver
1/8” & 5/16” Drill Bits
5/8” Drill Bit or Center Hole Saw
Power Drill
Deburring Tool or Round File
Multi-meter or computer safe test light
Wire Crimper
Rust Inhibitor
(Recommended)
Soldering Iron (Recommended)
Solder (Recommended)
Plastic Trim Removal Tool
Safety Precautions:
•
Work in a well ventilated area that is clear of obstructions.
•
Secure vehicle with tire chucks in both front and rear of tires.
•
Turn vehicle accessories OFF and ensure ignition key is in OFF position.
•
Wear safety goggles and snug fitting clothes.
•
Use tools only for their intended purpose and which are in good repair.
•
Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions.
For the latest full color instructions, as well as an installation video (refer to relevant portions of the video
for Kit # 9002-8530), please visit www.brandmotion.com

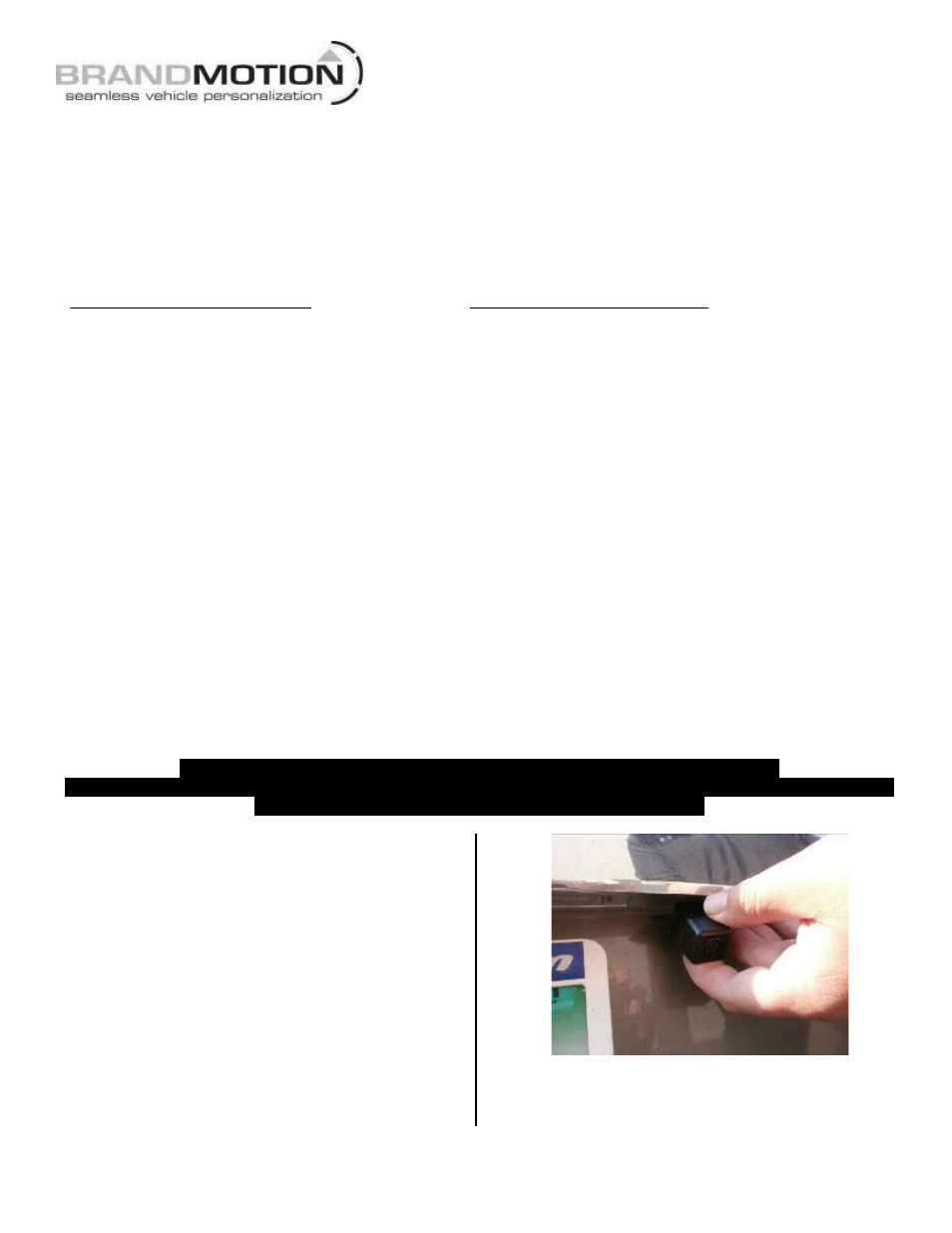

Step 1: Place Camera Mount in desired position to
confirm fitment. (IMPORTANT: Some states
prohibit items blocking the vehicle license plate;
check local authorities to confirm legal status for
your specific application).
Note: the rear trim of several GM vehicles such as
the Chevy Equinox and Cadillac CTS have slight
depressions (indicated by the arrow below) where
