Section 4: Chevy Camaro Instructions, 2010 - Current
2000-3801 Instructions 10-10-12.doc Page 14 of 24
14. Reconnect negative battery cable.
15. Place DPS module with the Bongiovi DPS Acoustics
side face down. Confirm the DPS unit’s dip
switches are all set to the “down” position –
“DDDDD”. (Figure 11)

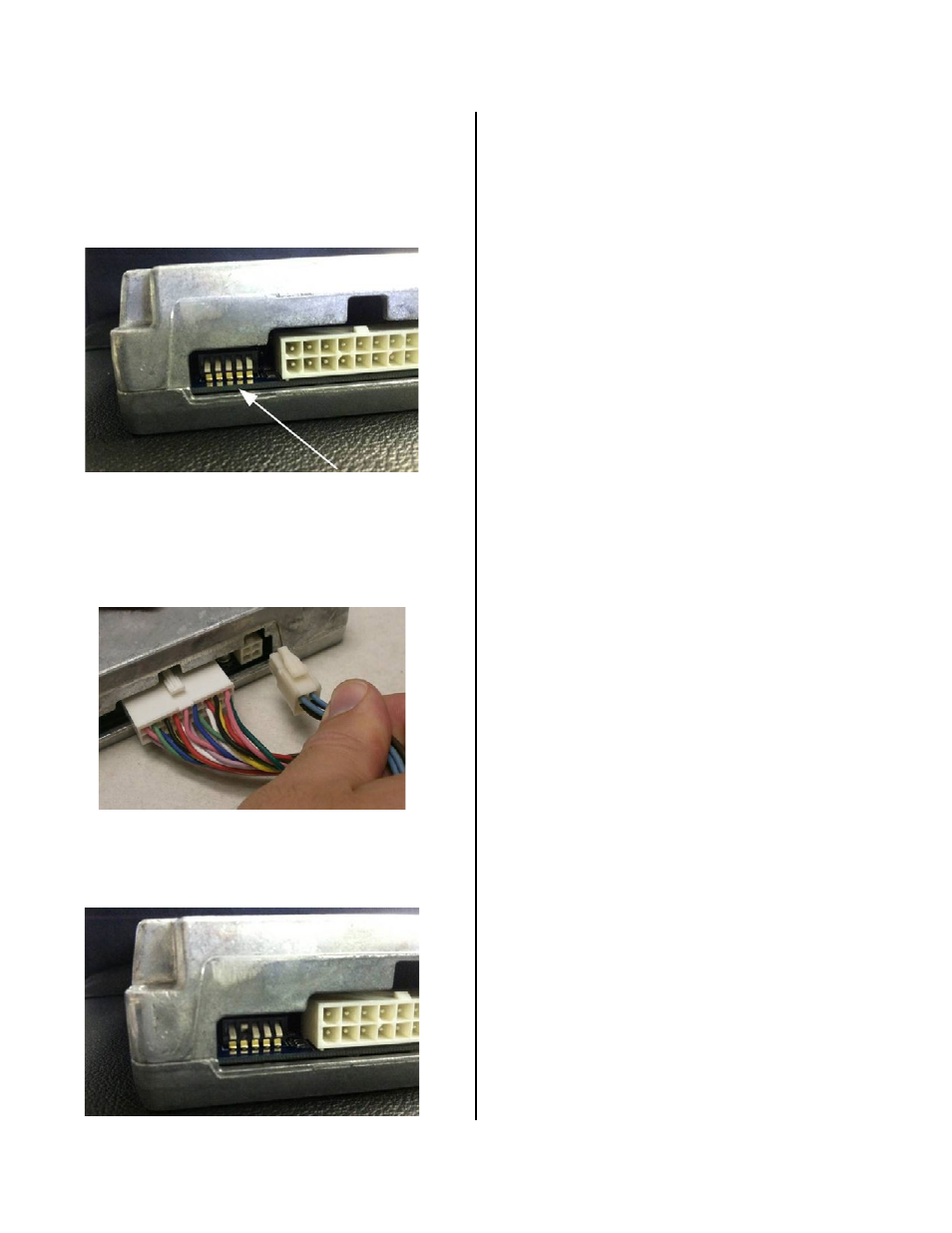

Figure 11
16. Turn vehicle ignition key to “ON” position. Turn on
radio head unit for 10 seconds. (Note: There
should be no sound from the speakers).
Disconnect white 4-pin connector from back of
DPS module. (Figure 12)
Figure 12
17. Set the DPS dip switches for Chevy Camaro. The
second switch should be flipped to the “up” position
– “DUDDD”. (Figure 13)
Figure 13
18. Plug white 4-pin connector into DPS module and
wait 10 seconds. (Note: There should be no sound
from the speakers). Disconnect white 4-pin
connector from back of DPS module.
19. Plug white 4-pin connector back into DPS module.
After a few seconds you should hear sound from
the radio. Ensure radio head unit is working
properly including all speaker channels.
If you do not hear any sounds, recheck connections
and repeat Steps 15 through 19.
20. Disconnect negative battery cable.
21. Using supplied 24” wire ties, secure DPS module
under front of console bracket or behind upper foot
well carpet.
22. Reassemble vehicle.
23. Reconnect negative battery cable.
24. Place Bongiovi DPS Badge on left side of IP center
trim.
