9002-9613 Installation Instructions (Slimline Manual Dimming
OEM Mirror with 3.5” Display)
IMPORTANT : Check kit contents and read instructions before installing. For the latest full color instructions please visit
www.brandmotion.com
Kit contents: Manual Dimming Mirror with 3.5” Video Display
Mirror Harness with 16-pin and RCA connectors
These Instructions
Mirror Removal & Mounting
NOTE: This mirror has a Wedge/ D-tab style mounting base. Please check our application guide to ensure it is compatible with your
vehicle (for specific applications, adapters are available separately). In some cases, it may be necessary to remove a cover to access
the wedge mount on the windshield and/or modify the cover slightly to clear the mirror mount.

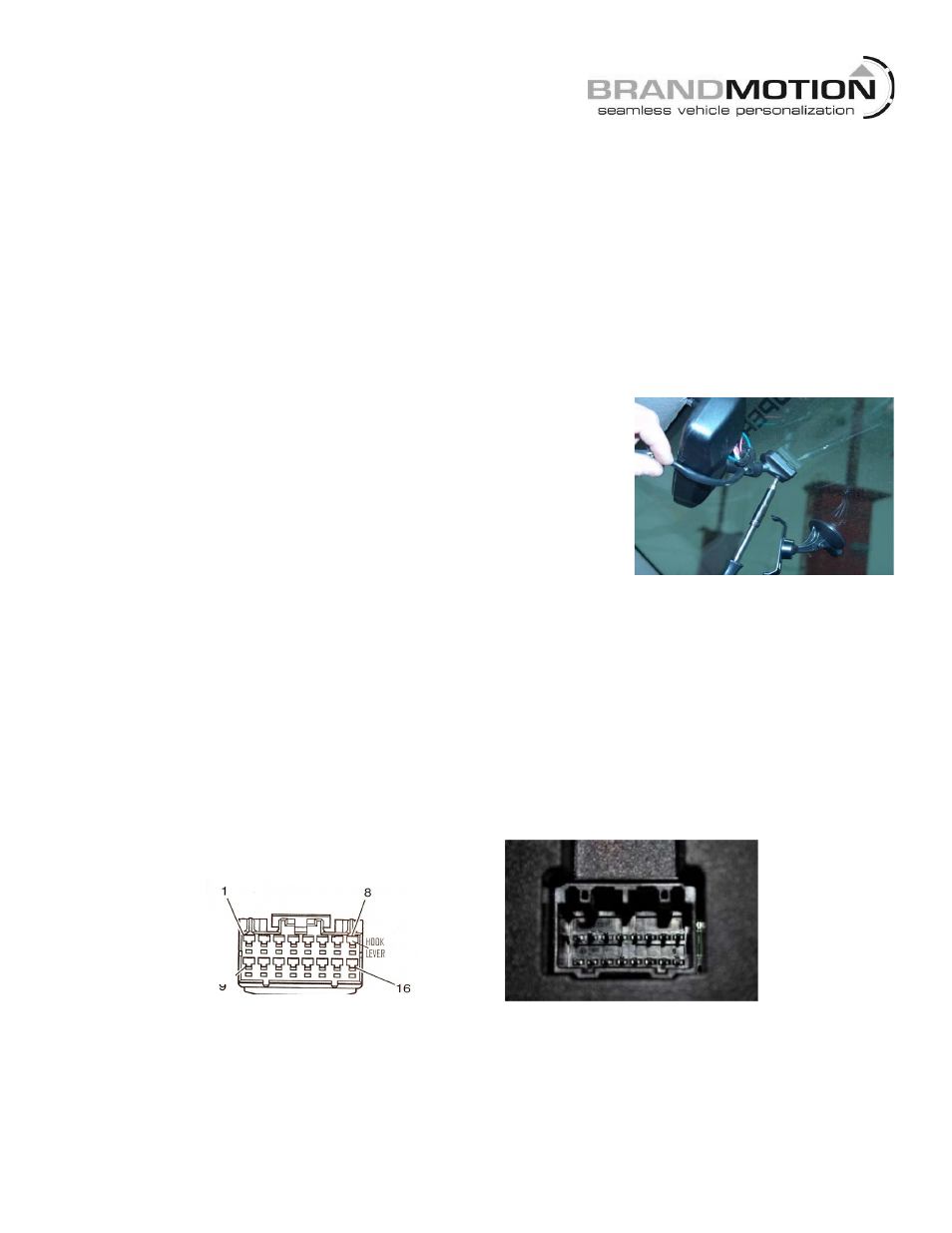

To install:
1. Loosen vehicle mirror screw using a T20 Torx
driver and remove existing vehicle mirror.
CAUTION: Do not twist mirror as windshield damage could
result .
2. Carefully slide supplied Mirror onto the windshield
tab.
3. Torque supplied Mirror screw to 1.8 Nm (16 lb-in)
and do not exceed 2.2 Nm (19.5 lb-in).
Camera requirements
The camera signal must be strong enough for the mirror to detect signal when reverse is engaged. We
recommend that the camera be connected to mirror prior to installation to confirm compatiblity. Best results
are on cameras that have a 0.8- 1.6v DC coming out of video composite lead (commonly a yellow RCA jack).
Depending on camera output it may require reverse to be supplied by a 12v switched ignition rather than
reverse feed. To test this use a multimeter set to DC and connect the (-) lead to the camera RCA shield and
the (+) lead to the camera RCA tip with the camera powered ON.
Mirror Wiring
1. Use a multimeter to test for vehicle Igniton (+) and Reverse (+) signals. Typical locations are behind
the driver or passenger side kick panel or under the dash. Set parking brake, start vehicle, and have an
assistant shift into Reverse while you test for Ignition and Reverse signals.
2. Plug 16-pin connector on supplied Mirror Harness into supplied Mirror.
3. Route Mirror Harness beneath headliner and down the A-pillar closest to the Ignition and Reverse
signal locations.
4. Splice Mirror Harness wires to the following required connections:
Red - Ignition controlled power 12v+ when key is ON
Black - Chassis ground
Green - Connect to Reverse (+) power (backup lamps)
5. Connect female RCA plug on supplied Mirror Harness to male camera RCA.
!
!"##$%&"'()*%$(*#+(,*%-(")(./''"'(
/.*0$1(
!
White dot
identifies
cavity 1
