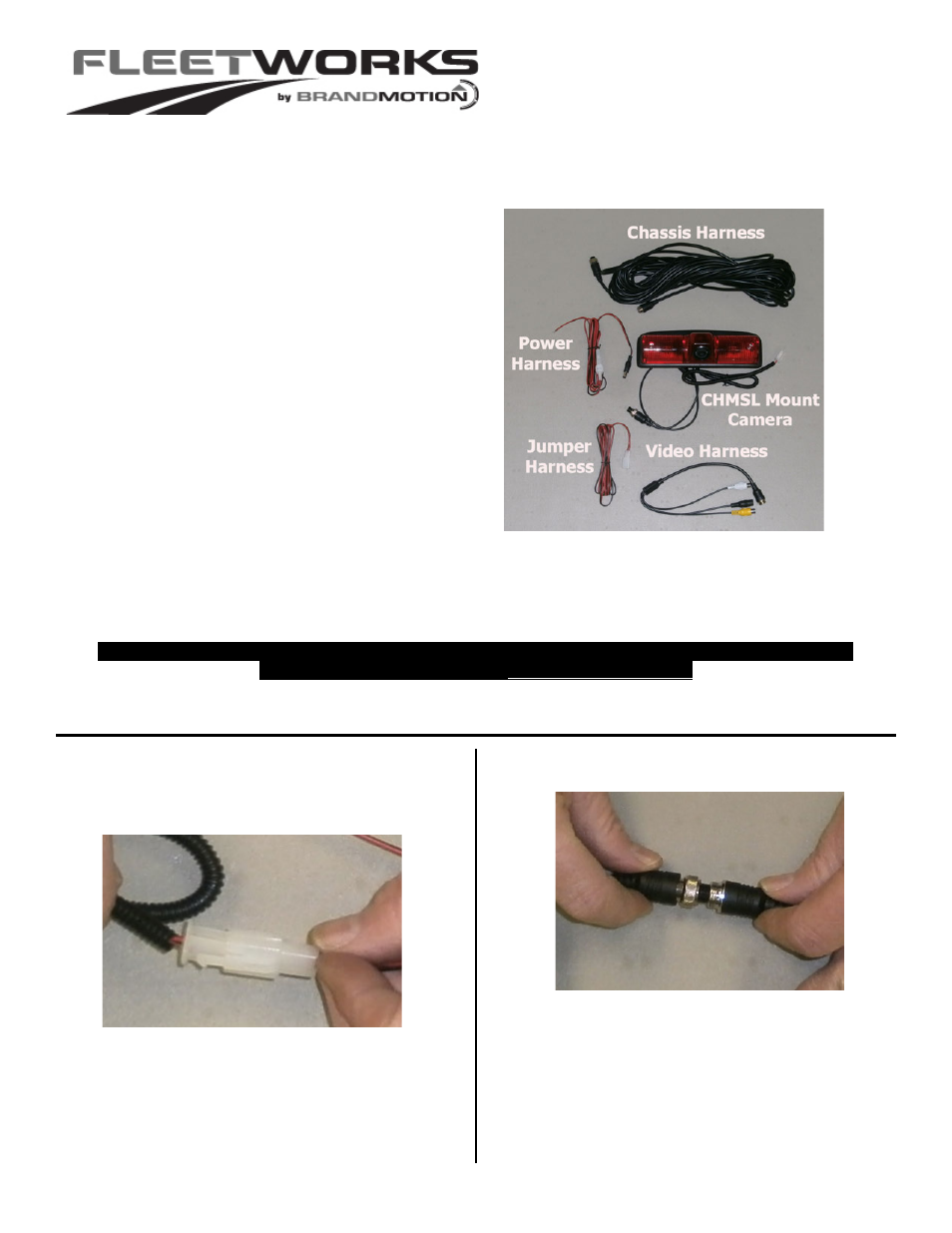

Universal Cargo Van Infrared Camera with Taillamp (Kit # FLTW-7604)
Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in Kit:
CHMSL Mount Camera and Harness
Video Harness
Chassis Harness
Power Harness
Jumper Harness
Female to Male RCA Adapter (not shown at right)
These Instructions
Tools & Supplies Needed:
Multi-meter or computer-safe test light
Plastic Trim Removal Tool
Electrical Tape or Heat Shrink Tubing
Soldering Iron (recommended)
Solder (recommended) or T-Taps
Wire Ties (recommended)
Ground Eyelet (recommended)
Safety Precautions:
•
Work in a well ventilated area that is clear of obstructions.
•
Secure vehicle with tire chucks in both front and rear of tires.
•
Turn vehicle accessories OFF and ensure ignition key is in OFF position.
•
Wear safety goggles and snug fitting clothes.
•
Use tools only for their intended purpose and which are in good repair.
•
Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions. The latest full color
instructions can be accessed at www.brandmotion.com
Step 1: Find a suitable mounting camera location and route
camera harness accordingly.
Step 2: Connect Camera Harness jumper connector to
supplied Jumper Harness.
Step 3: Connect red wire of Jumper Harness to vehicle’s brake
or running light (12v+ power) and black wire to chassis
ground. (Recommended: Solder or T-Taps).
Step 4: Connect Camera Harness video connector to supplied
Chassis Harness.
Step 5: Route Chassis Harness forward along the driver’s side
of the vehicle.
Step 6: Connect Chassis Harness to supplied Video Harness
and route towards driver’s side kick panel.
