Brandmotion 9002-7605 User Manual
Brandmotion For the car

2010-Current Ford Transit Connect Aftermarket CMOS Camera with Optional Parking
Gridlines Installation Instructions (Kit # 9002-7605)
7605 Ford Transit Connect Instructions 10-11-12.doc
Page 1 of 3
Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in Kit:
Tools & Supplies Needed:
Chassis Harness
Multi-meter or computer-safe test light
Power Harness with RCA connectors
Ground Eyelet (recommended)
Camera mounted in license plate lamp cover
Soldering Iron
Instructions
Wire Ties or Electrical Tape
Solder (recommended) or T-Taps
Plastic Trim Removal Tool
Safety Precautions:
•
Work in well ventilated area that is clear of obstructions.
•
Secure vehicle with tire chucks in both front and rear of tires.
•
Turn vehicle accessories OFF and ensure ignition key is in OFF position.
•
Wear safety goggles and snug fitting clothes.
•
Use tools only for their intended purpose and which are in good repair.
•
Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions. The latest full color
instructions can be accessed at www.brandmotion.com

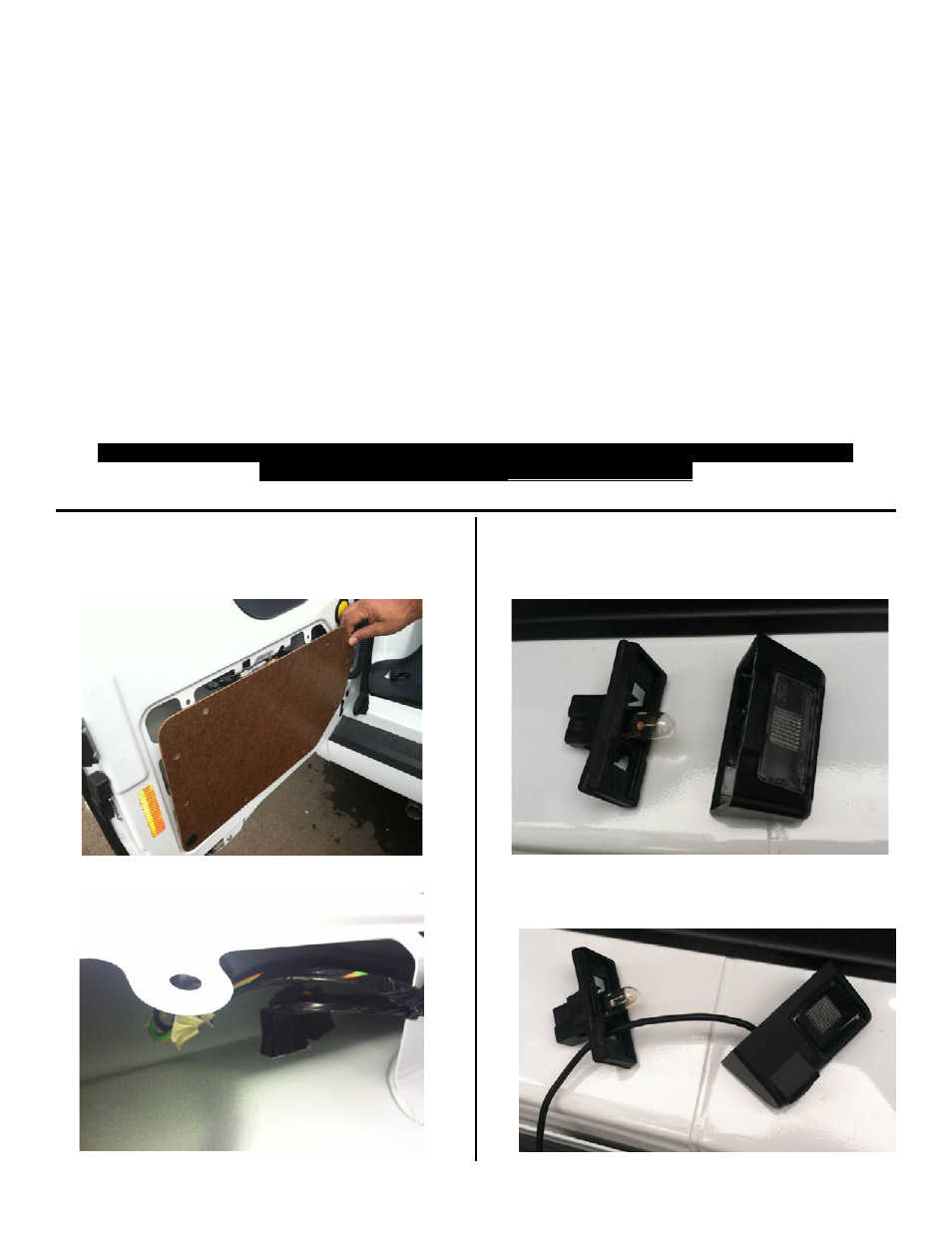

Step 1: Use a plastic trim removal tool to extract
pins from rear door inner trim panel and remove.
Step 2: Unplug right license plate lamp connector.
Step 3: Remove license plate lamp and separate
bezel from cover.
Step 4: Thread connector end of the camera
harness through license plate lamp bezel. Snap
supplied camera on license plate lamp bezel.
