INSTALLATION
INSTRUCTIONS
1015 Instructions 11-14-13.doc 1 of 6
Rear Vision System – Mirror Display
2014-current Chevrolet Silverado Work Truck and GMC Sierra WT
(Kit part number 9002-1015)
Kit Contents:
Manual Dimming Mirror with 3.5” Video Display
Mirror Harness
Chassis Harness
1 bubble bag containing:
Tailgate Handle Camera
1 bag containing:
These instructions
Tools & Supplies Required:
Socket Wrench or Socket Driver
10mm Socket
T10 & 15 Torx Bits
Torque Wrench
Plastic Trim Removal Tool
Phillips and Flat Blade Screwdrivers
Delphi Terminal Tool # 12094429 or a Small Flat
Blade Watch Repair Screwdriver
Power Drill
25.4mm (1”) Hole Saw
Center Punch
Measuring Tape
Deburring Tool
Heat Shrink Tubing
(recommended)
or Electrical Tape
Soldering Iron and Solder
(optional)
or T-taps
Corrosion Inhibitor
(recommended)
Wire Ties
(recommended)
Note: We strive to provide accurate and up-to-date installation instructions. For the latest full
color instructions, as well as an installation video, please visit www.brandmotion.com
IMPORTANT: Verify kit contents are complete against list above before beginning installation.
Preparation
1. Ensure all lamps and accessories are OFF.
2. Ensure ignition switch is in the OFF position.
3. Loosen negative battery cable bolt. Remove
negative battery cable from terminal and position
away from battery
4. Wait one (1) minute prior to working on vehicle to
assure SIR roof rail airbag system has been disabled
for your safety
Install Camera into Tailgate
5. Lower Tailgate and (if equipped) remove plastic
Tailgate Protector.

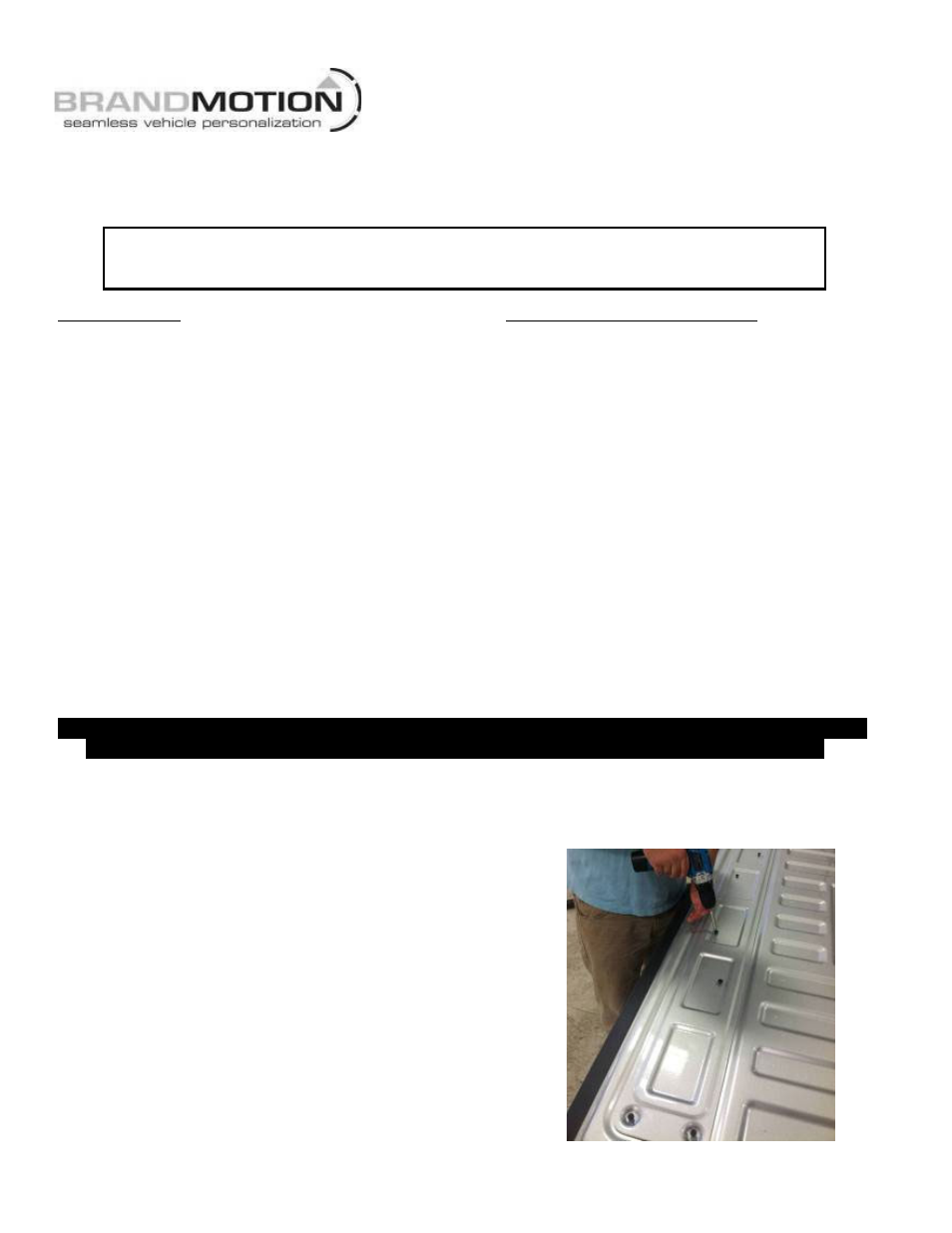

6. Use a T15 Torx Bit to remove (8) screws retaining
the Tailgate Access Panel and remove the panel.
(Figure 1)
Figure 1
COMPATIBILTY NOTE: This kit can only be installed on non-OnStar vehicles equipped
with Manual Dimming Mirrors. Please contact Brandmotion Tech Support for assistance.
