Section 5: Chevy Cruze Instructions, 2011 – Current
2000-3801 Instructions 10-10-12.doc Page 15 of 24
1. Ensure all radio functions are working properly, return
all Treble, Bass, Fade, and Balance to neutral settings,
and remove any CDs to avoid possible jam before
disassembly.
2. For vehicles equipped with automatic transmissions,
place shifter in the N (neutral) position and set parking
brake.
3. Loosen the negative battery cable bolt. Remove
negative battery cable from terminal and position away
from battery.

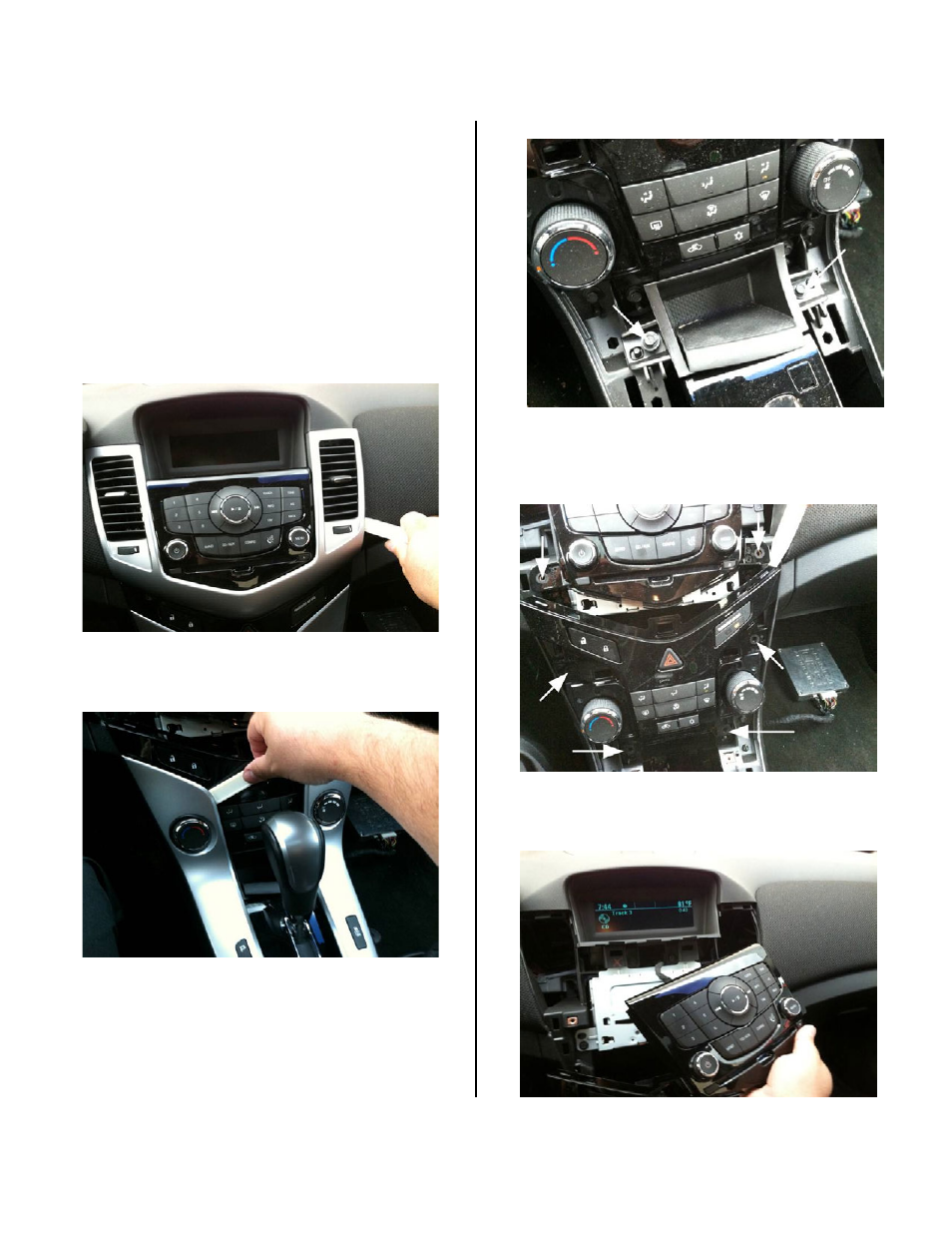

4. Using a plastic trim tool, gently remove the IP center
trim. (Figure 1)
Figure 1
5. Carefully remove the lower console trim panel using
the plastic trim tool. (Figure 2)
Figure 2
6. Using a 7mm socket driver remove the 2 bolts
attaching the small lower bin under the faceplate
controls. (Figure 3)
Figure 3
7. Using a 7mm socket driver, remove the 6 bolts
attaching the upper and lower faceplate controls.
(Figure 4)
Figure 4
8. Remove and set the upper and lower faceplate controls
aside. (Figure 5)
Figure 5
