WinCue Pro News User Guide WinCue Pro News Configuration • 76

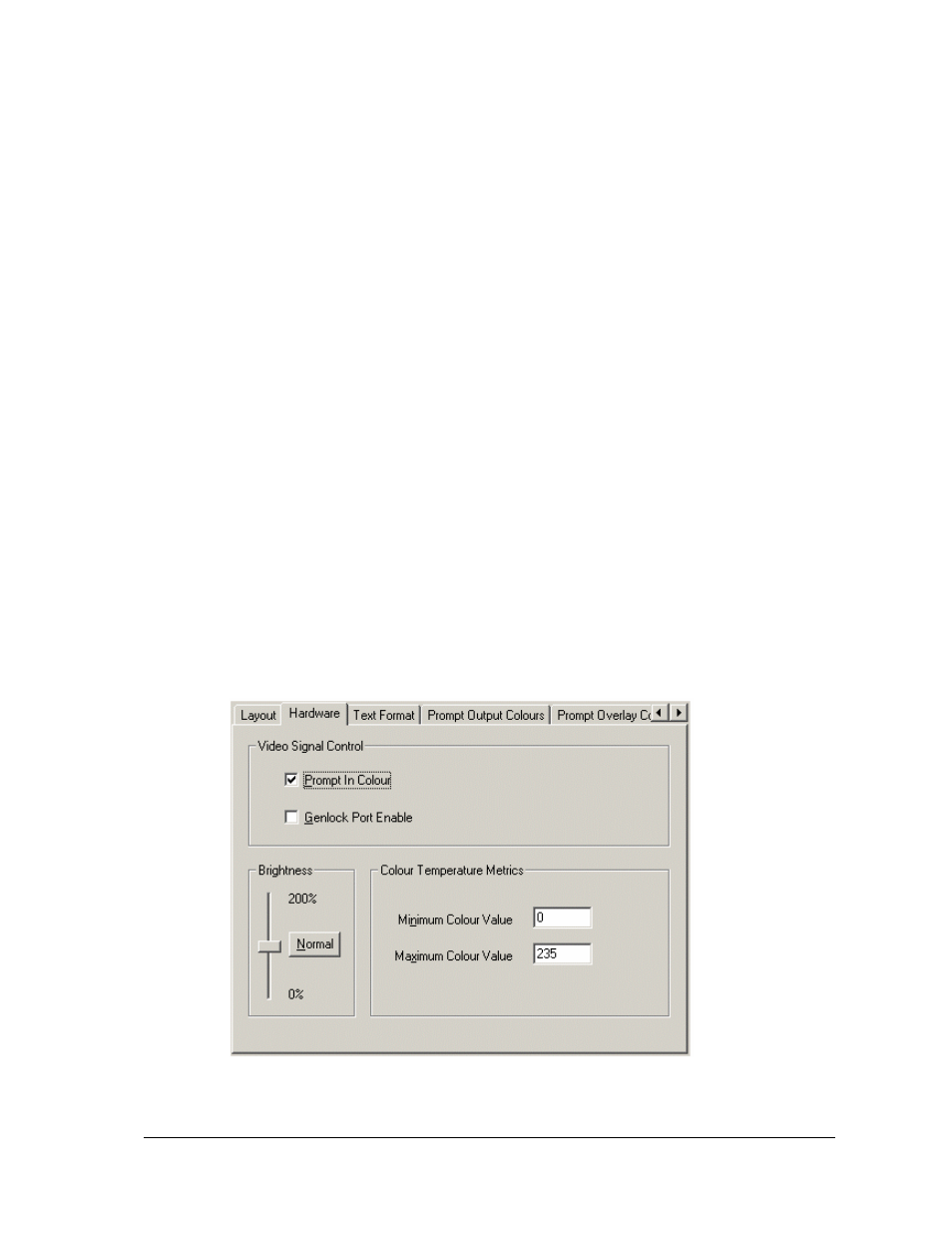

Hardware
Generate Colour Burst – The colour burst signal is part of the overall video output
signal, one of its functions is to control the colour of the output signal. DO NOT TURN
THIS OFF.
Genlock Port Enabled – Genlock is used to lock the WinCue Pro News signal to an
external sync signal, this is mostly used in newsroom set-ups.
Brightness – This control will adjust the overall level of the video output signal,
therefore it can be used to set the overall brightness of the prompt monitors that are
connected to the I.M.T card. The range is set from the values that have been set
under Colour Temperature Metrics.
You may need an Oscilloscope to set the following levels.
Minimum Colour Value – This sets the video signal range, by default the video signal
sits slightly below the sync level, if this causes a problem with your monitors then
increase this value (16 set the video level to the video standard).
Maximum Colour Value – This sets the maximum output video level.
