WinCue Pro News User Guide IMT Card Information
• 151

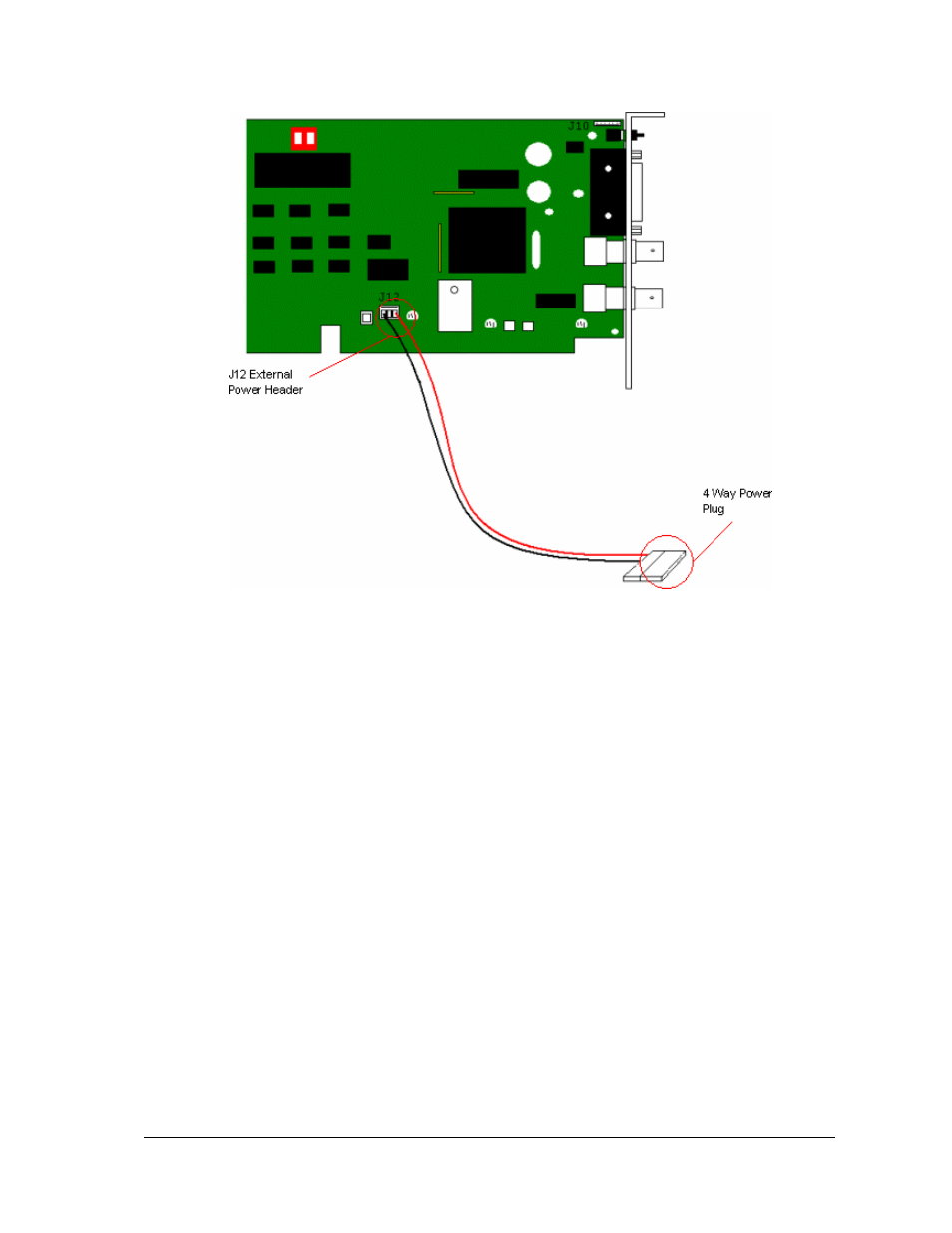

In systems where the I.M.T. card is not fitted inside the PC, it is powered by an external
power supply. This power supply is connected to J12. This appears as an 8-pin
connector on Issue 1 cards, and a 3-pin connector on Issue 2 cards.
14.1.7
Composite Video Features Connector - J10
The Composite Video Features connector allows additional 4 composite video ports
to be added to your PC. To find out more about this product contact your supplier.
Do not attach anything to any of the pins on J10.
14.1.8 Other
Jumpers
J1 is the debug port. It supplies serial debugging information. Do not attach anything
to any of its pins.
J5 is the flash reset port. Do not attach anything to any of its pins.
