WinCue Pro News User Guide
IMT Card Information
• 145
14.1
Card Layout
The following page shows the layout of Issue 1 of the I.M.T. card. You may have
been supplied with a newer version of the card – Issue 2 or above. Together, the
diagrams will help you locate all the connectors and jumpers on the board that you
have been supplied with.

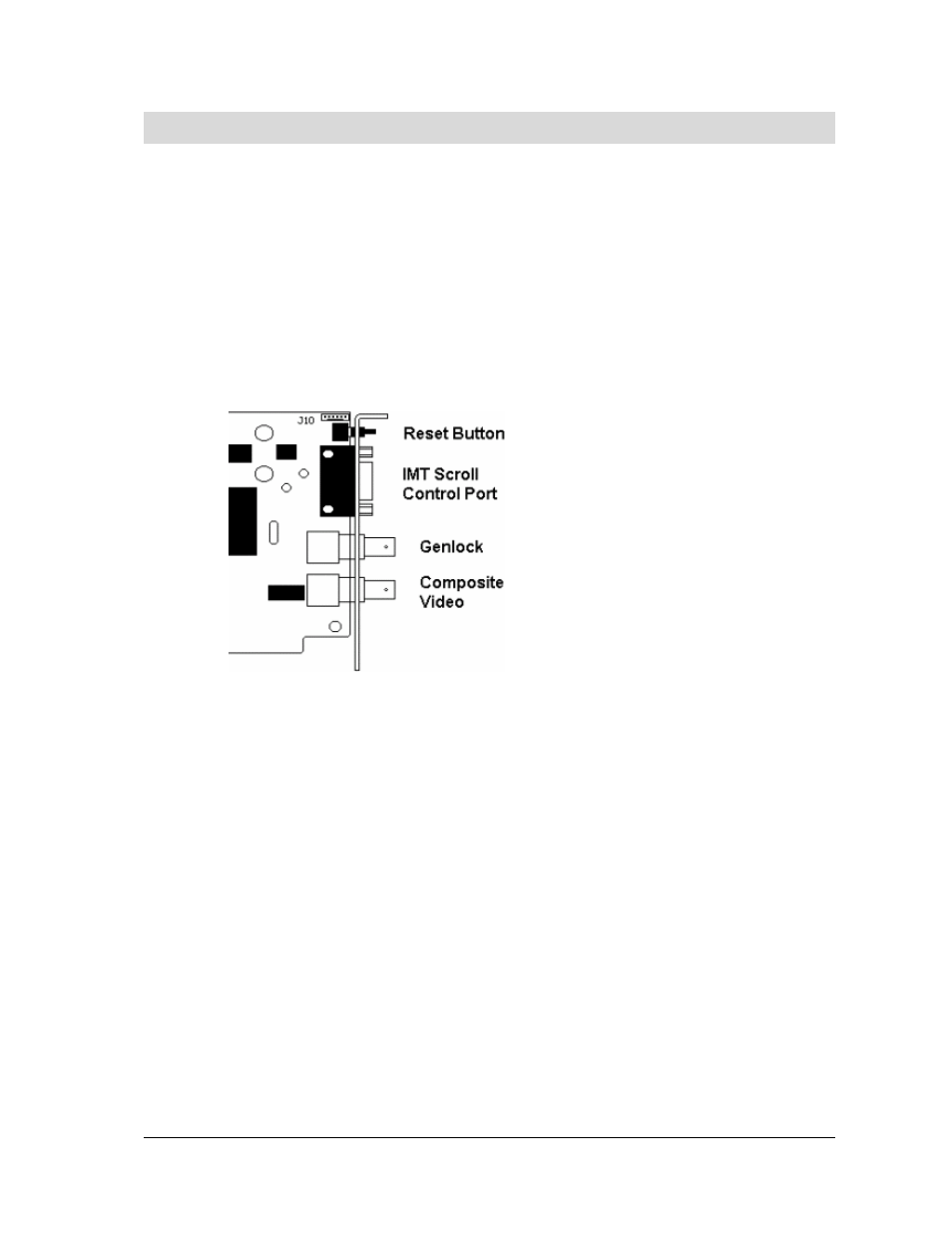

The diagram below shows the redesigned end panel.
IMT Card – Issue 2. Connector Detail
