The scroll rate is the speed at which the script moves up the prompter screen. As the control wheel is turned,
the speed of the script increases according the value specified for the distance the wheel is moved. The
default values are set so that when the wheel is turned approximately halfway, the script is moving at an
average reading speed.

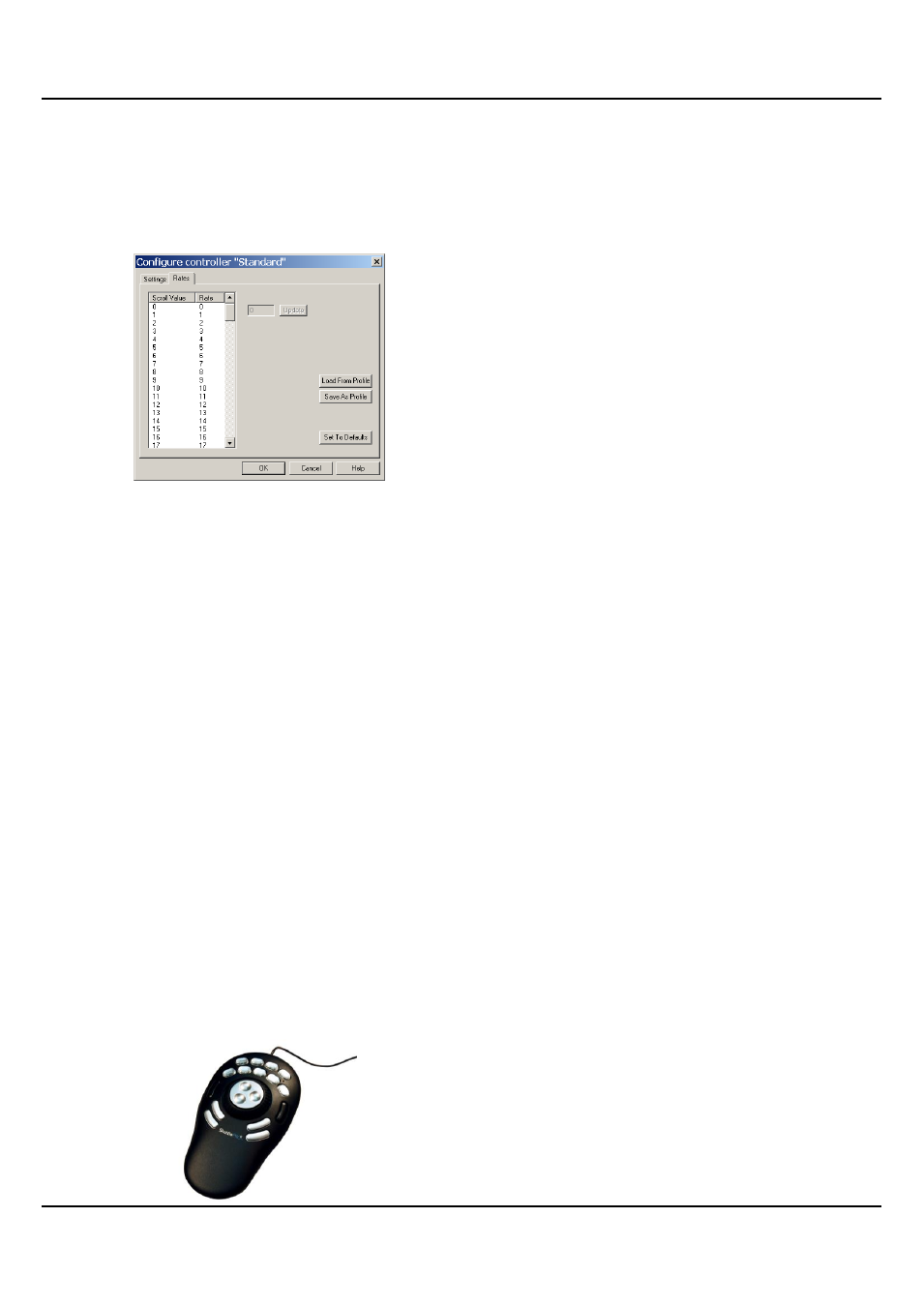

 To modify scroll rates, click on the Rates tab. A list of Scroll Values and rates is
displayed.
Update scroll rate setting
1. Select a scroll value.
2. In the field next to the Update button, enter a new scroll rate.
3. Click the Update button.
The new scroll rate is displayed for the scroll value.
To save the scroll rates as a profile
1. Click the Save As Profile button.
2. Enter a profile name in the Profile Name field.
3. Click OK.
Once the profile is saved, you can then load it again the next time you wish to use
the settings in the profile. You can do this by clicking the Load button and selecting
the profile from the dialogue box. It is also possible to use a profile created for an
Autocue Serial Multibutton scroll controller.
Contour Design controllers
ShuttlePro
The controller is designed for one-hand access to the buttons and jog/shuttle knob. The inner 'jog' control
rotates through 360 degrees and provides precision forward and reverse scrolling. The outer black ring or
'shuttle' is rubberized and spring-loaded. The controller is connected via a USB port.
The ShuttlePRO has 15 fully programmable buttons, nine of which have removable key caps for easy
labelling and referencing.
