5-10 PMI Regulator
5.3.2 Connecting Drive I/O
Drive I/O Cable #612401-T is provided for connection between the Drive I/O
connector and a 16-point terminal block. Cable #612571-S is provided for connection
between the Drive I/O connector and a row of two tier DIN rail mounted terminal
blocks. These cables have an 18-pin connector on one end for connection to the Drive
I/O Connector. Near the connector, the cable is labeled “C3-P2.” Near the terminal
block or DIN rail connections, the cable is labeled “I/O.” Refer to figure 5.12 or 5.13.

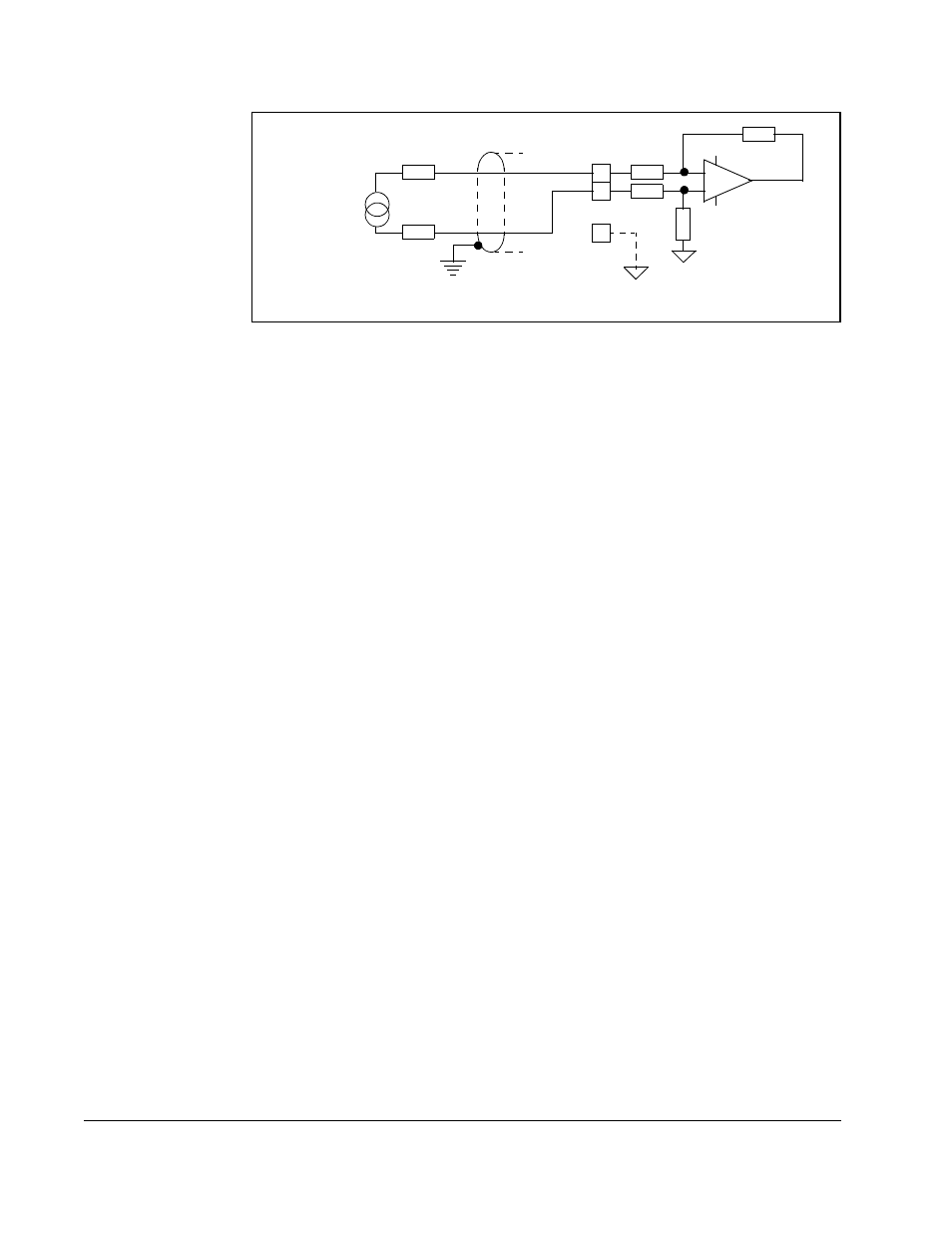

Figure 5.11 – Analog Input - Balanced Floating
+
-
Zout
Vs
-
+
G
Vs MUST BE LESS THAN 10 VOLTS
Zout
