3-10 PMI Regulator
The Drive I/O connector pinout is shown in figure 3.11
Figures 3.12 and 3.13 show block diagrams of the Resolver & Drive I/O board
(B/M O-60067) and the Drive I/O only board (B/M O-60068).

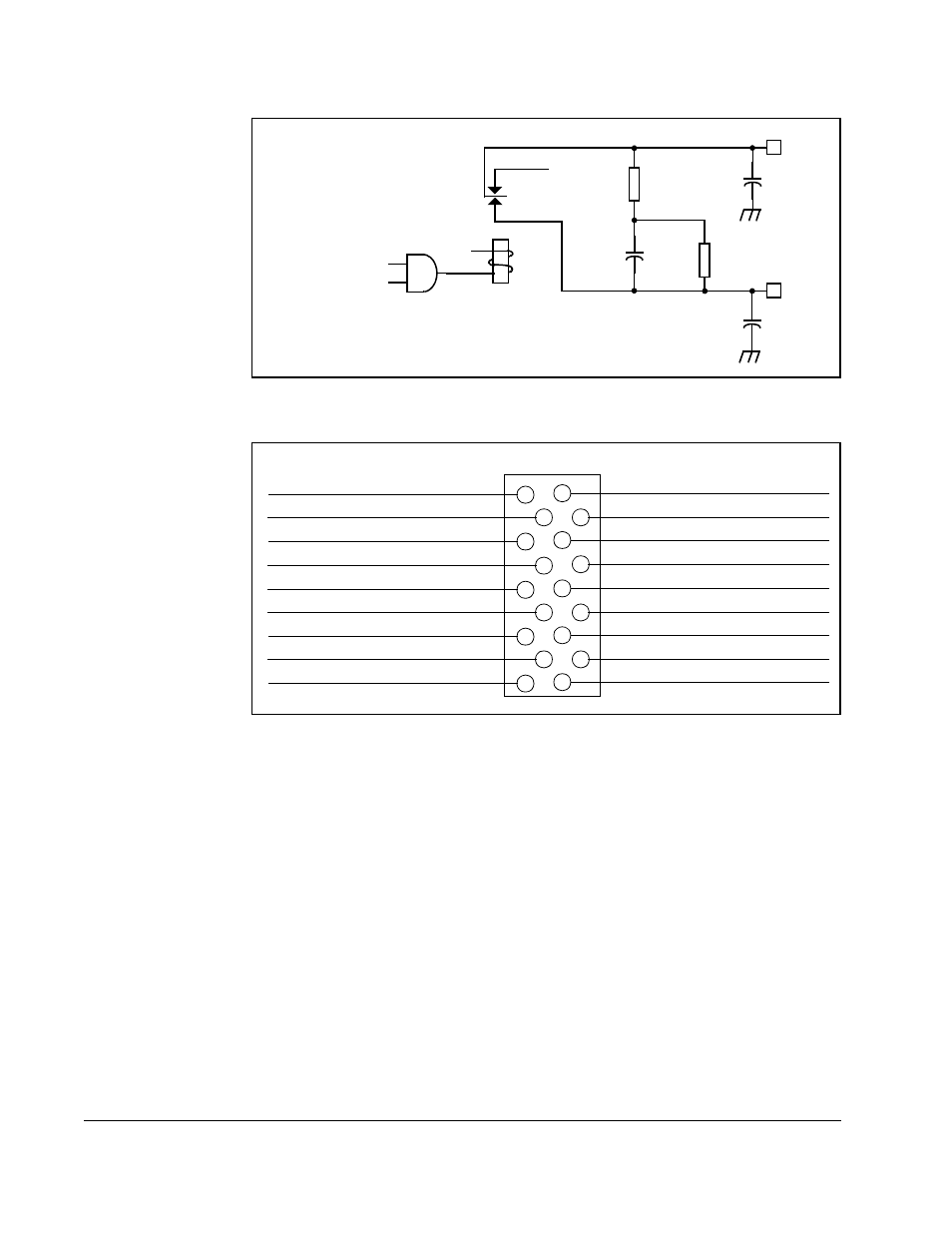

Figure 3.10 – MCR and Auxiliary Output Circuit
Figure 3.11 – Drive I/O Connector Pinout
.0033uF
+
–
.0033uF
DELAYED RPI
MICROPROCESSOR
MCR AND AUX OUTPUTS
1K
.1uF
1 M
RPI IN (+)
AUX IN2 (+)
AUX IN1/MFDBK (+)
AUX IN3 (+)
AUX IN4 (+)
AUX IN5 (+)
MCR OUT (+)
AUX OUT (+)
Key Pin
A
C
E
H
K
M
P
S
U
B
D
F
J
L
N
R
T
V
RPI IN (-)
AUX IN1/MFDBK (-)
AUX IN2 (-)
AUX IN3 (-)
AUX IN4 (-)
AUX IN5 (-)
MCR OUT (-)
AUX OUT (-)
Not Used
