7–22 Configuration: Scanner Control, Primary Match Table, Discrete I/O
Publication 2755-833

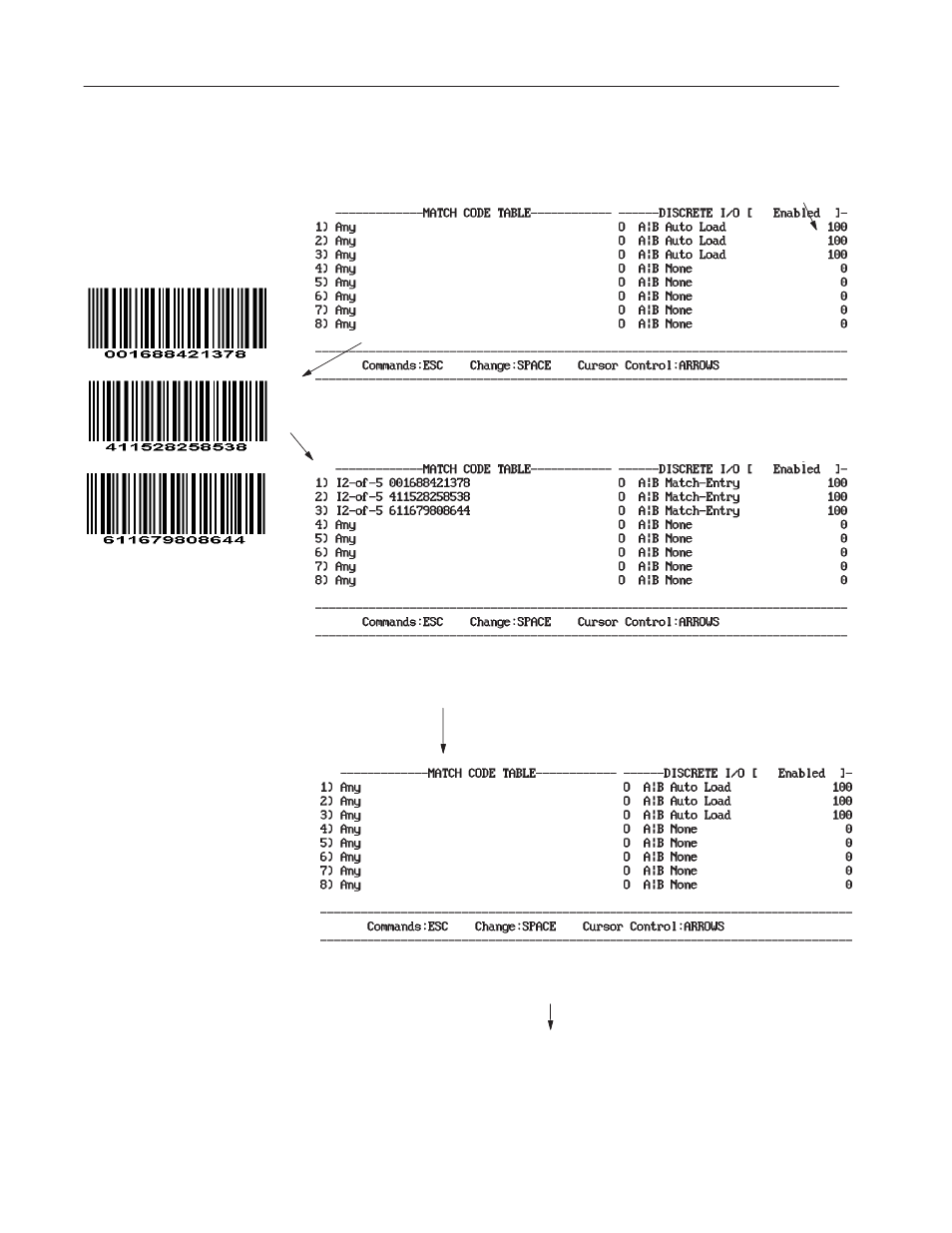

Figure 7.3 AutoLoad using System Restart
AutoLoad Configuration at System Restart
Ready for Next AutoLoad (using System Restart)
(Saved configuration)
First Valid Package Read
After System Restart
Notes: AutoLoad is set for Outputs 1, 2, and 3 and applies to match code entries 1, 2, and 3.
Symbols/package parameter is set to 3.
System Restart
Notes:
Output condition changes from AutoLoad to Match Entry for Outputs 1, 2, and 3.
Bar code data loaded into match code table for entries 1,2 and 3.
Notes: Table is restored to saved configuration
Data cleared from primary match code table for entries 1, 2, and 3.
Output duration must be
set for outputs and LEDs to operate.
No new data scanned
The AutoLoad condition for outputs 1, 2, and 3 is still saved.
Output conditions change from Match Entry to AutoLoad for Outputs 1, 2, and 3.
