Linking Menu and Application Screens
This chapter describes how to link the application screens so that an operator
is presented with a logical flow of information.
Section Page
Linking Application Screens 12–1
Linking Menu Screens 12–2
Screen Linking Guidelines 12–2
Application Screen Linking Function Keys 12–3
Menu and Sub-Menu Linkage Display 12–3
Linking a Menu 12–4
Linking Example 12–5
After you have developed all of the screens necessary for an application, you
need to decide how to link them. It is very helpful to create a flowchart of
the screens to use as a map before you begin to define the links.
The [PREV] and [NEXT] keys of the DTAM Plus or DTAM Micro use the
linking information to move between screens. Not all links need to have a
“next” and “previous” screen. A screen link may create a two-way or
one-way relationship.

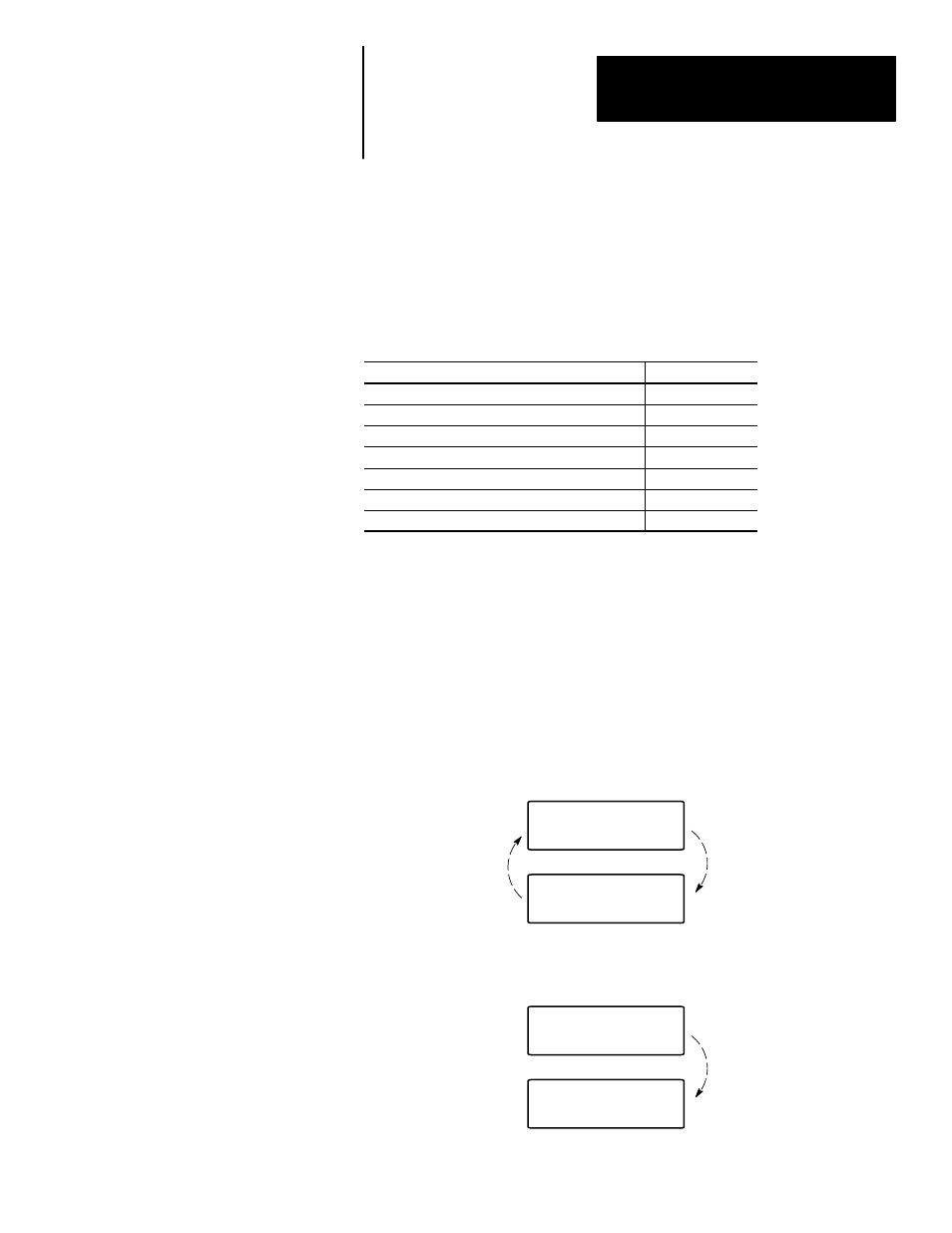

Two-way links utilize a Link function:
Screen #20
Screen #30
[NEXT] selected [PREV] selected
One-way links only utilize a Goto function:
Screen #20
Screen #30
[NEXT] selected
Chapter Objectives
Linking Application Screens
