Chapter 11
Creating Bar Graph Screens
11–2

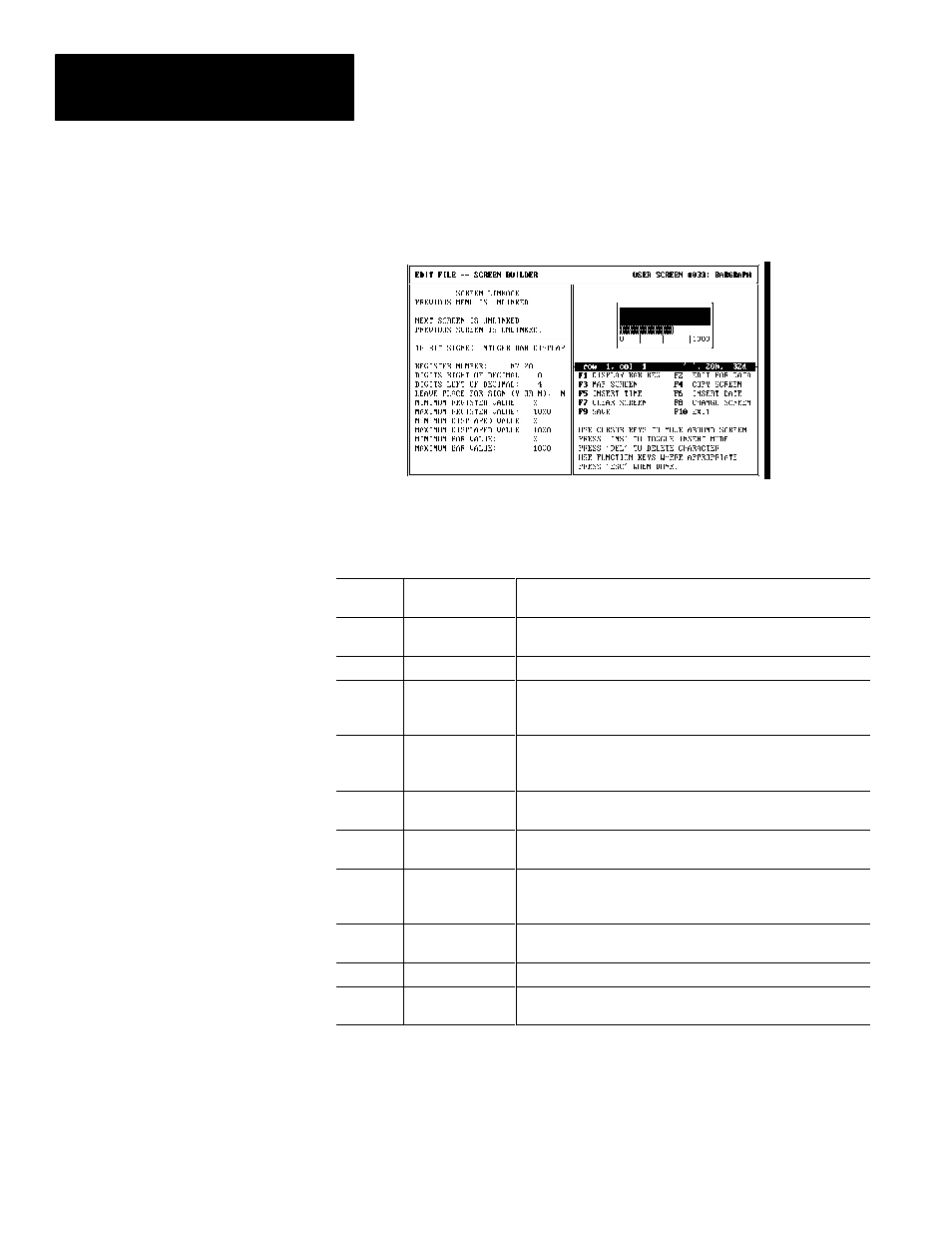

The bar graph screen is only available on the DTAM Plus. The bar graph
Screen Builder looks like this:
Bar Graph Screen Builder Function Keys
Function Function
Key Designation Function
[F1] DISPLAY BAR
REG
Inserts data display field at the cursor point. Accesses the display
register information.
[F2] EDIT BAR DATA Access data register and bar graph display information.
[F3] MAP SCREEN Accesses screen mapping functions that link application screens
in a logical sequence.
Link screens only after all of the screens have been created.
[F4] COPY SCREEN Copies an existing screen to or from the current display window.
Both the source and destination screens must be of the same type
(Bar Graph screens).
[F5] INSERT TIME Inserts the time into the display. Only available with a DTAM Plus
having the Calendar/Clock option.
[F6] INSERT DATE Inserts the date into the display. Only available with a DTAM Plus
having the Calendar/Clock option.
[F7] CLEAR SCREEN Clears the current screen. You have the option of clearing only the
screen text or deleting the entire screen including any linking you
may have established.
[F8] CHANGE
SCREEN
Selects another operator screen.
[F9] SAVE Saves the application without exiting the Screen Builder function.
[F10] EXIT Prompts you to save the application to the current file and exits the
DPS software.
Bar Graph
Screen Builder
