DTAM Plus Background Monitor
15-4
3. Select one of the four background registers.
You are prompted for a data type:
Select this data type: To:
Bit Monitor each bit in the register for an alarm condition. There
can be one alarm screen for each bit in the register.
16 Bit Signed Integer Monitor an integer register and trigger an alarm screen when
the register data exceeds preset limits.
16 Bit BCD Monitor a BCD register and trigger an alarm screen when the
register data exceeds preset limits.
4. Select a data type:
You are prompted for information specific to the data type.

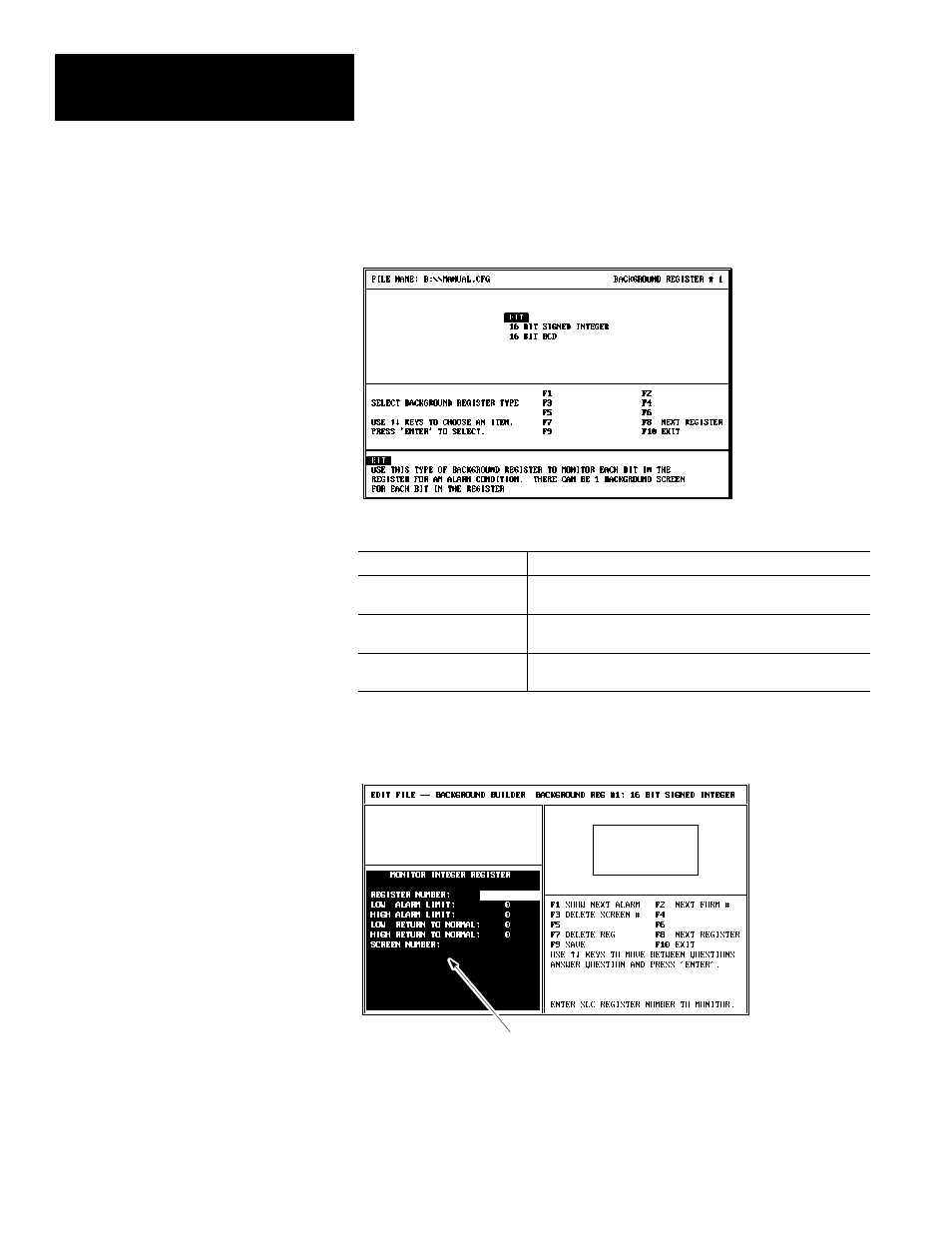

16 Bit Integer Shown
5. Enter the register data. Refer to the next section Background Monitor
Register Selections.
6. Press [Esc] to save the register data and press [F9] to save the screen.
