Chapter 15
DTAM Plus Background Monitor
15-5
When assigning a background register, you must provide register information
that determines the address and data limits.
Bit

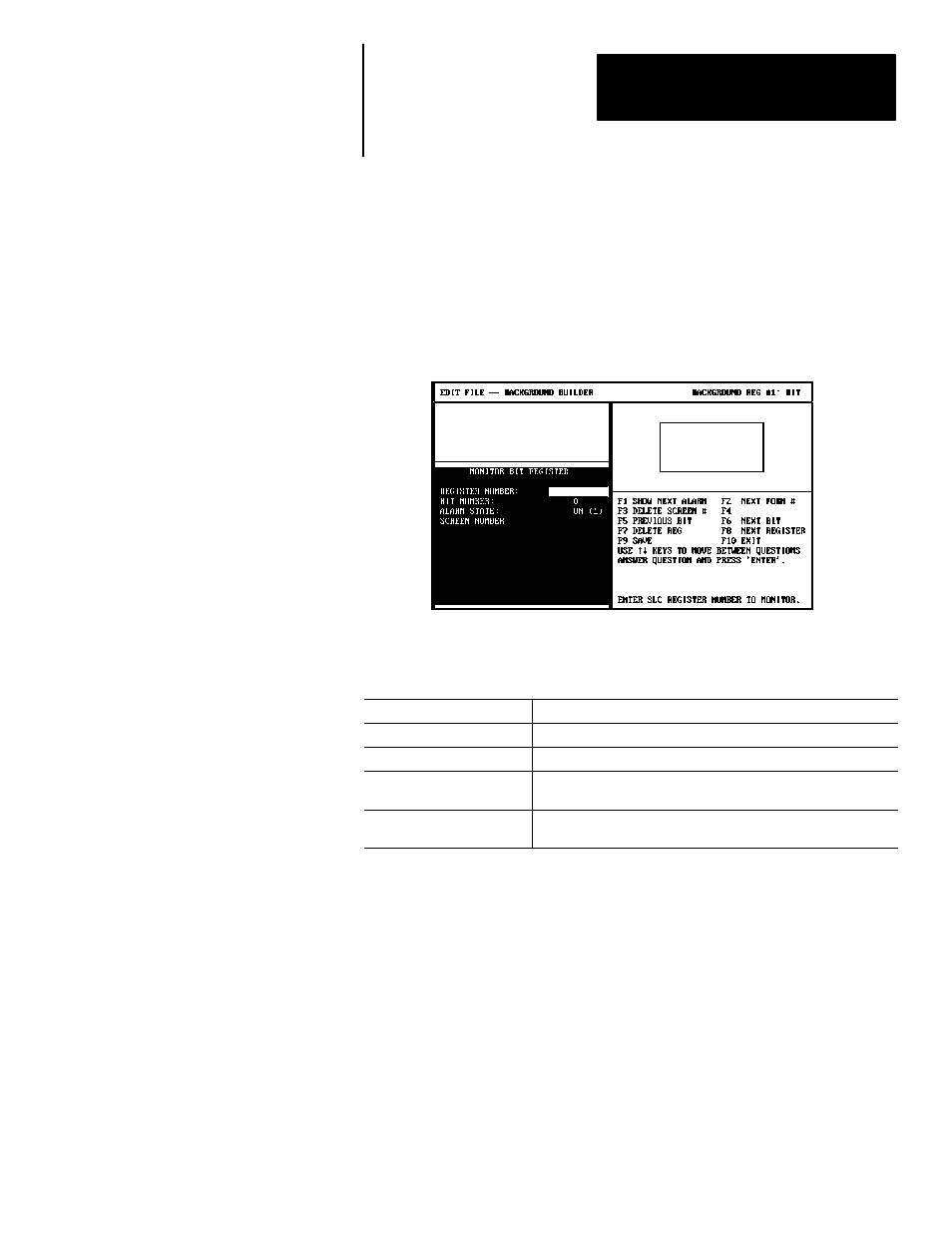

The register information for a Bit background register is shown below.
Parameter Description
Register Number The PLC or SLC register number you want to monitor.
Bit Number The bit number of the register to monitor.
Alarm State The bit status that will indicate an alarm state. The bit status may be
either 1 (on) or 0 (off).
Screen Number The number of the screen to display when the status of the
monitored bit indicates an alarm state.
Background Monitor
Register Selections
