Rockwell Automation Publication 7760-IN001

B-EN-P - June 2013

3

Chapter

1

Equipment Overview

Overview

The OneGear™ MV SMC controller family consists of the following
configurations:

Bul. 7760 – Retrofit Controller
Bul. 7761 – OEM Controller (converter cabinet)
Bul. 7762 – Complete Controller utilizing vacuum contactors
Bul. 7763 – Complete Controller utilizing vacuum breakers.

Figure 1

shows an overview of a typical Bulletin 7762/7763 controller complete

with incoming line unit. Refer to project documentation for specific
configuration details and dimensions.

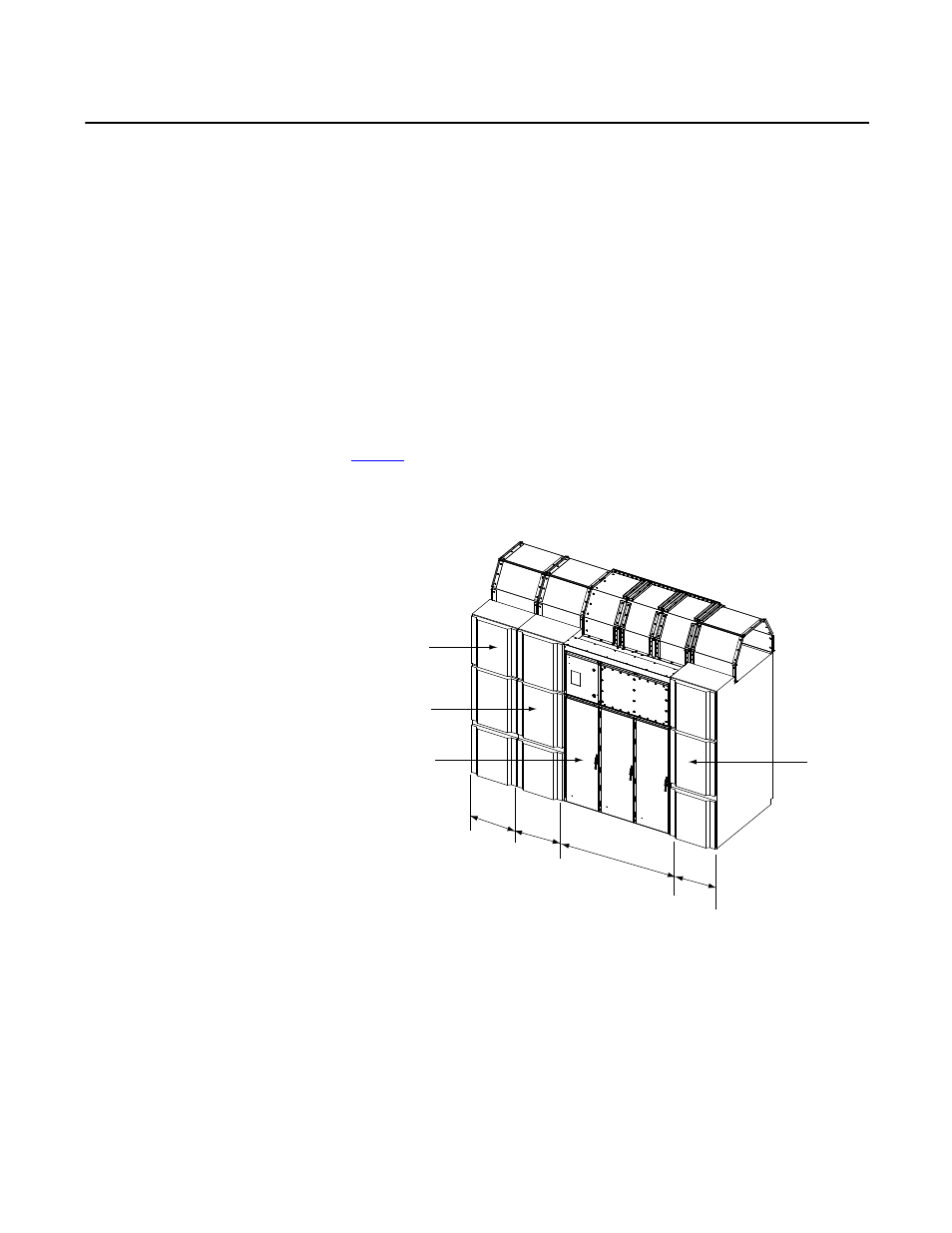

Figure 1 - Typical Bulletin 7762/7763 OneGear MC SMC Controller

The Incoming Line Cabinet, Main Cabinet, and Bypass Cabinet are switch-gear
cabinets and are referred to as such throughout the remainder of this document.

All cabinets are shipped individually. This document describes the handling and
installation of the converter cabinet and the interconnections with the adjacent
switchgear cabinets.

Installation and connection instructions for switchgear cabinets, that are adjacent
to each other is covered by the respective manufacturer’s documentation and is
not included in this document.

Incoming Line Unit

Main Unit

Converter Cabinet

Bypass Unit

650 mm

650 mm

1500 mm

650 mm
