14 Rockwell Automation Publication 7760-IN001
B-EN-P - June 2013
Chapter 3 Equipment Installation
Install Converter Roll-out
Module Ramp A metal ramp assembly is provided that is required for the safe removal and
installation of the converter roll-out modules. The ramp has tabs that locate into
slots of the cabinetry (
Figure 9 ).

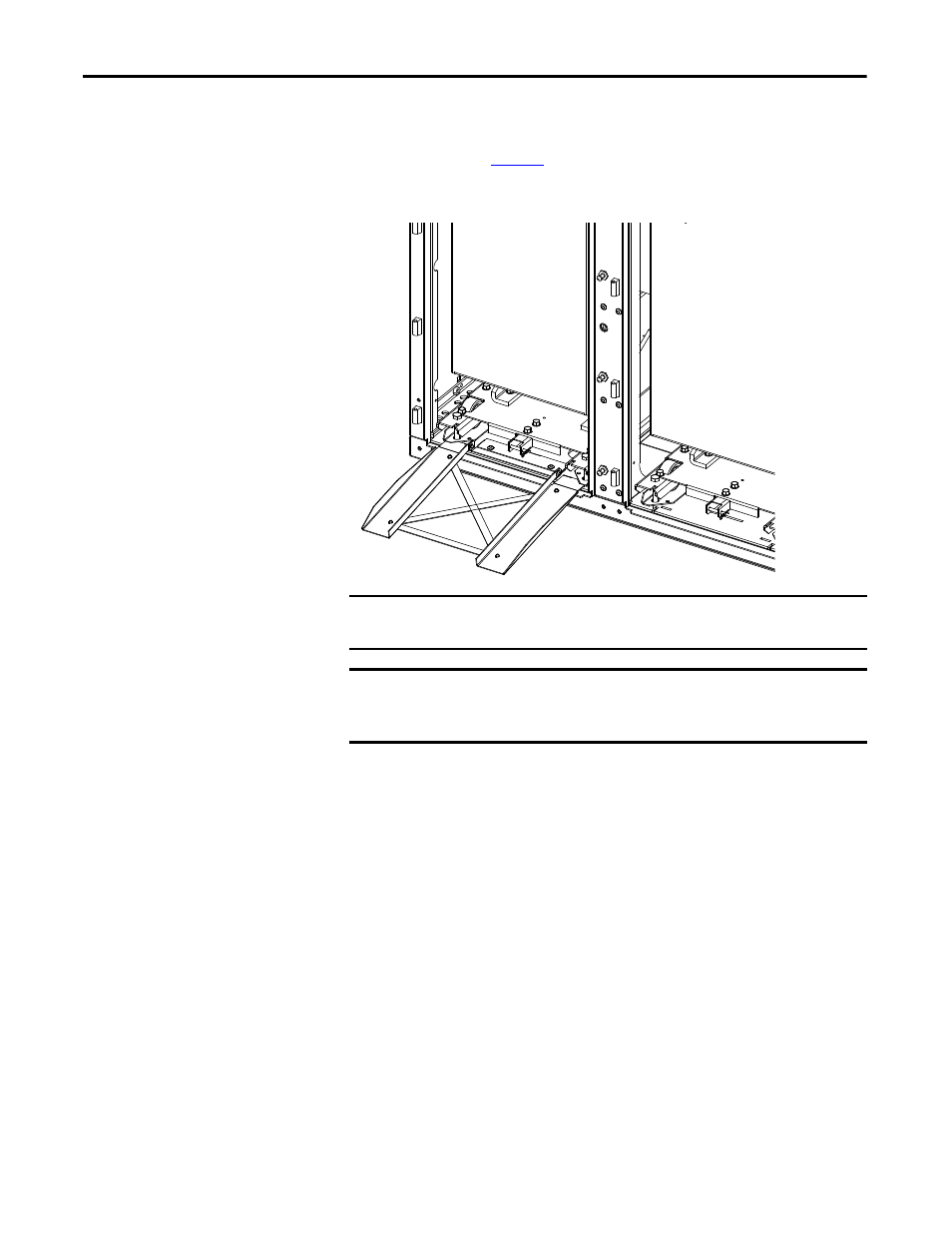

Figure 9 - Insertion of Ramp for Roll-out Converter Module
IMPORTANT A clear space of 1500 mm is required in front of the equipment to facilitate
removal of the converter modules is required.
IMPORTANT This method of removing the roll-out converter modules is only valid if the
equipment is installed on a level floor. If the equipment is installed on an
elevated platform, alternate means are required. Consult factory for details.
