Chapter 3
Equipment Installation

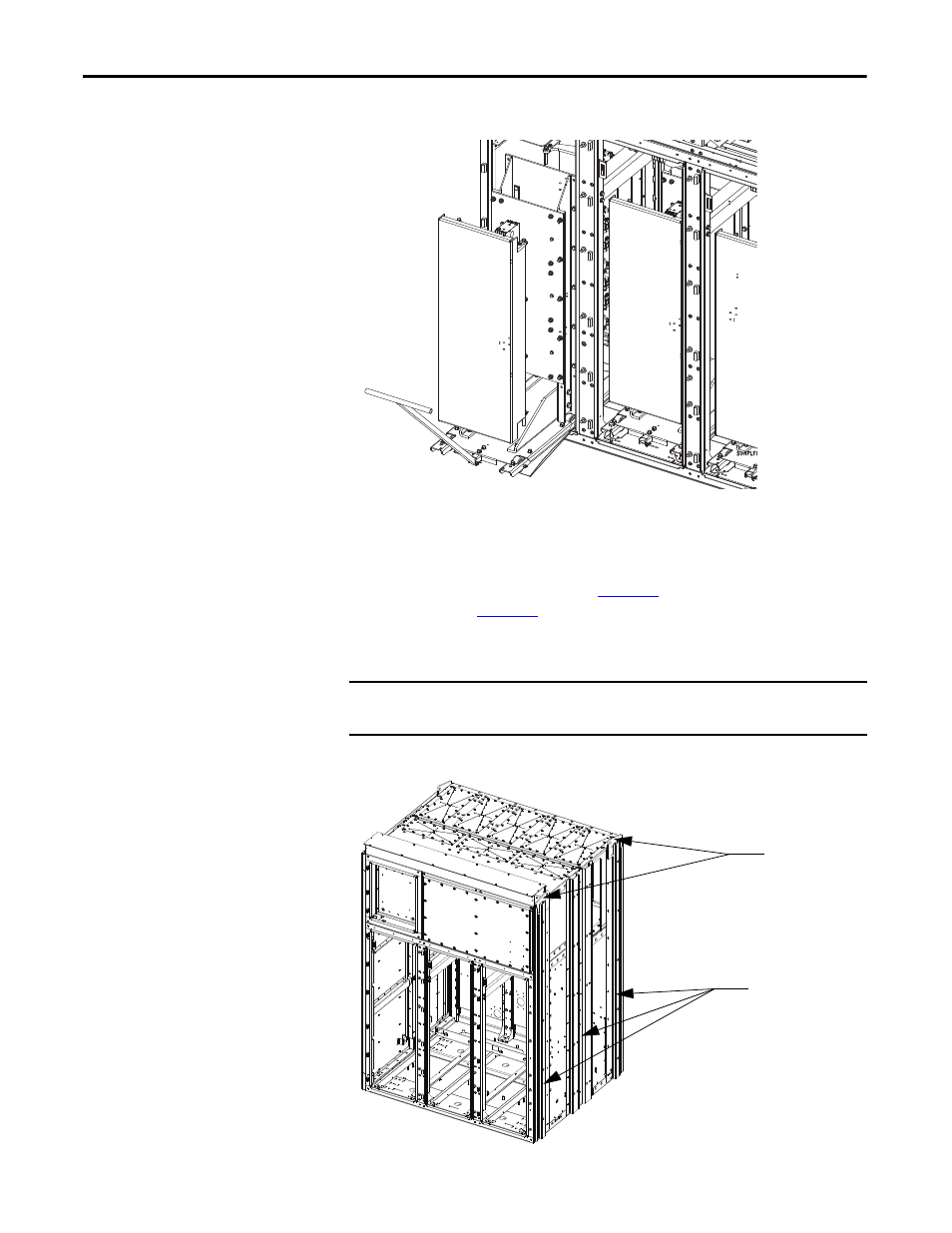

Figure 11 - Converter Module being Extracted from Enclosure
Removal of Lifting Provisions
Once it has been determined that overhead lifting of the controller is no longer
needed, the lifting components may be removed. There are 6 (six) vertical
channels, 4 (four) external lifting lugs (
) and 4 (four) internal lug
mounting brackets (
). Rear access is required to remove the two internal
lug mounting brackets at the rear of the structure. Care must be taken not to drop
the internal brackets into the cabinet while removing them.
Figure 12 - External Lifting Components
IMPORTANT
The channels and external lifting lugs must be removed prior to mating to any
adjacent switchgear components.
External Lifting Lugs
Vertical Lifting Channels
