25
Equipment Installation Chapter 3
On the left side (line side) of the converter cabinet, install (3) bus links as
indicated in
Figure 22 .
Fasten the bus links to the Converter Bus using the supplied M12 hardware.
Fasten the bus links to the back insulators using the supplied M10 hardware.
Torque all connections to the values indicated on
page 37 . DO NOT OVER
TIGHTEN .
On the right side (load side) of the converter cabinet ( Figure 23 ), install the top
and middle bus links first. DO NOT install lower link yet.

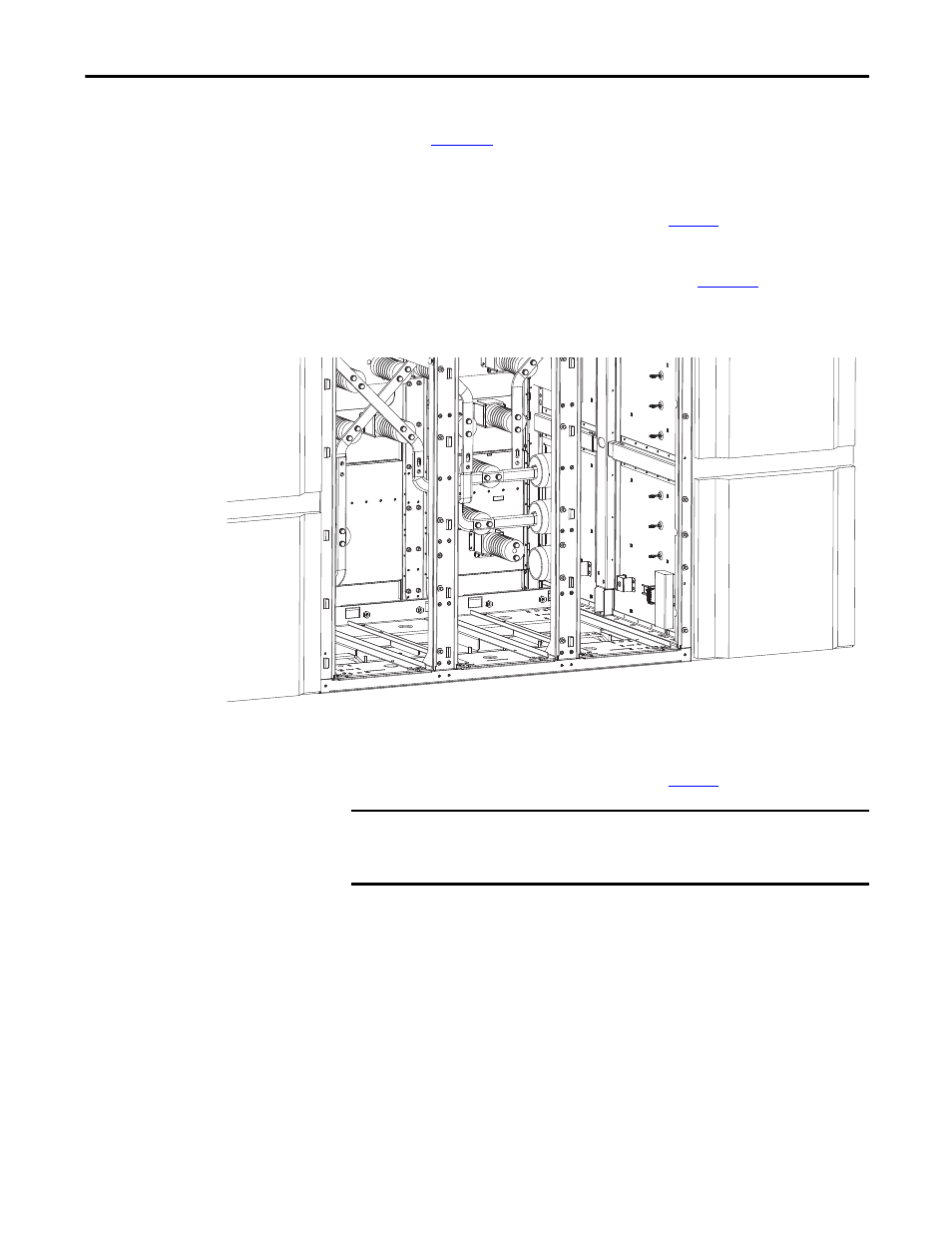

Figure 23 - Installation of Lower Bus Link, Load Side
Fasten the bus links to the Converter Bus using the supplied M12 hardware.
Fasten the bus links to the back insulators using the supplied M10 hardware.
Torque all connections to the values indicated on
page 37 .
IMPORTANT Two clear barriers are supplied to cover the top two bus links. Install the clear
barrier over each bus link (Figure). The longer barrier is mounted over the
upper bus link. Once installed, the bottom bus link may be installed.
