Chapter 3 Equipment Installation

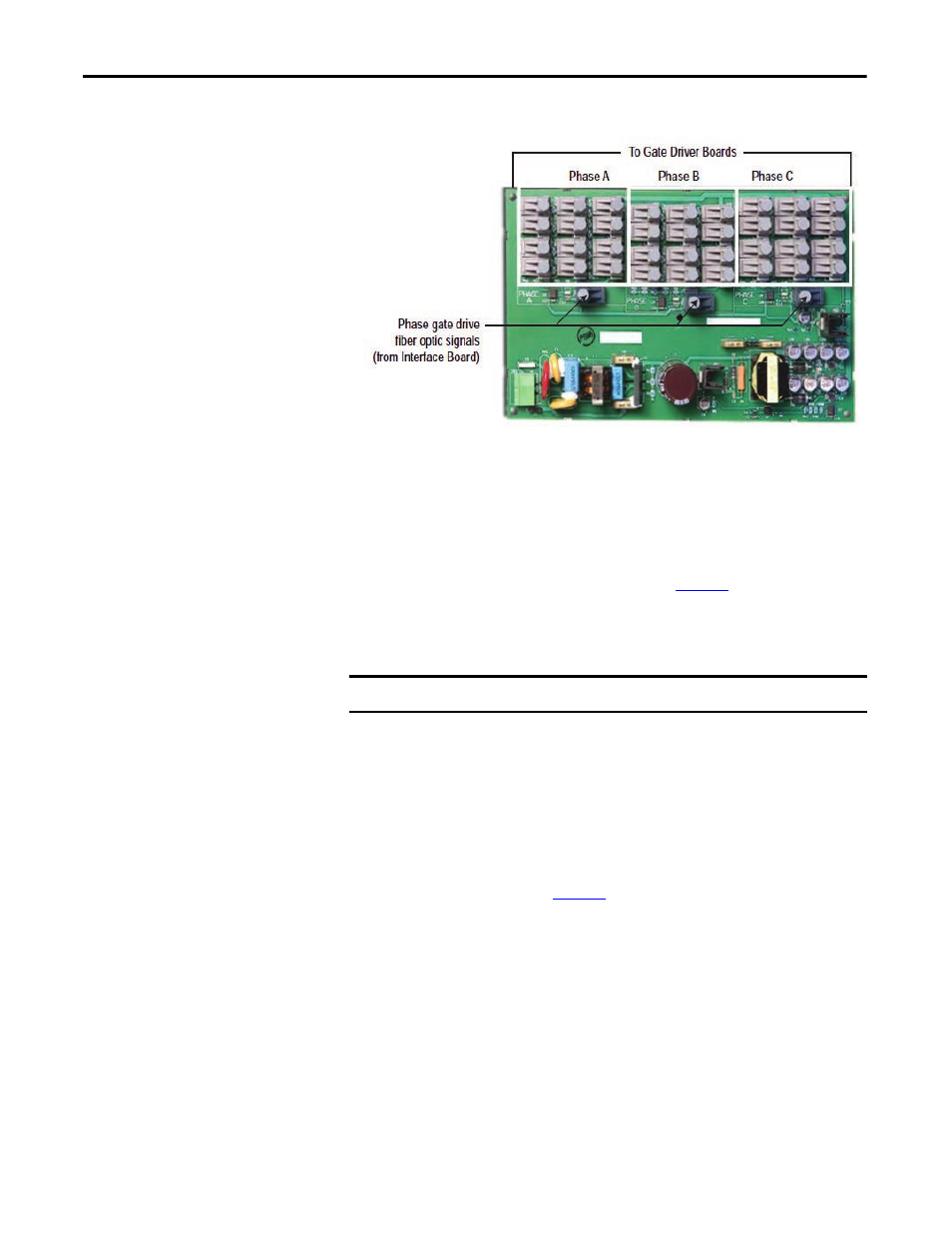

Figure 6 - Fiber Optic Multiplexer Board
Disconnect Flexible Links
At the top of each roll-out converter module, two flexible links are provided to
connect power to the converter module. A 13 mm hex tool is needed to remove
the hardware at the upper end of the flexible link. The location of the top flexible
link connections to the converter bus are shown in
Figure 7 .
The cable from the rear of the cart must be freed from the clamps that secure it to
the structure.
Disconnect Current Loop Wires
Power for the gate driver circuit boards is provided by current transformers that
derive power from a low voltage loop of wire that is visible at the front of the roll-
out converter modules. The current loop wire terminations are accessible at the
front and can be disconnected at terminal blocks located above each of the
converter modules, as shown in
Figure 7 .
IMPORTANT The cable must be re-attached to these clamps when the cart is re-installed.
