13
Equipment Installation Chapter 3
Disconnect Mechanical Fastening of Converter Modules
The three roll-out converter modules are mechanically attached within the
cabinet by hardware at the top and bottom. A 13 mm hex tool is needed to
remove the two sets of hardware (
Figure 7 ) at the top of the module.
At the front bottom of each module, on its sheet metal base, two bolts are used to
secure the module to the cabinet. Removal of the bolts (using 17 mm hex tool) is
required to extract the module from the cabinet, as shown in
Figure 7 and
Figure 8 .

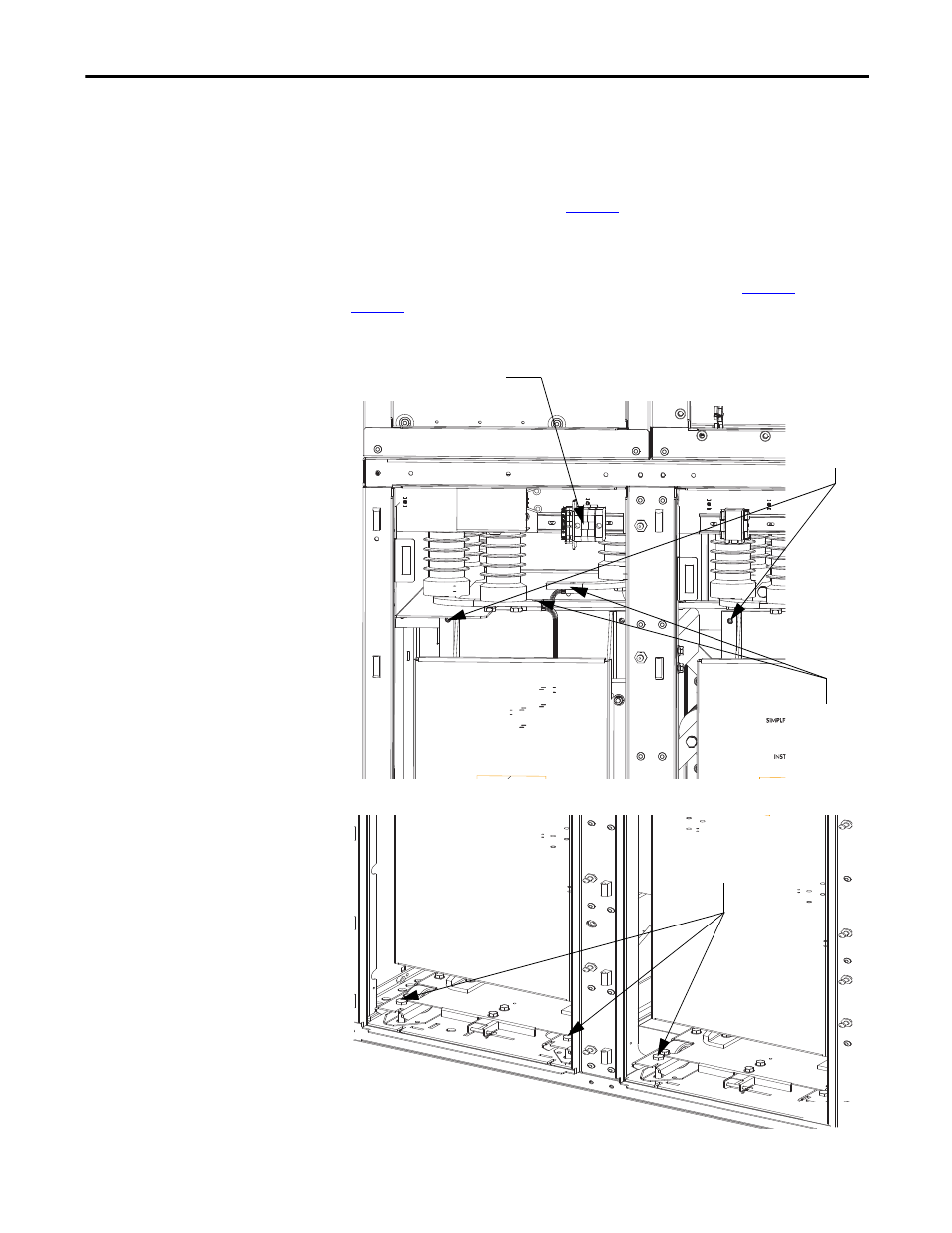

Figure 7 - Removal of Fasteners at Top of Converter Module
Figure 8 - Removal of Fasteners at Bottom of Converter Module
Terminal Block for Current Loop
Top Bolt
Location for
Mechanical
Attachment of
Roll-out
Converter
Modules
Fastener
Location for
Flexible
Power
Connections
Fastener location for
anchoring roll-out Converter
Module Base to enclosure
