Rockwell Automation 7763 OneGear MV SMC Flex Solid-State Motor Controller - Manual (Page 35)

Rockwell Automation Publication 7760-IN001
B-EN-P - June 2013
33
OneGear Standard Plenum Chapter 4

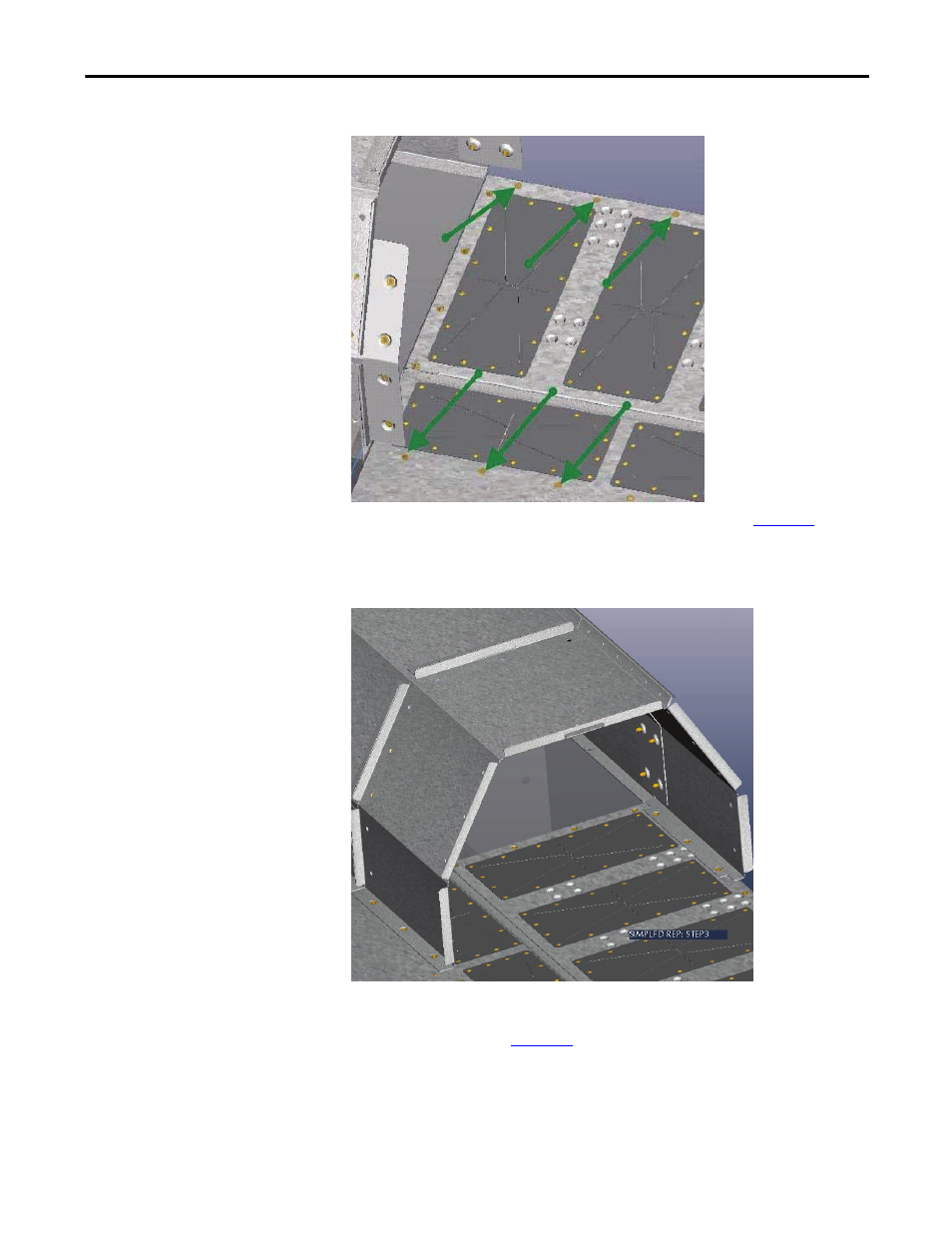

Figure 36 - Mounting location for front and rear assembly
8. Take the front and rear assembly, position it as shown in
Figure 37 and use
the M8 hardware (M8 HHCS, 28 mm (1.125”) OD flat washers and lock
washers) to fasten it.
Figure 37 - Front and rear assembly mounted on top of cabinet
9. Attach the outer side bracket (81023-075-02) at the rear and front using
the M8 hardware (M8 HHCS, 19 mm (0.75”) OD flat washers and lock
washers). Refer to
Figure 38 .
