36 Rockwell Automation Publication 7760-IN001
B-EN-P - June 2013
Chapter 4 OneGear Standard Plenum

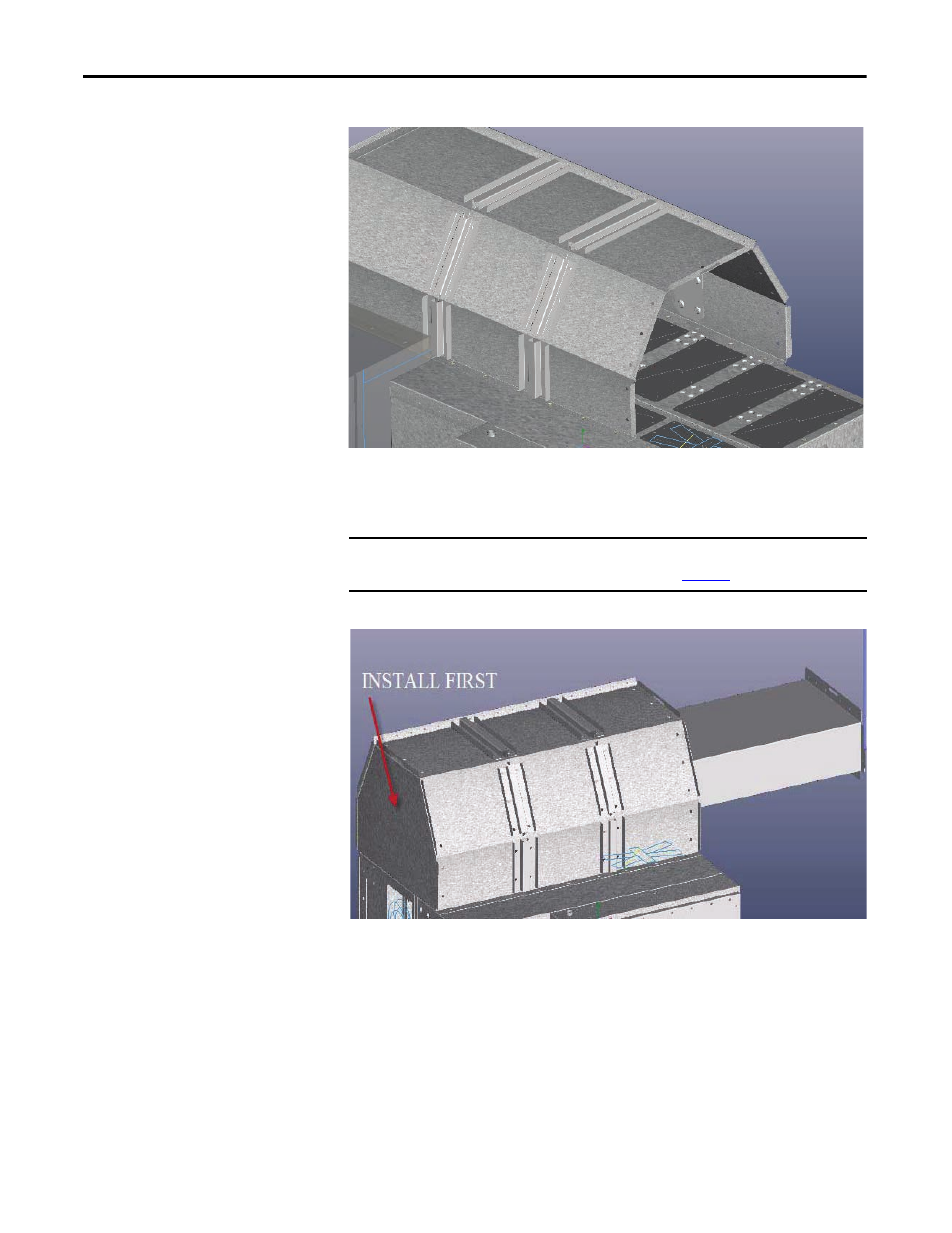

Figure 41 - Two sections of the OneGear Plenum installed
18. If a Bulletin 7761 product is ordered, an end plate (81020-998) and
extension with screen will be required (81021-282-52, 81021-637-02).
Install the end plate with M8 hardware.
Figure 42 - OneGear Unit on the end (7761)
19. Attached the extension to the end plate using M6 self-tapping screws.
Subsequent extensions are attached using M8 hardware.
For Bulletin 7760, 7762 and 7763 equipment, switchgear is provided on both
sides of the SMC. Therefore, steps 4-12 will need to be repeated using the
switchgear front and rear assembly.
IMPORTANT If an end plate is ordered with no exit hole, it must be installed first or it will be
very difficult to attach to the top plate, see
Figure 42 .
