Chapter 3 Equipment Installation
Remove Medium Voltage Front Cover
Access to the medium voltage area above the middle and right doors is attained
by removing the bolts that hold the cover in place (
Figure 4 ).

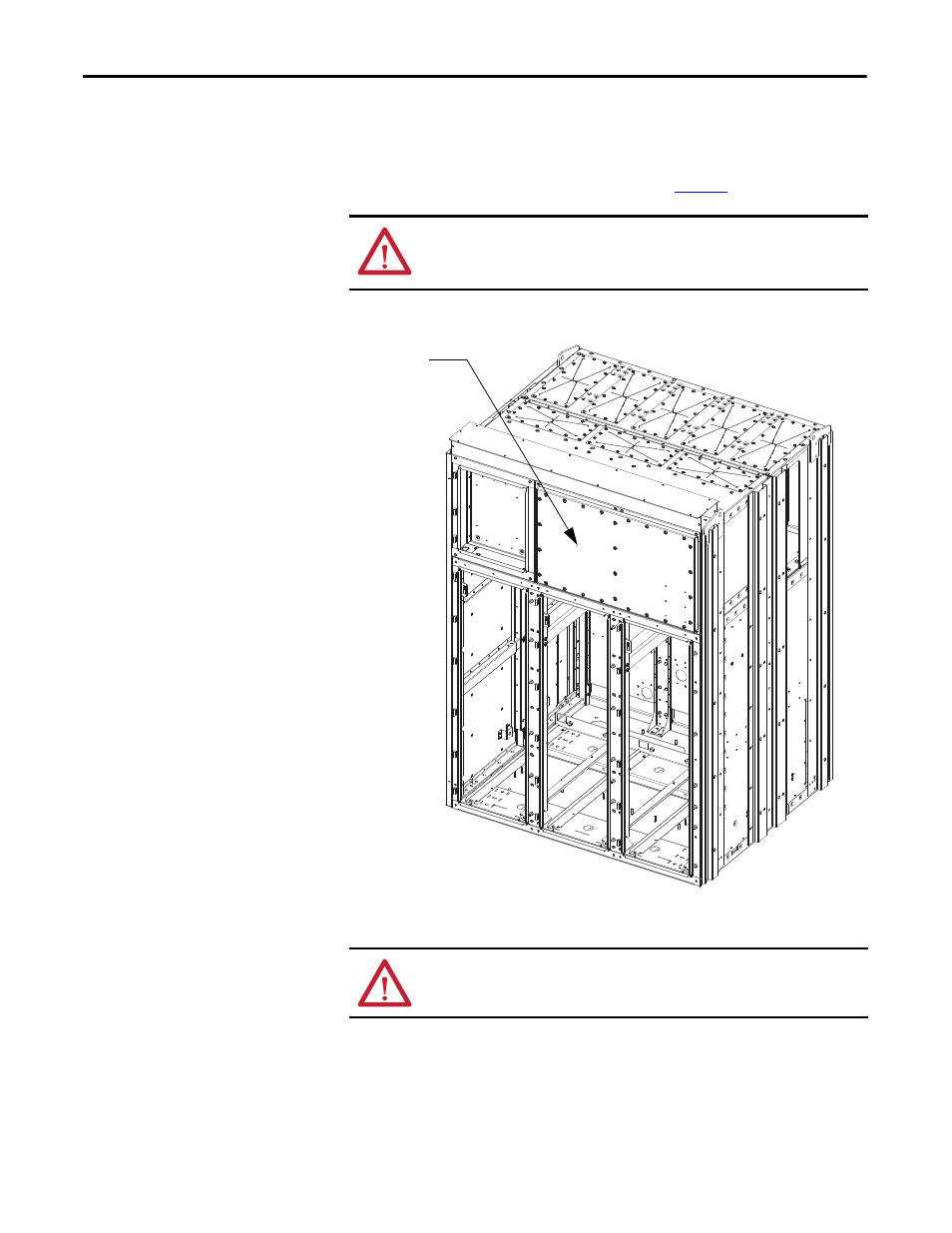

Figure 4 - Medium Voltage Front Cover Identification
Disconnect Fiber Optic Cables
to Converter Roll-out
Modules
To disconnect the fiber optic cables on each of the converter modules, it is
necessary to remove the Front Medium Voltage front cover located over the
middle and right medium voltage doors. Removal of this panel provides access to
the multi-channel fiber optic circuit board.
ATTENTION: Ensure that power to the unit has been shut down and locked out
before accessing medium voltage areas. Failure to do so may result in severe
injury or death.
Medium Voltage
Front Cover
ATTENTION: Fiber optic cables can be damaged by bending the cables with a
radius of less than 50 mm (2 in.).
