Rockwell Automation Publication 7760-IN001
B-EN-P - June 2013
19
Equipment Installation Chapter 3
Without Back Access
If no back access to the equipment is available, the Horizontal Power Bus
Bushings must be installed and fastened on the respective switchgear cabinets
prior to connecting with the converter cabinet. The switchgear cabinets must be
first installed with the front, flush with the converter cabinet, then transversally
slid into place such that the bushings clear the associated openings in the
Converter Cabinet Main Bus Module.
Inter-Cabinet Connections This section describes the electrical and mechanical connections between the
converter and the adjacent switchgear cabinets. For details regarding inter-
connections between two switchgear cabinets (e.g. Incoming Line Unit and
Bypass Unit), refer to the respective manufacturer’s instruction manuals.
Once the converter and adjacent switchgear cabinets are positioned next to each
other, ensure that both front flanges are flush (
Figure 16 ).

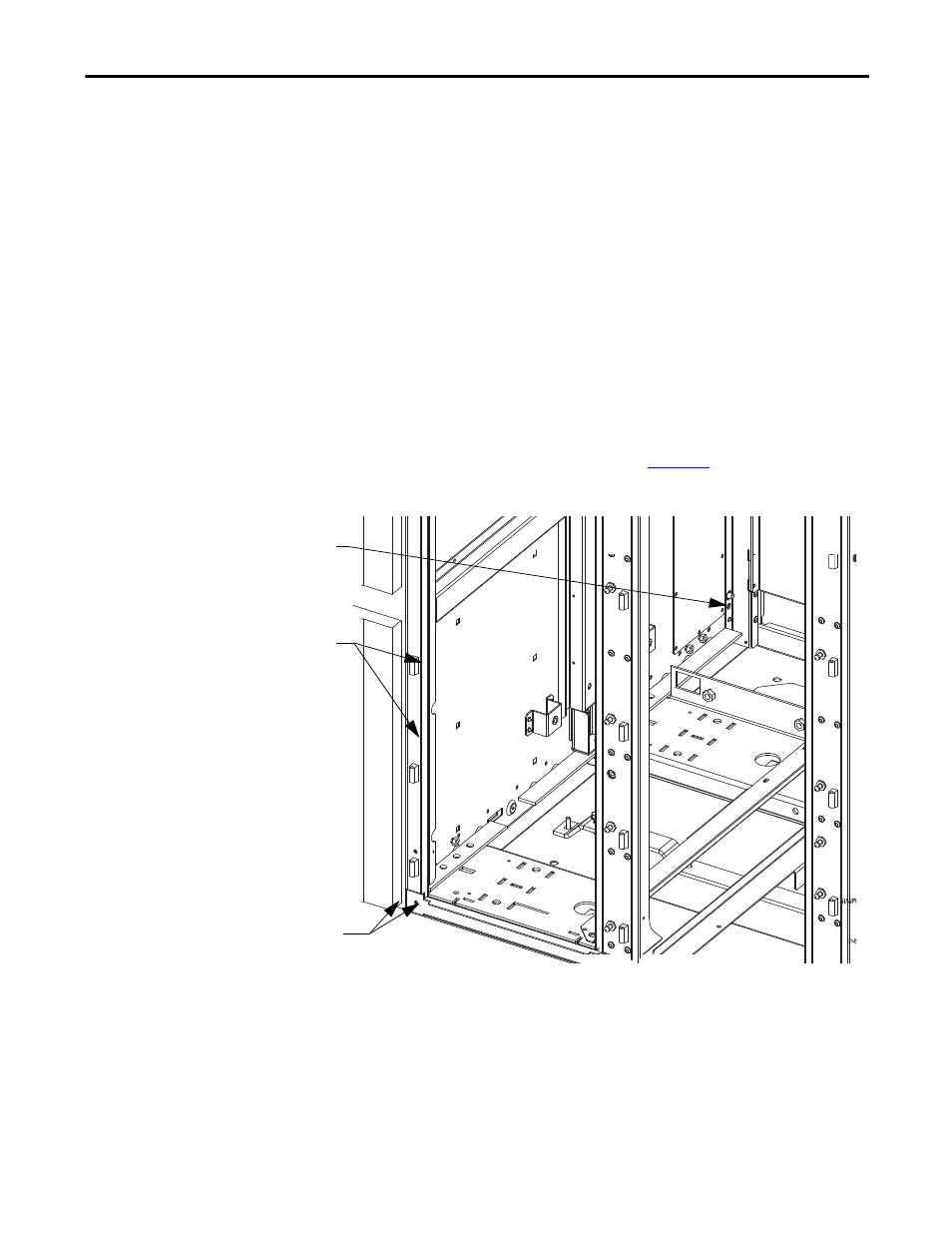

Figure 16 - SMC and Switchgear Cabinet Alignment
Rear Junction
Point
Front Flange Faces
Front Junction Points
(inside cabinet)
